Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

13 part groups · 2 illustrations

Illustrations

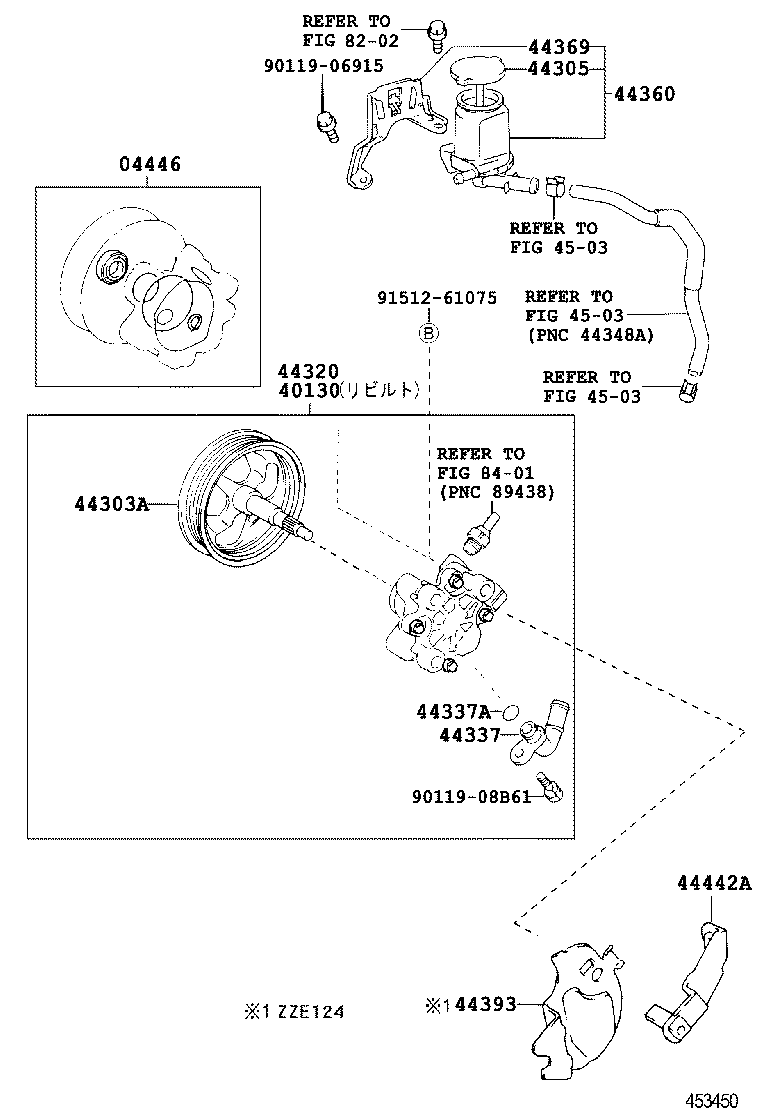

Figure 453449C 453449C 2001-01 → — Figure 453450C 453450C 2001-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369 Bracket, Oil Reservoir, NO.1
44393 Insulator, Power Steering Pump Heat
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
44443B Bracket, Vane Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
