Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

5 part groups · 3 illustrations

Illustrations

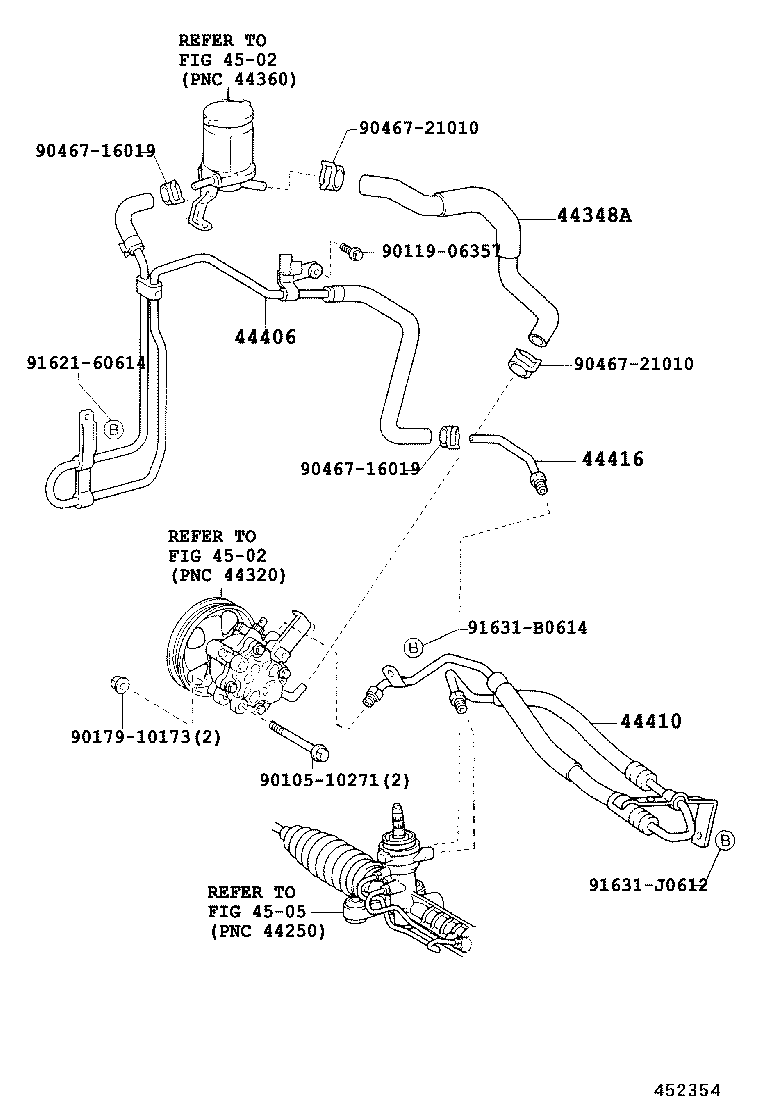

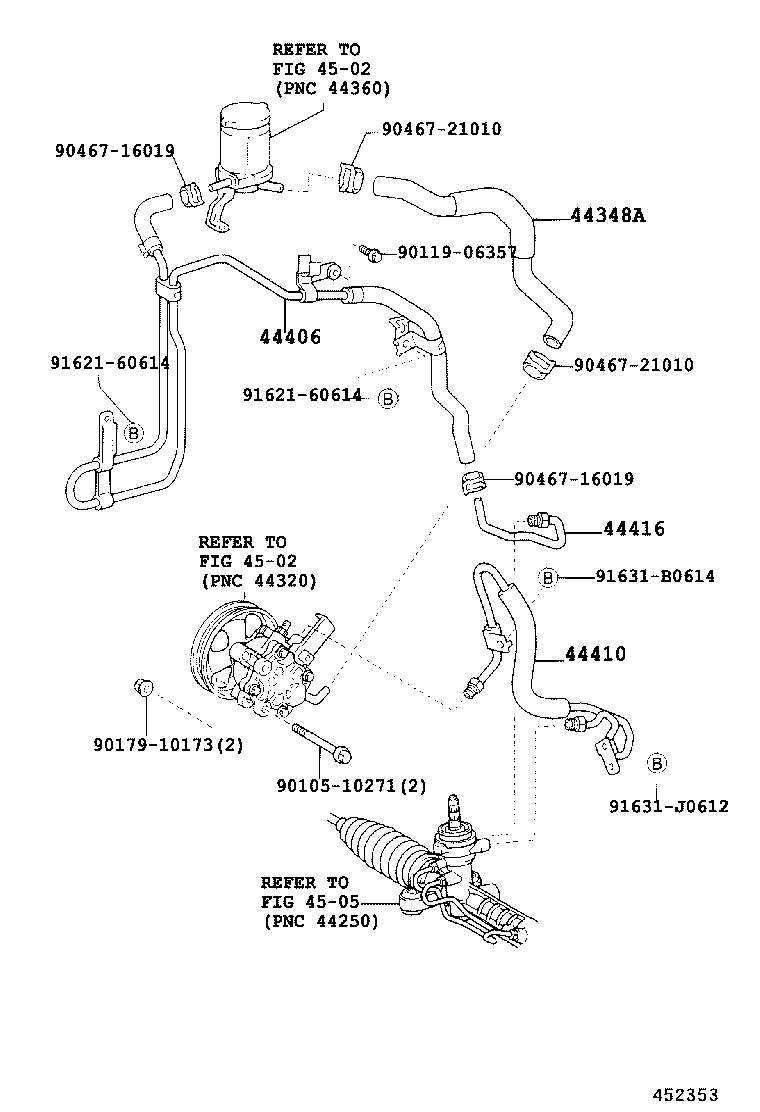

Figure 452352D 452352D 2001-01 → — Figure 452353C 452353C 2001-01 → — Figure 452354D 452354D 2002-09 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
