Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

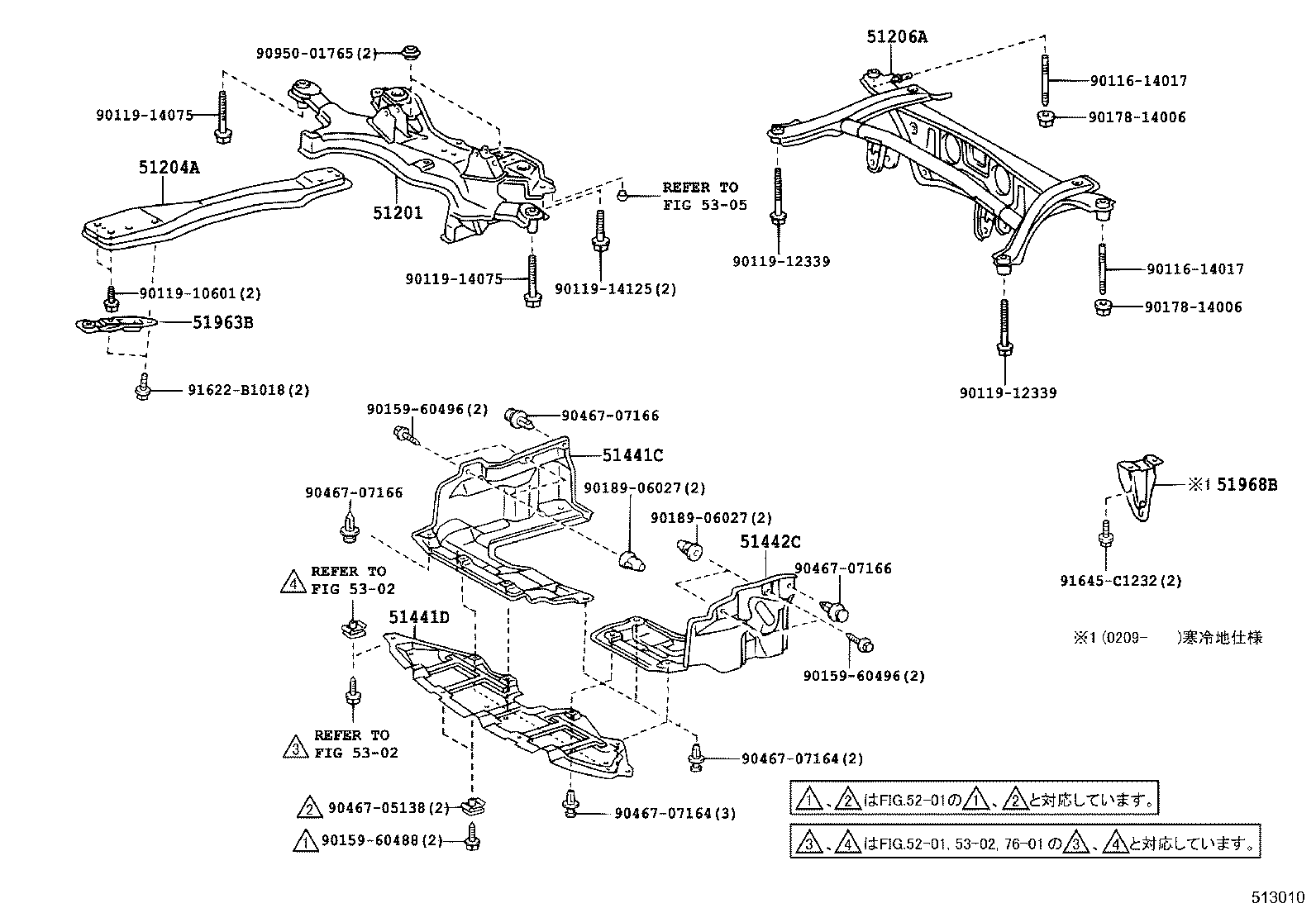

Figure 513009 513009 2001-01 → — Figure 513010 513010 2001-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442C Cover, Engine Under, LH
51963B Hook, Transport, Front RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
