Toyota Corolla Runx/Allex
2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan
Discontinued model
Data version 2007-04

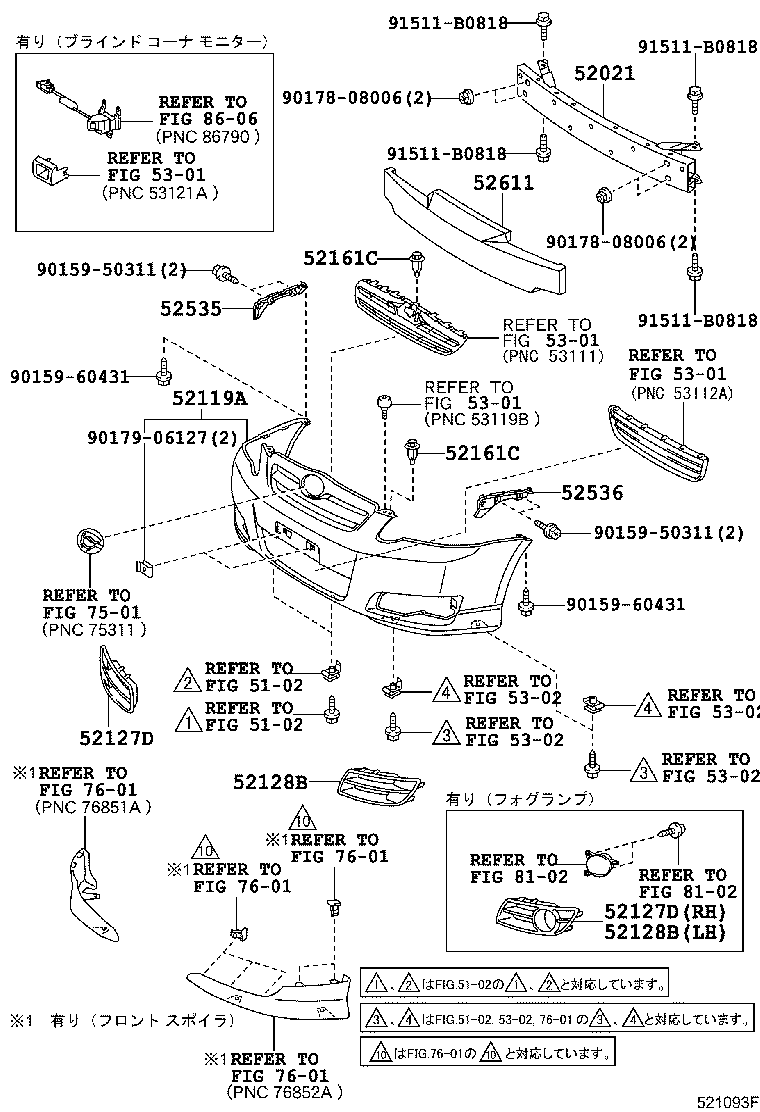

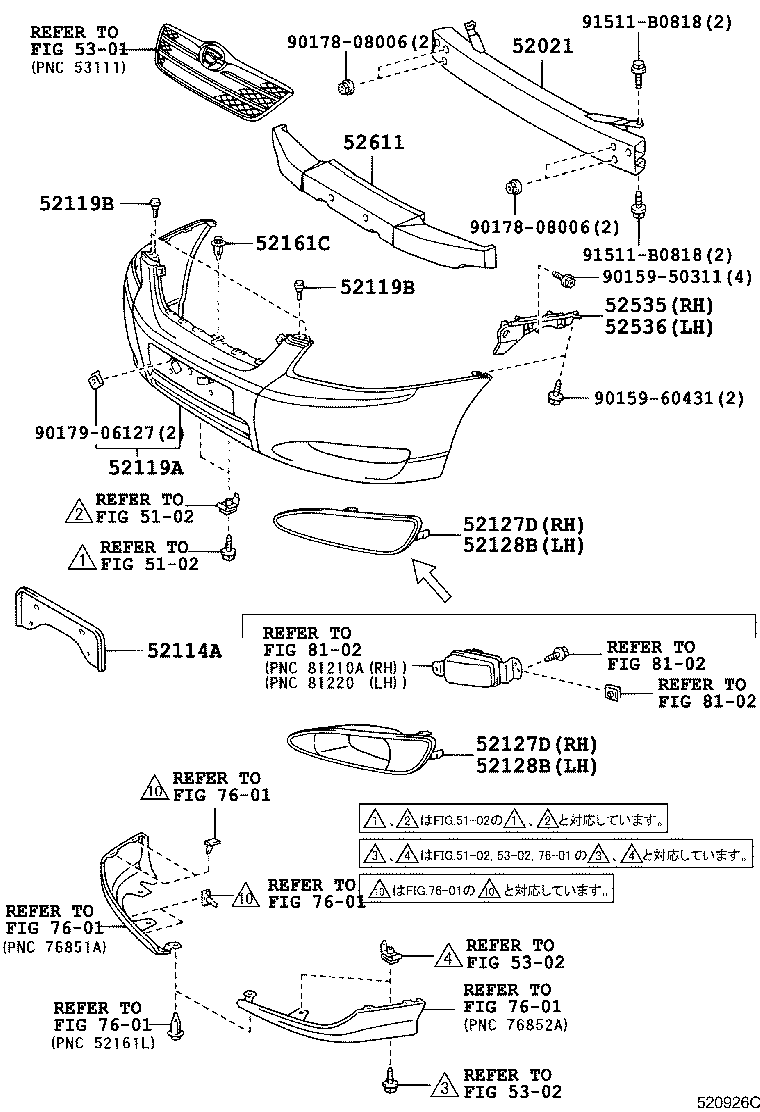

Front Bumper & Bumper Stay
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119B | Cover, Front Bumper Side(FOR GLLILE GUARD) |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
