Factory parts data · Europe

Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

531049 2001-01 → 2002-09

531383 2002-09 → 2004-04

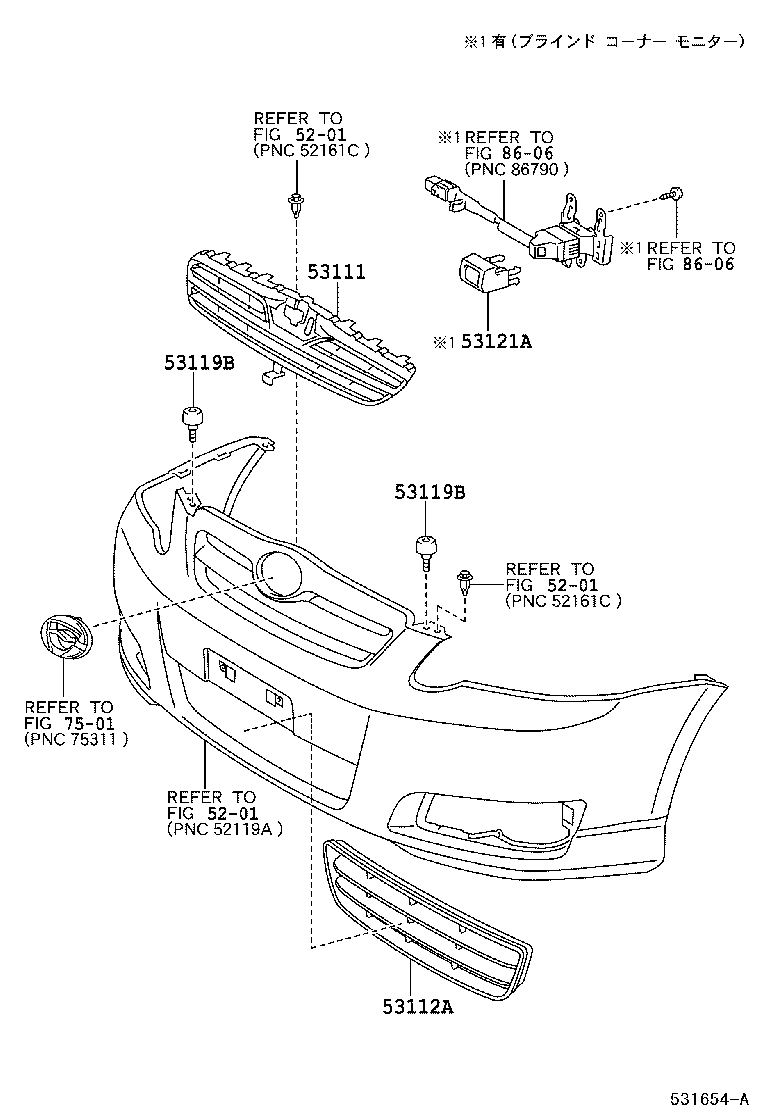

Figure 531654A

531654A 2004-04 → —

Part groups

PNC	Description
53111	Grille, Radiator
53112A	Grille, Radiator, Lower
53119B	Protector, Radiator Grille
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
