Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

30 part groups · 3 illustrations

Illustrations

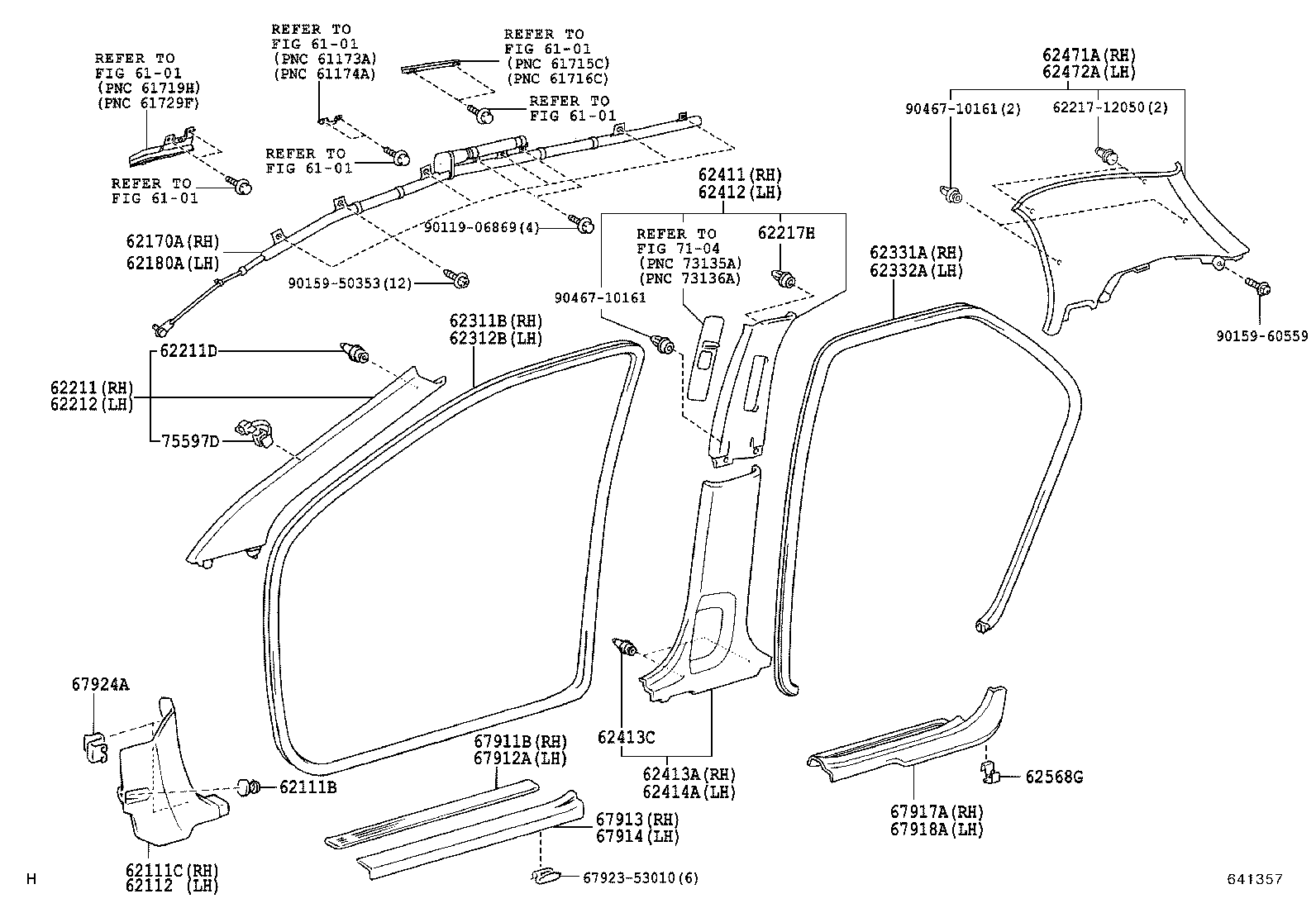

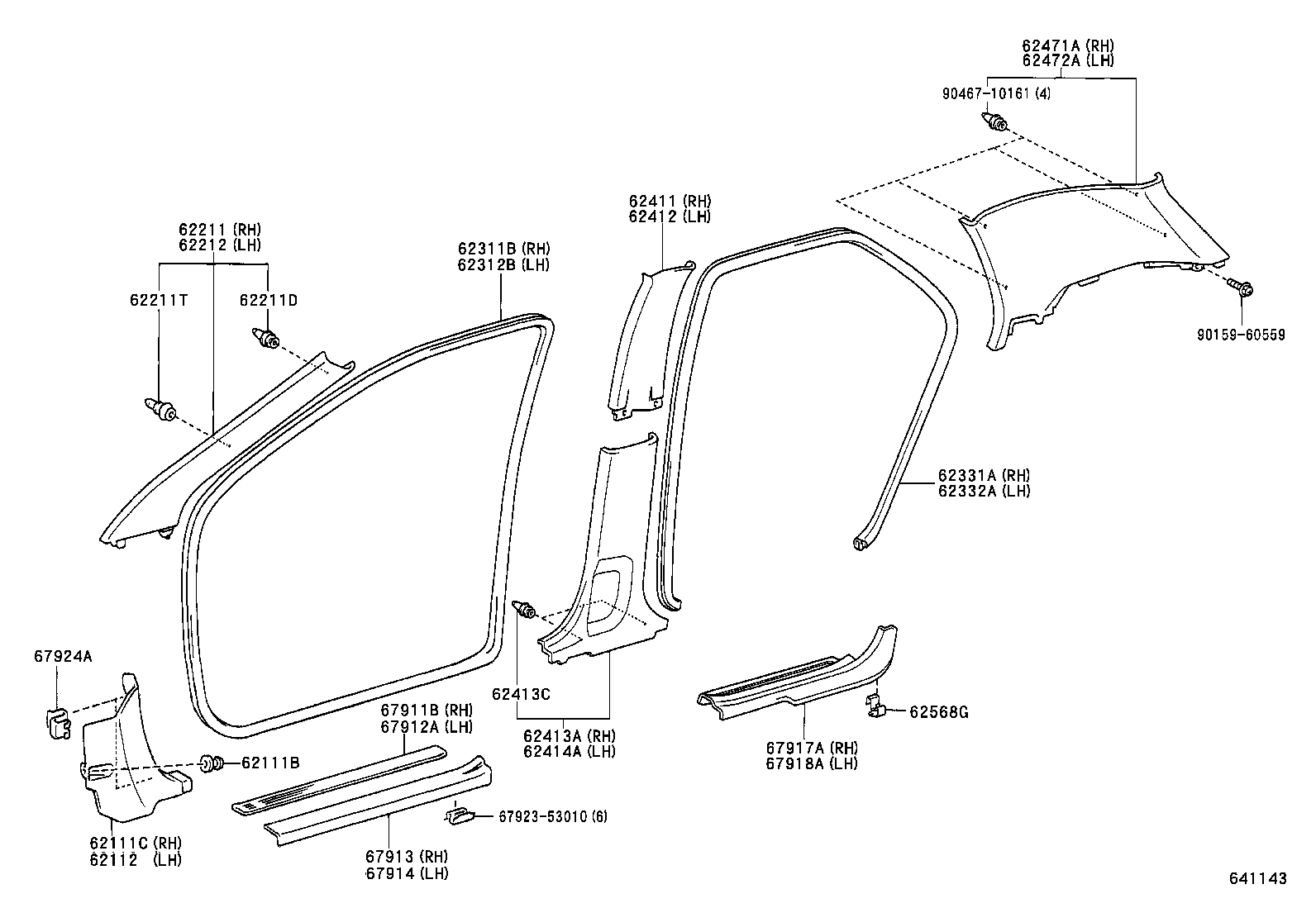

Figure 640867A 640867A 2001-01 → 2002-09 Figure 641143 641143 2002-09 → 2006-09 Figure 641357 641357 2004-04 → 2006-09

Part groups

PNCDescription
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62471A Garnish, Roof Side, Inner RH
62472A Garnish, Roof Side, Inner LH
62568G Clamp, Rocker Panel Inner Protector, NO.3
67911B Plate, Front Door Scuff, Outside, RH
67912A Plate, Front Door Scuff, Outside LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67924A Clamp, Door Scuff Plate, NO.2
75597D Clip, Roof Side Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
