Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 2 illustrations

Illustrations

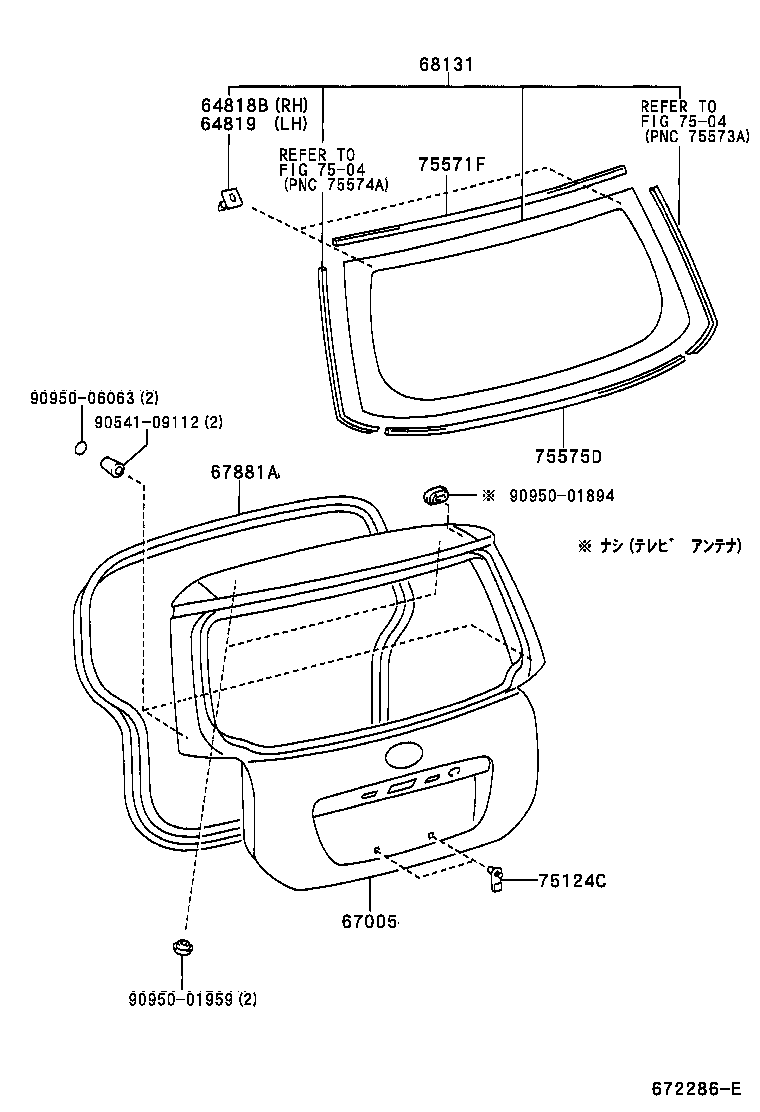

Figure 672268C 672268C 2001-01 → — Figure 672286E 672286E 2001-01 → —

Part groups

PNCDescription
64790B Panel Assy, Back Door Trim, Upper
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
75124C Bracket, Rear License Plate Support
75571F Mouldimg, Back Door Window
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
