Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 2 illustrations

Illustrations

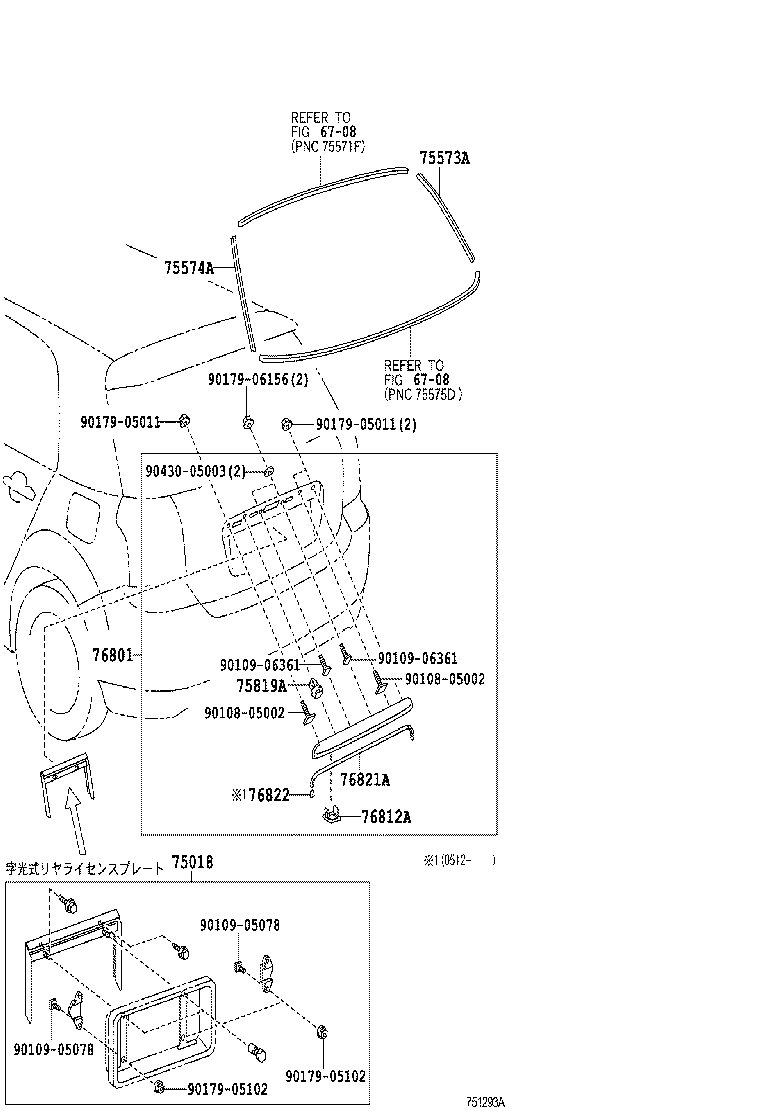

Figure 750854D 750854D 2001-01 → 2004-04 Figure 751293A 751293A 2004-04 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75819A Clip, Back Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76821A Protector, Luggage Compartment Door Outside Garnish
76822 Protector, Back Door Garnish Moulding, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
