Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

24 part groups · 5 illustrations

Illustrations

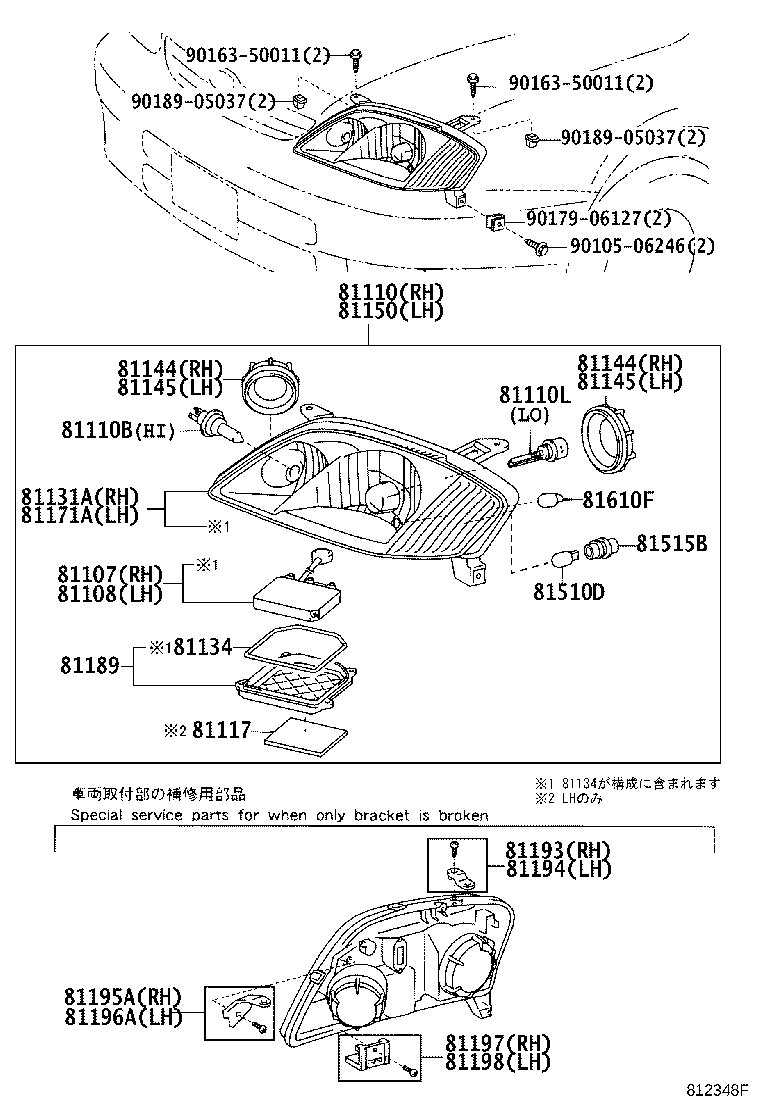

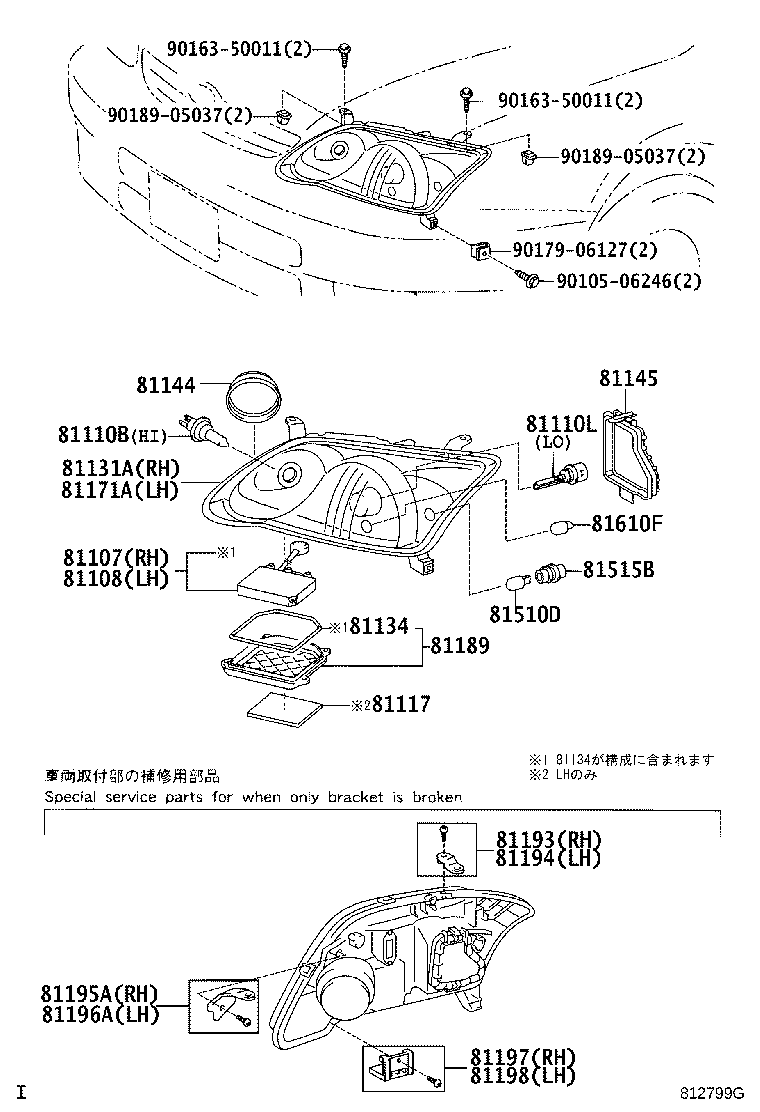

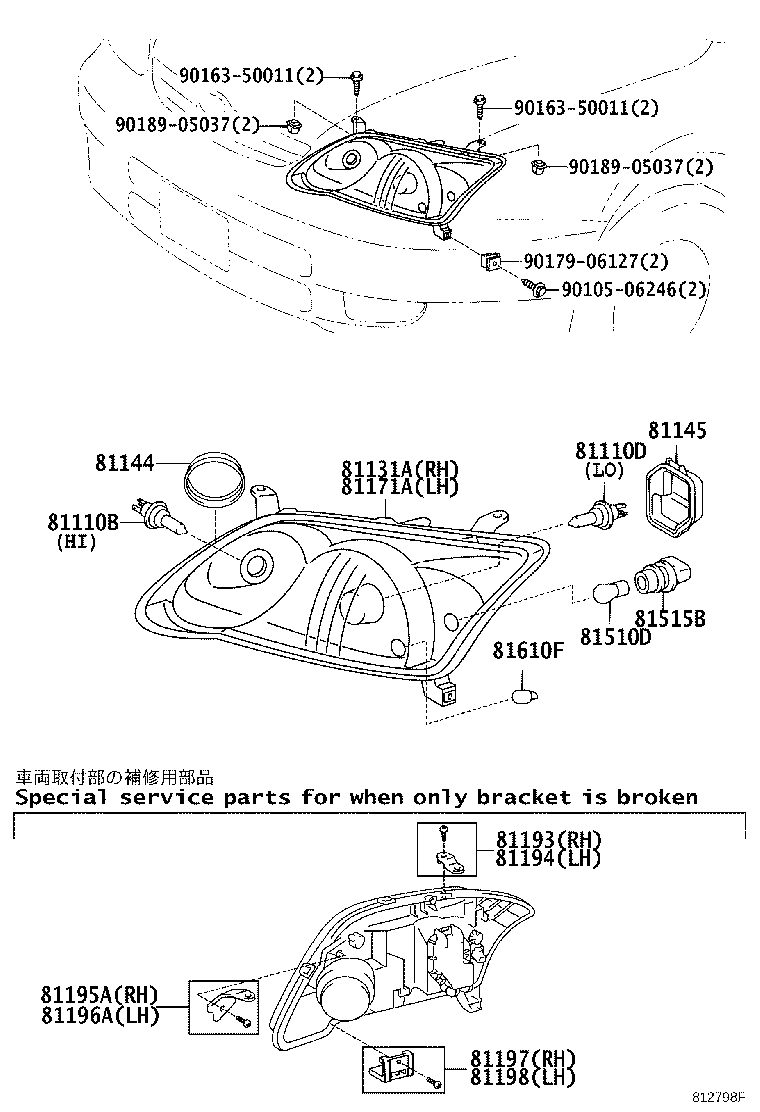

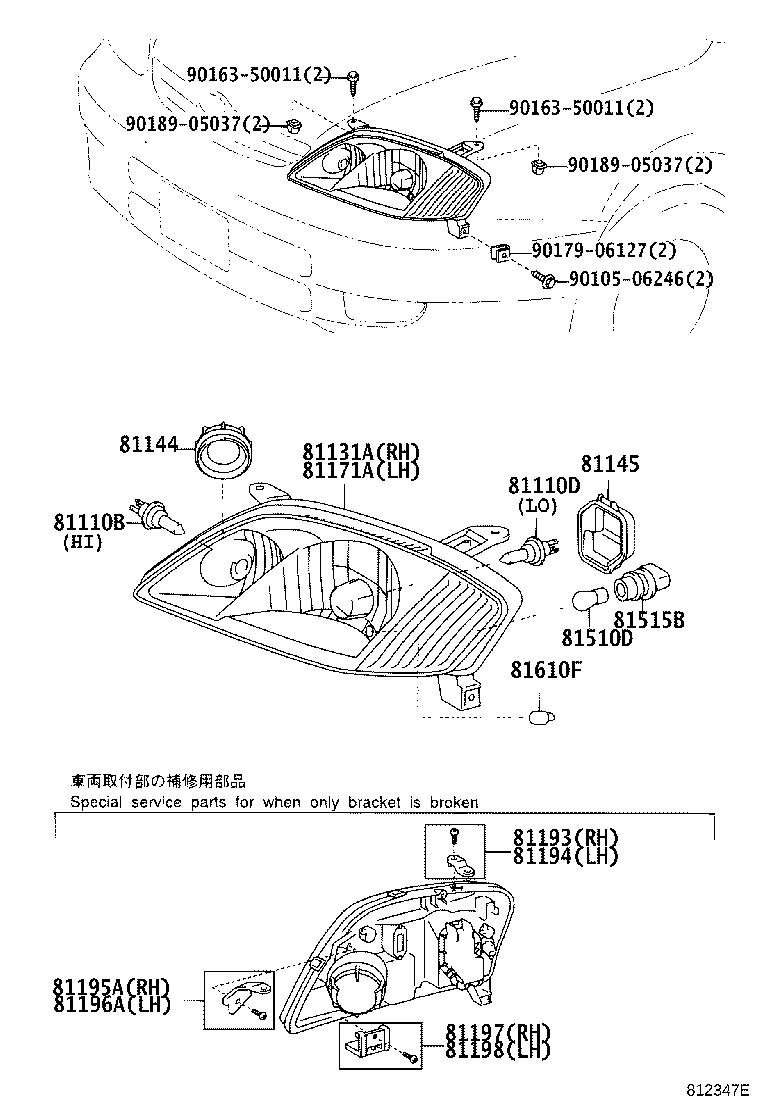

Figure 811675E 811675E 2001-01 → 2002-09 Figure 812347E 812347E 2002-09 → 2004-04 Figure 812348F 812348F 2002-09 → 2004-04 Figure 812798F 812798F 2004-04 → — Figure 812799G 812799G 2004-04 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81117 Packing, Headlamp Housing
81131A Unit, Headlamp, RH
81134 Gasket, Headlamp
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81171A Unit, Headlamp, LH
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
