Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 10 illustrations

Illustrations

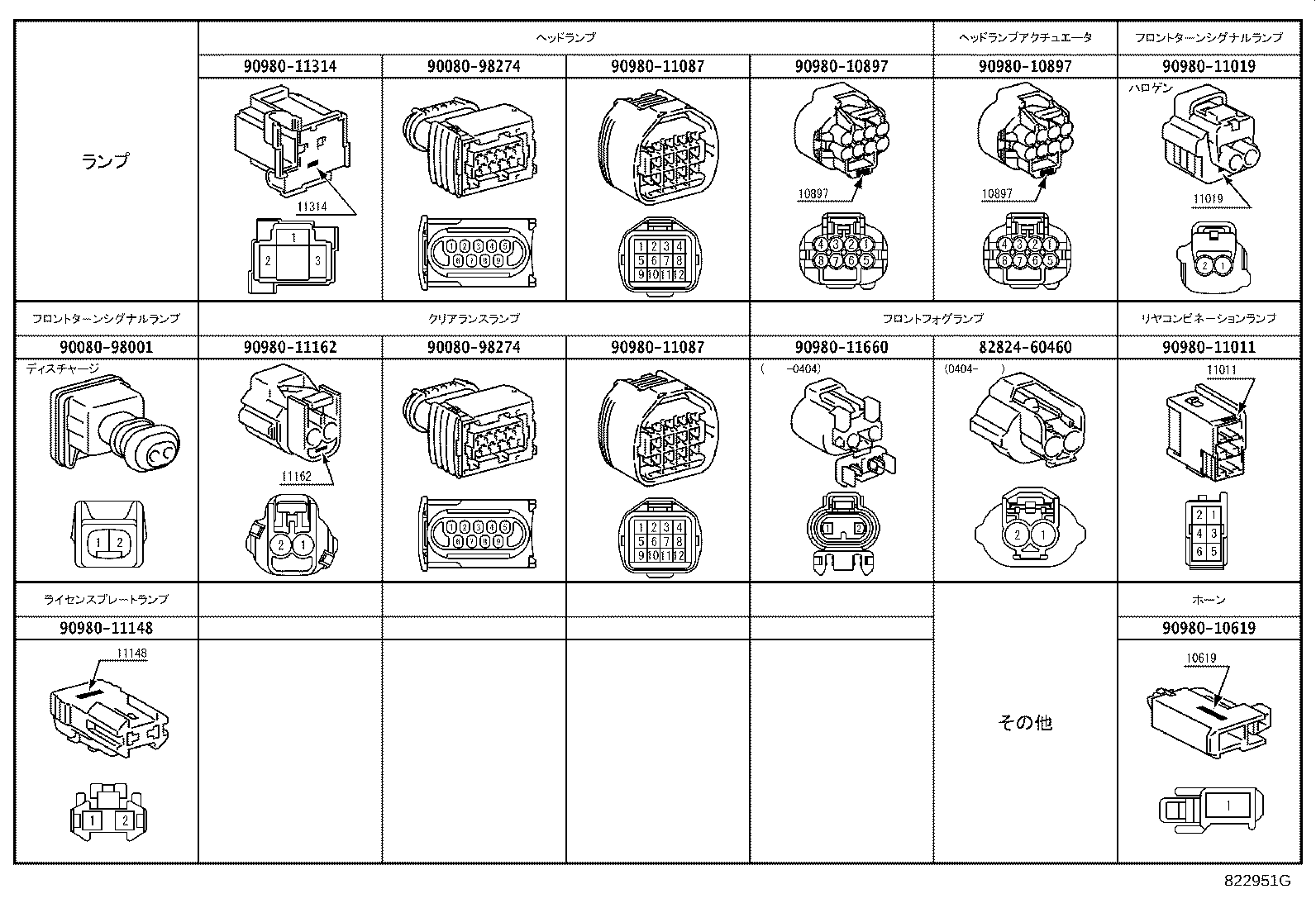

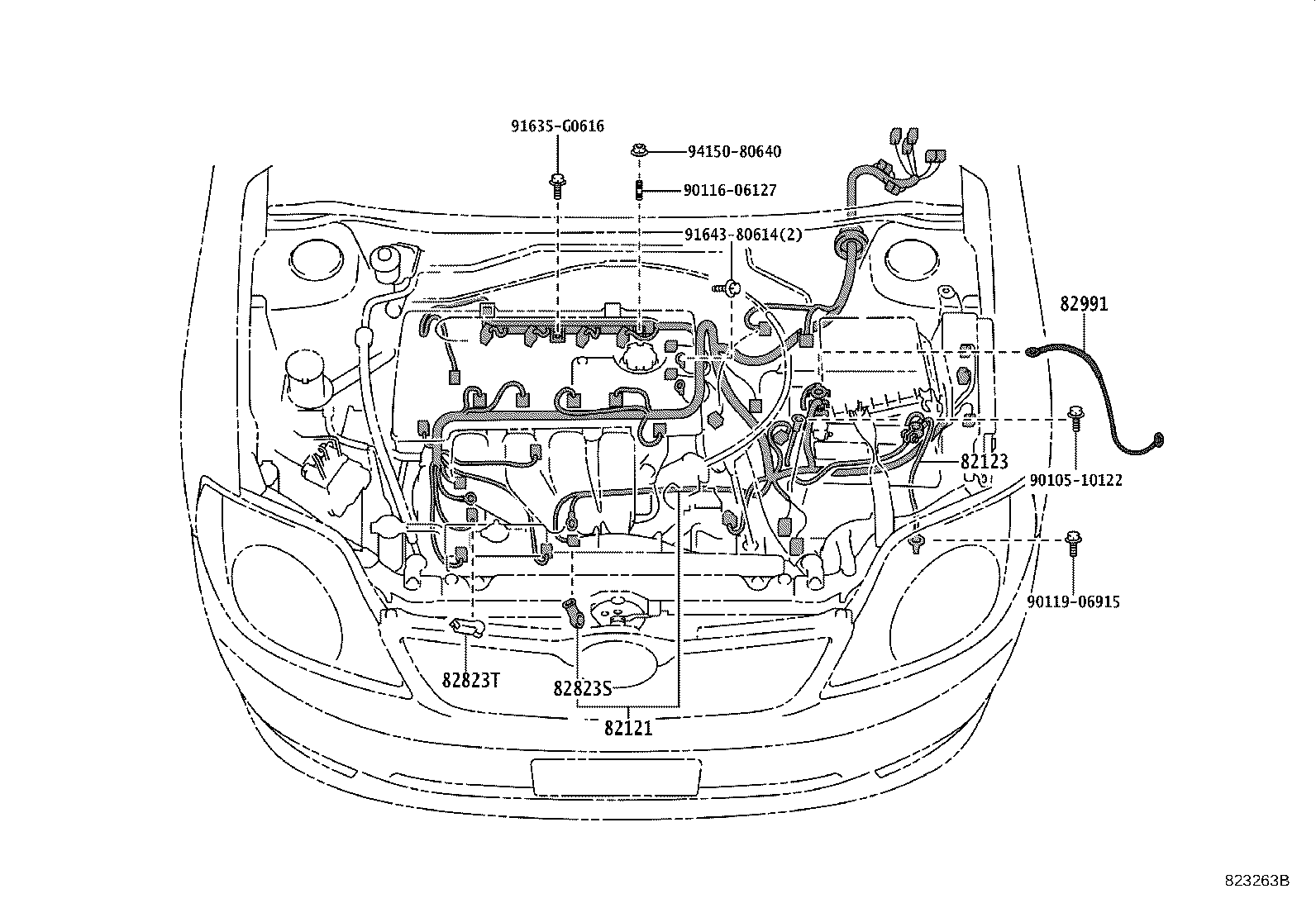

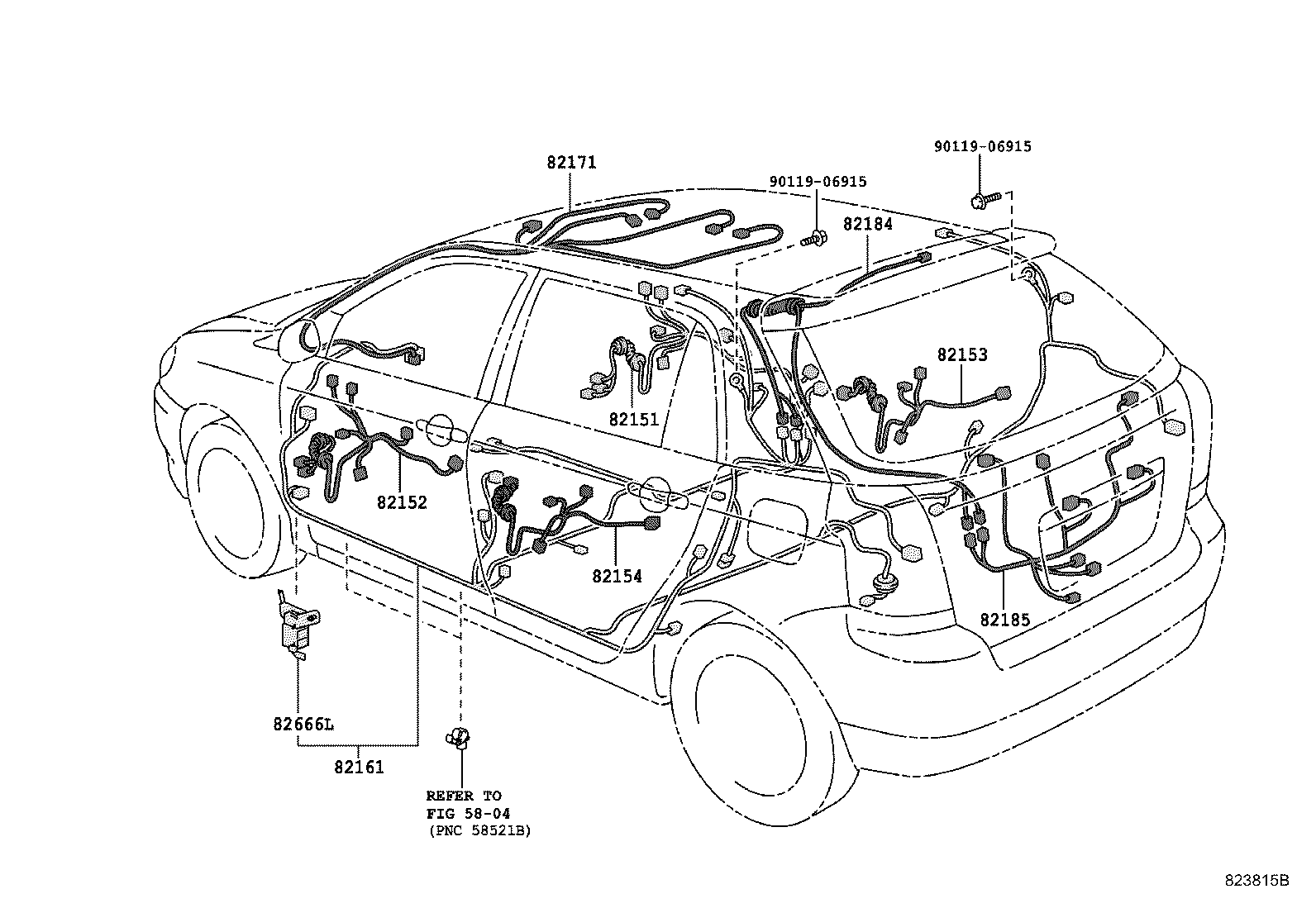

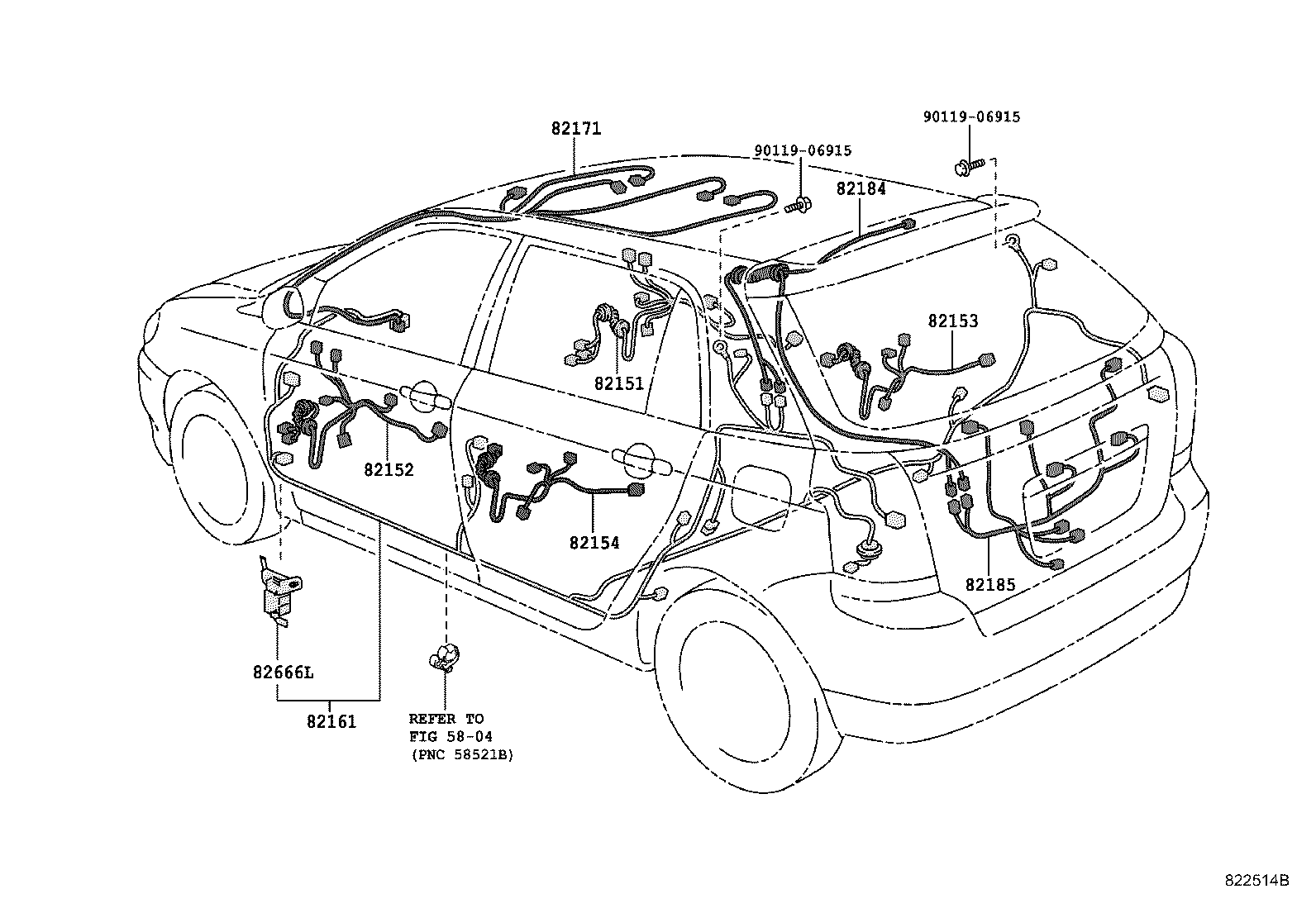

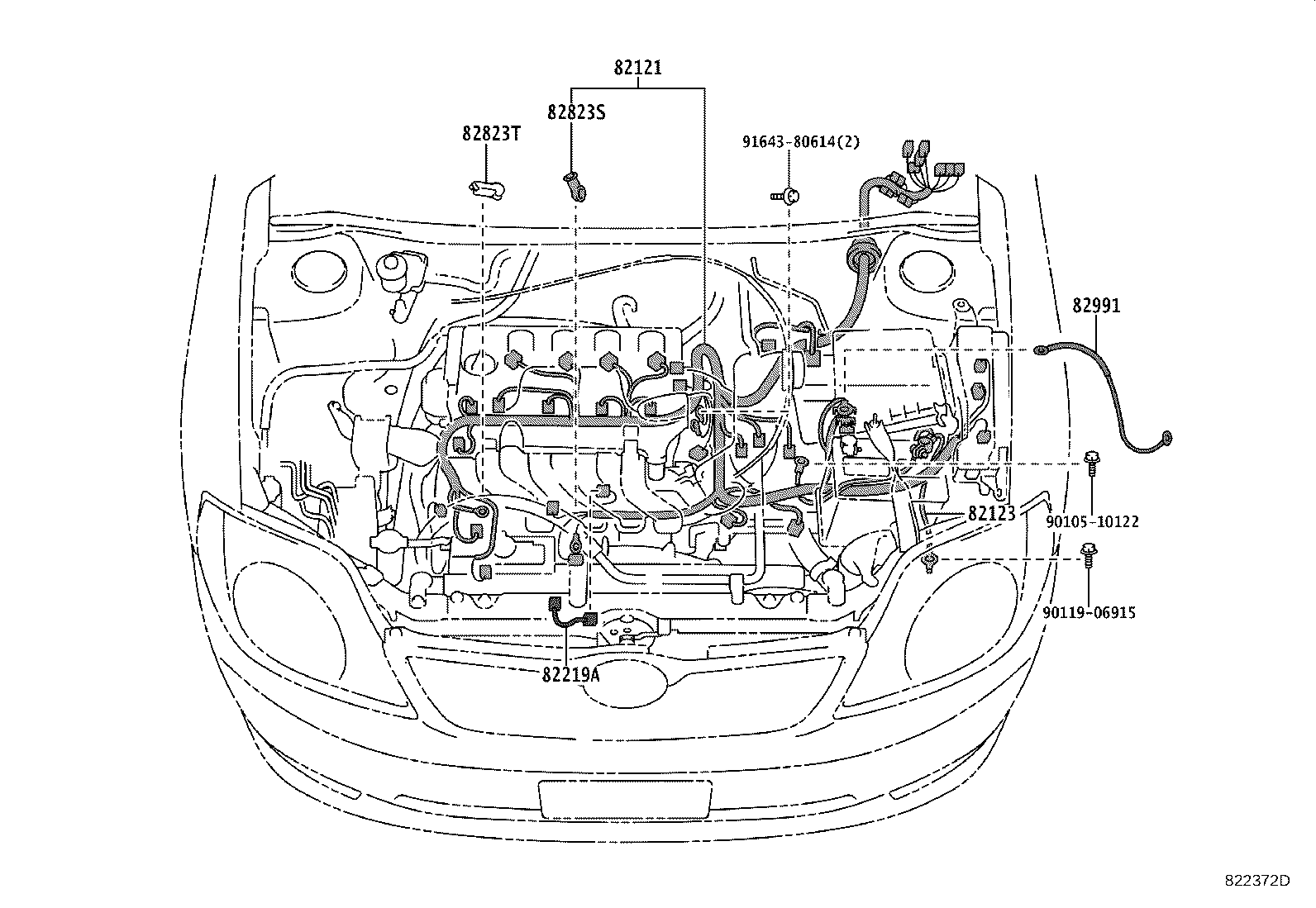

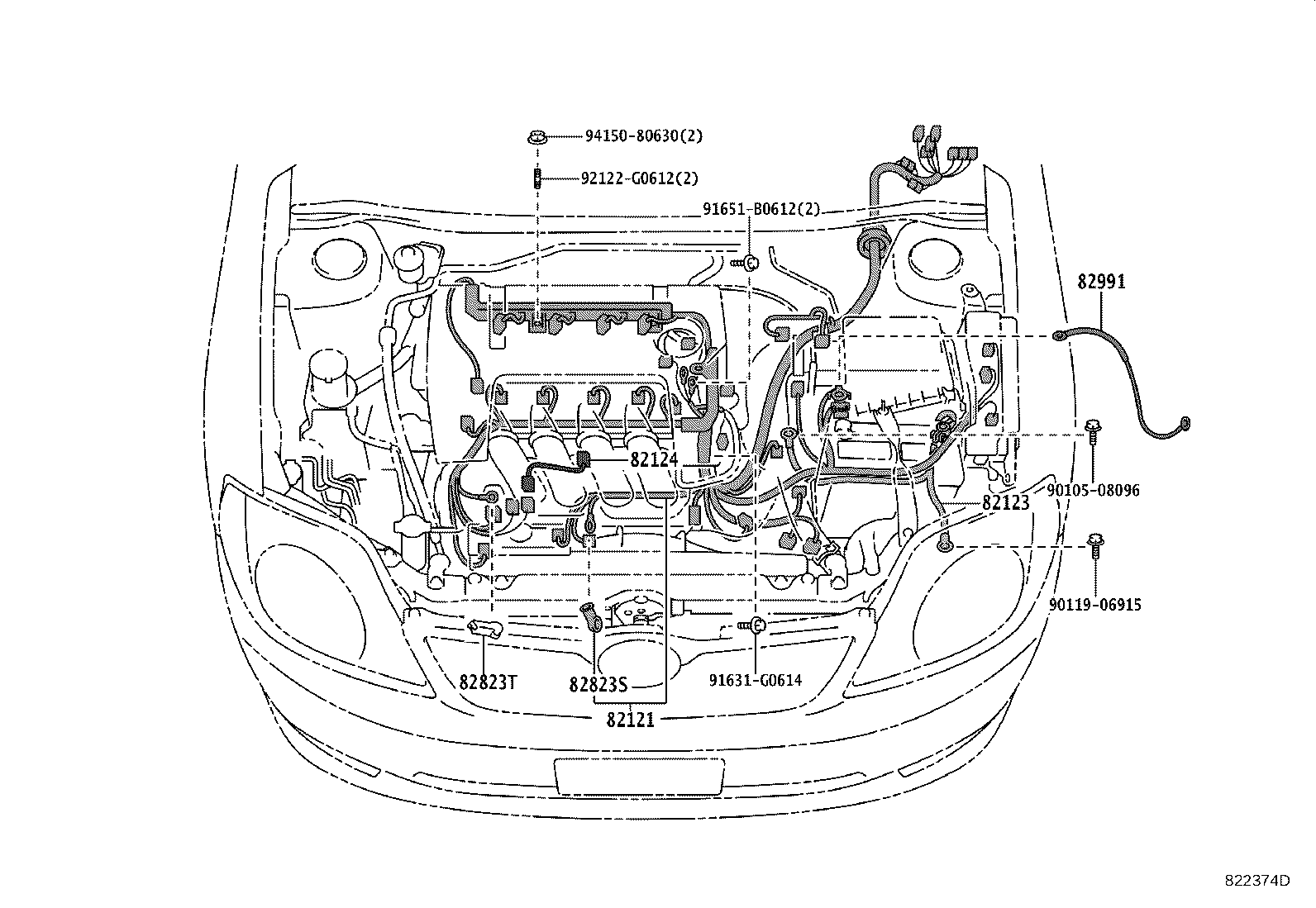

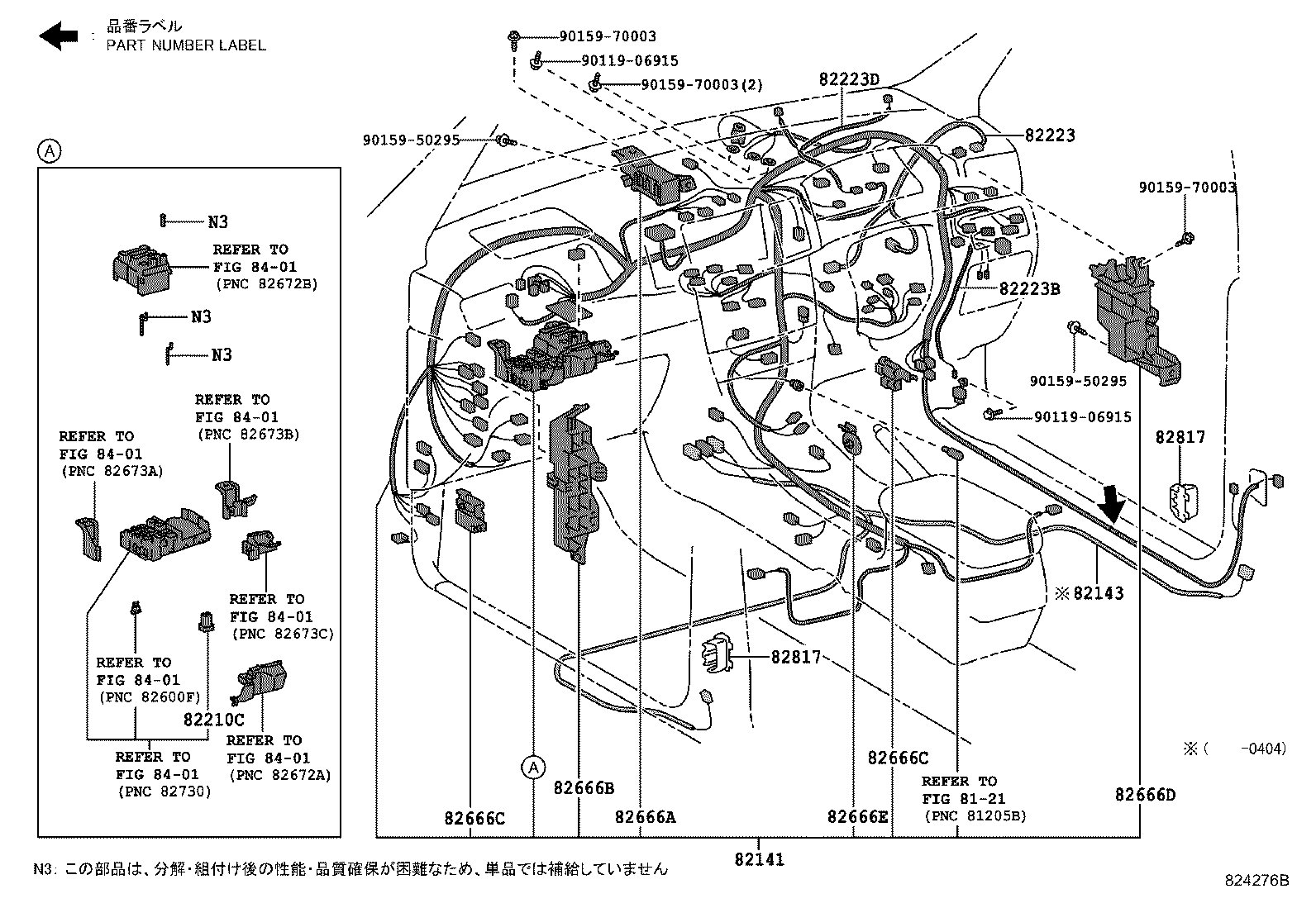

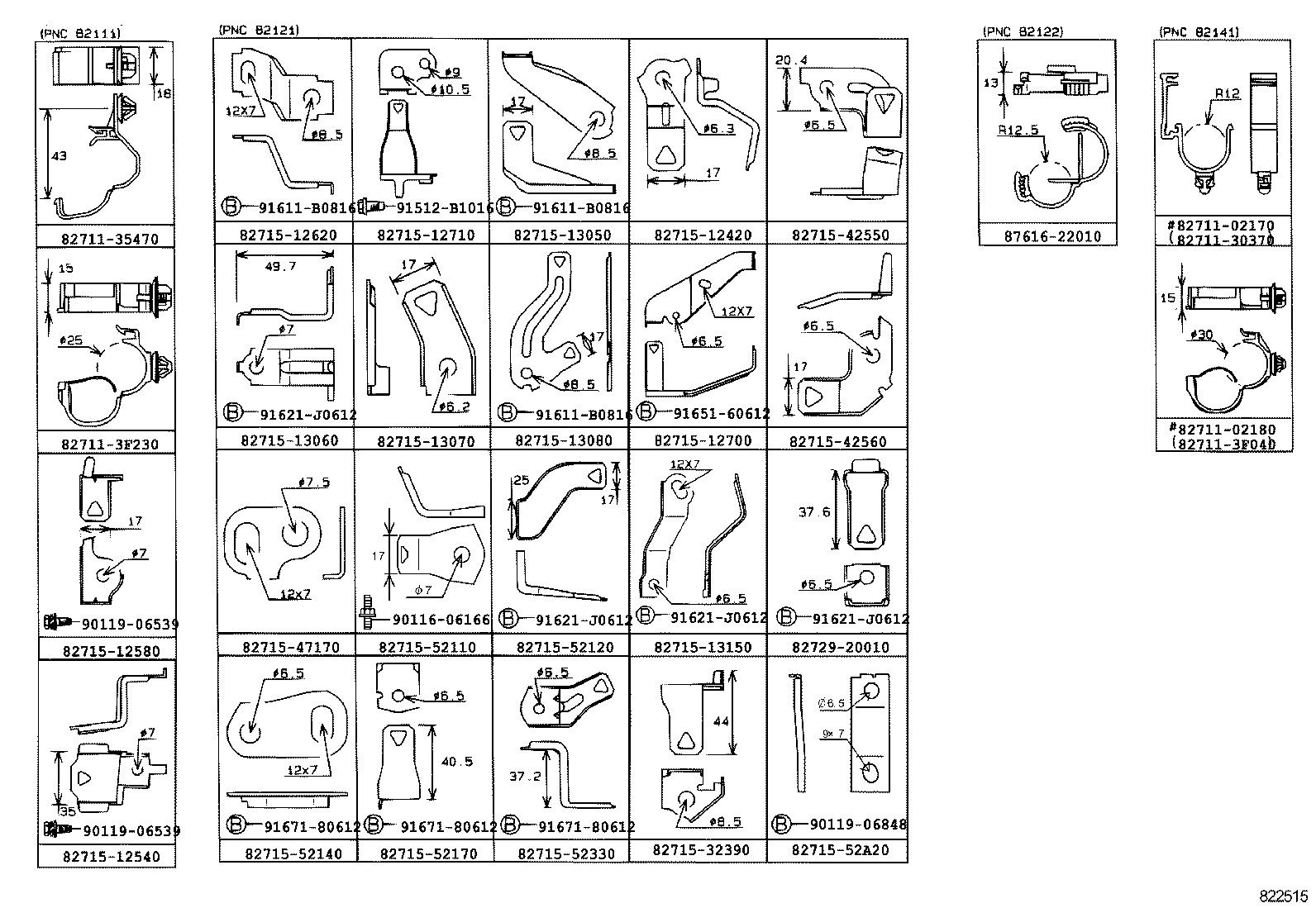

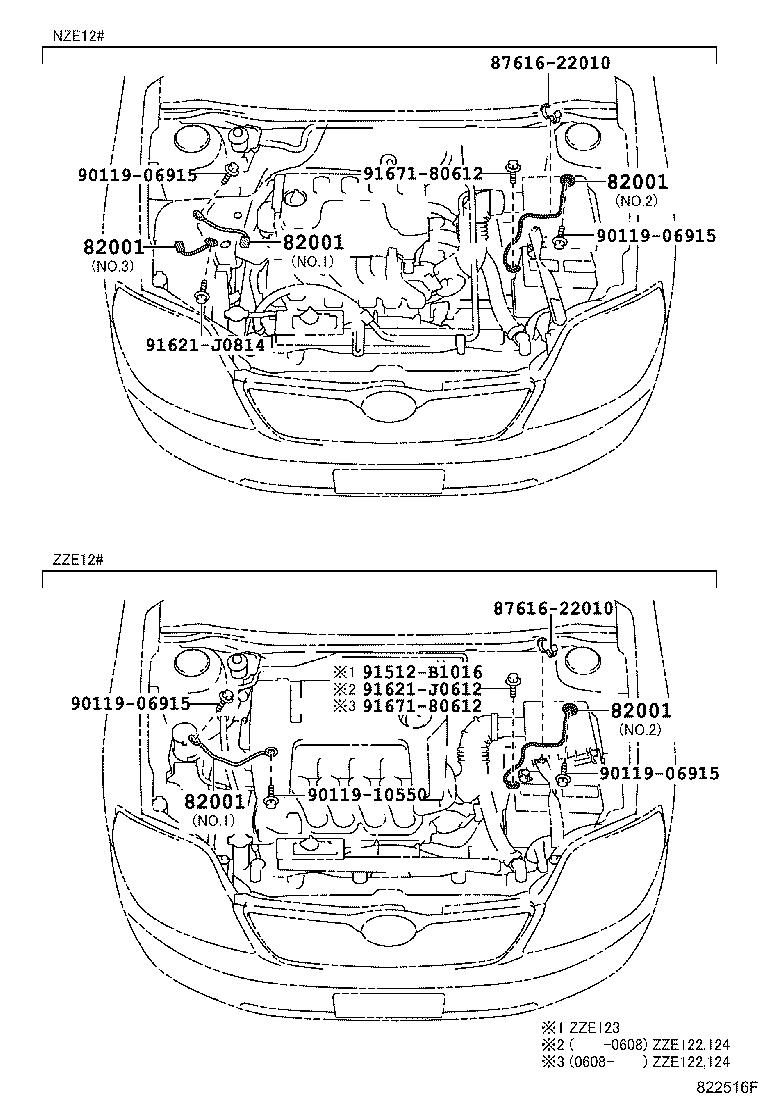

Figure 822512E 822512E 2001-01 → 2006-09 Figure 822372D 822372D 2001-01 → 2006-09 Figure 822374D 822374D 2001-01 → 2006-09 Figure 823263B 823263B 2002-09 → 2006-09 Figure 824276B 824276B 2001-01 → 2006-09 Figure 822514B 822514B 2001-01 → 2004-04 Figure 823815B 823815B 2004-04 → 2006-09 Figure 822515G 822515G 2001-01 → 2006-09 Figure 822516F 822516F 2001-01 → 2006-09 Figure 822951G 822951G 2001-01 → 2006-09

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82219A Wire, Sensor
82223 Wire, Switch
82223B Wire, Switch, NO.2
82223D Wire, Switch, NO.3
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666L Holder, Connector NO.9
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
