Factory parts data · Europe

Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

Figure 830695E

830695E 2001-01 → —

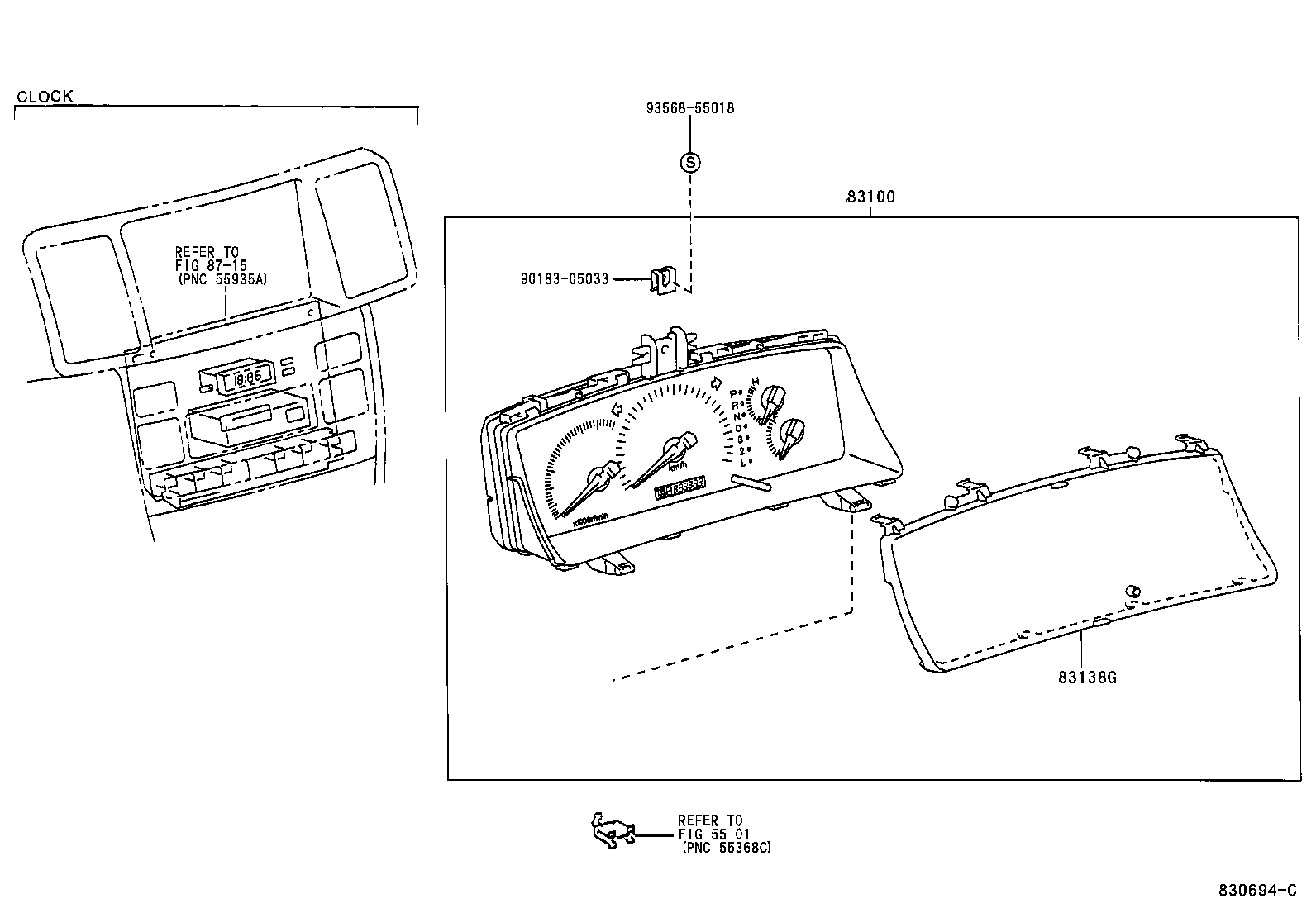

Figure 830694C

830694C 2001-01 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83910	Clock Assy
83910B	Bulb, Clock Indicator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
