Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

91 part groups · 10 illustrations

Illustrations

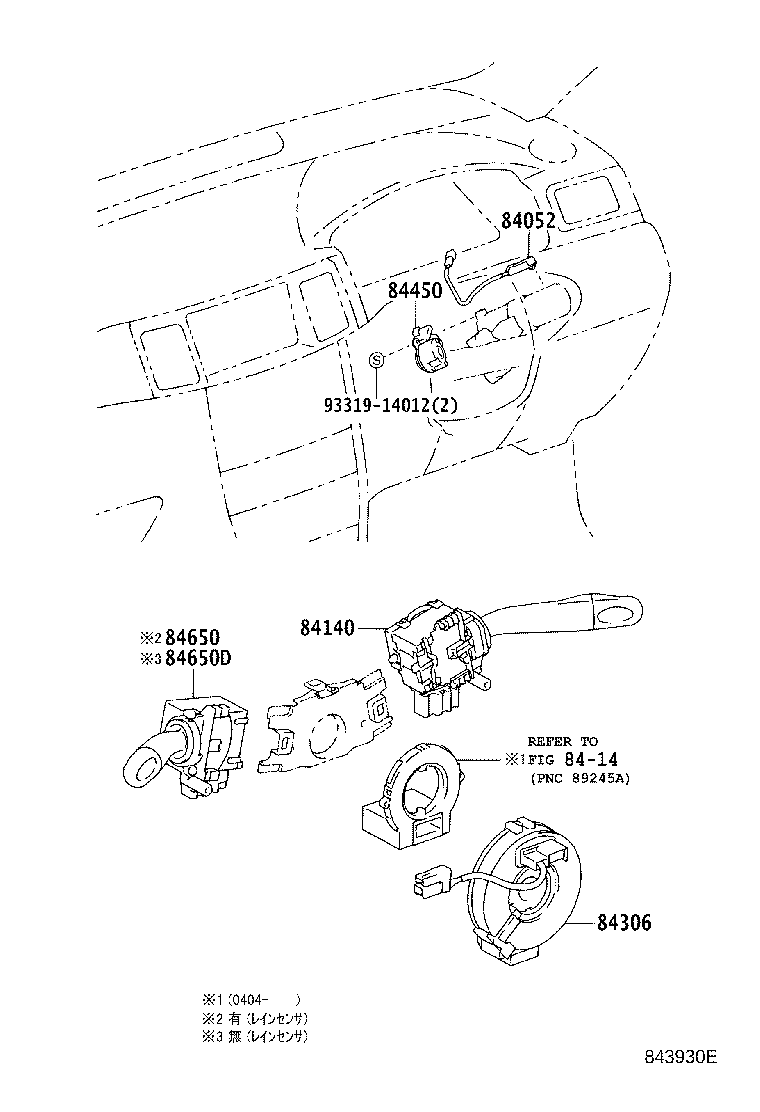

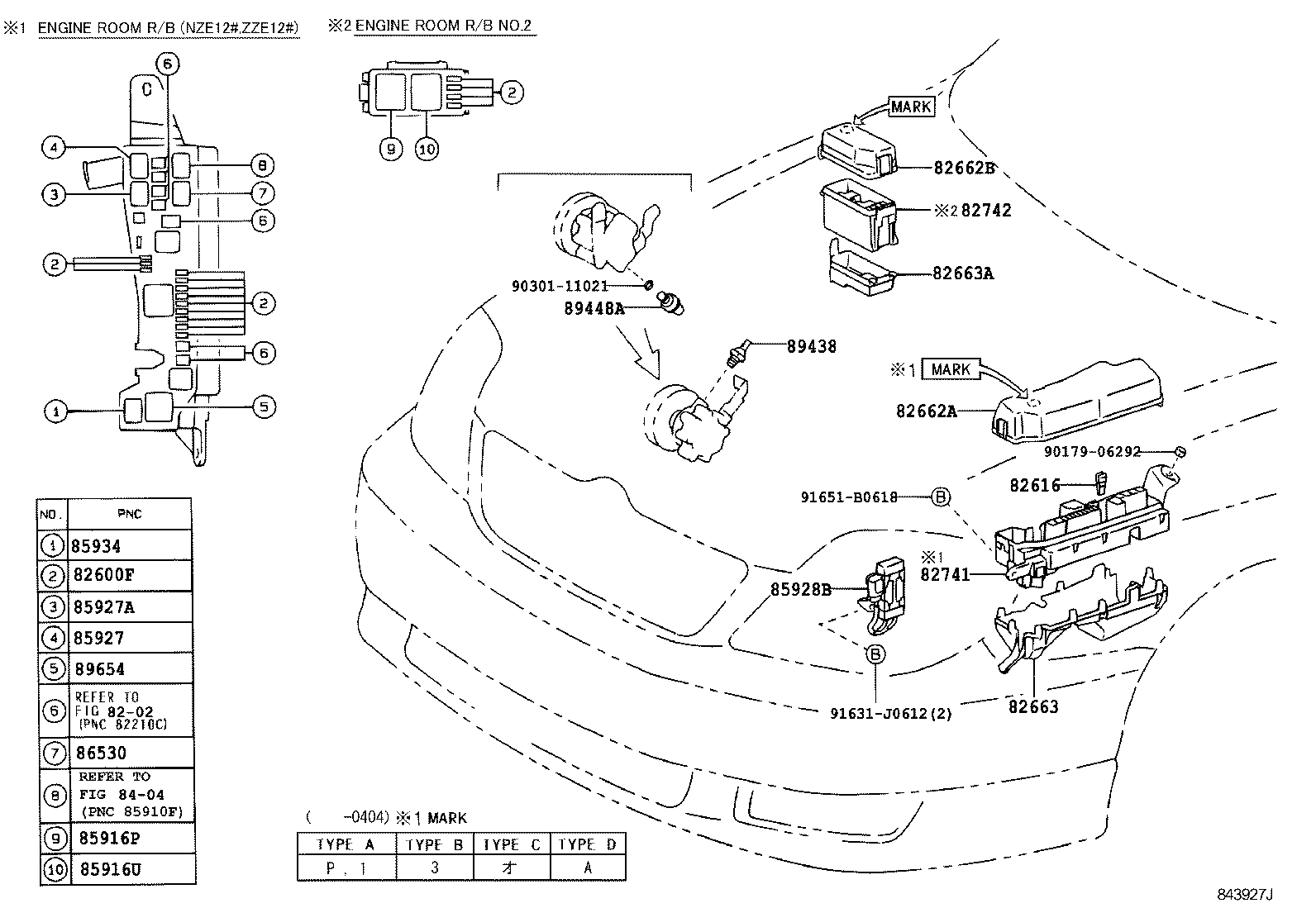

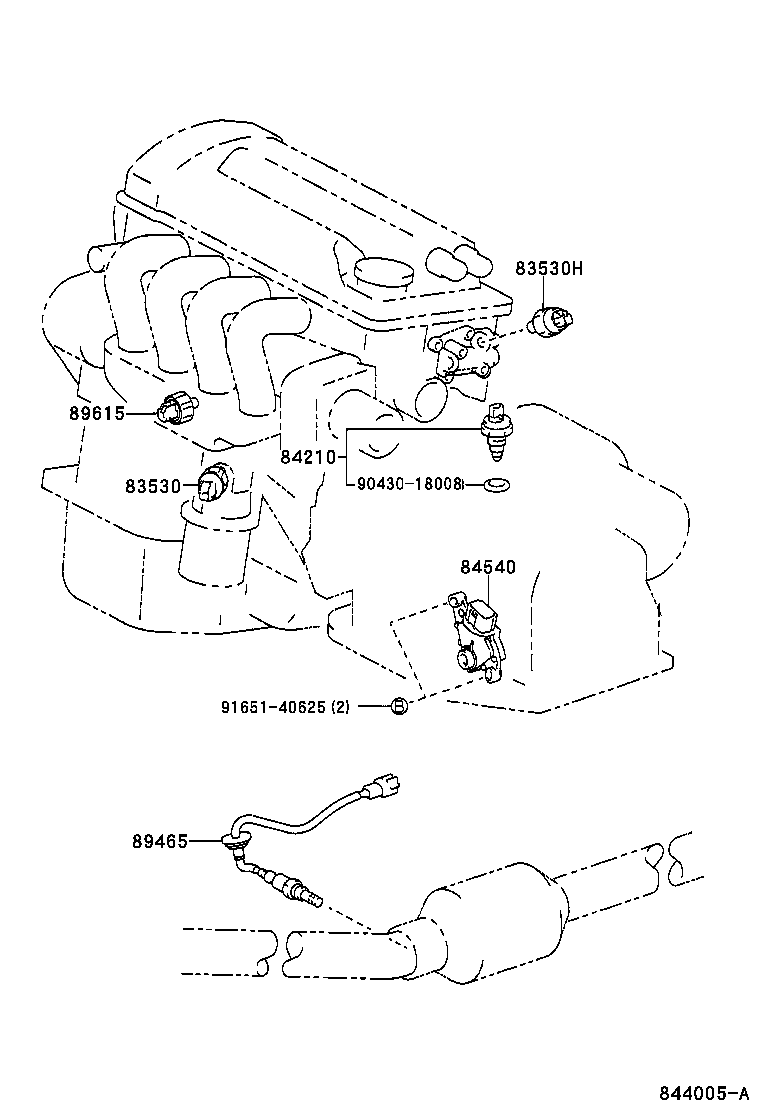

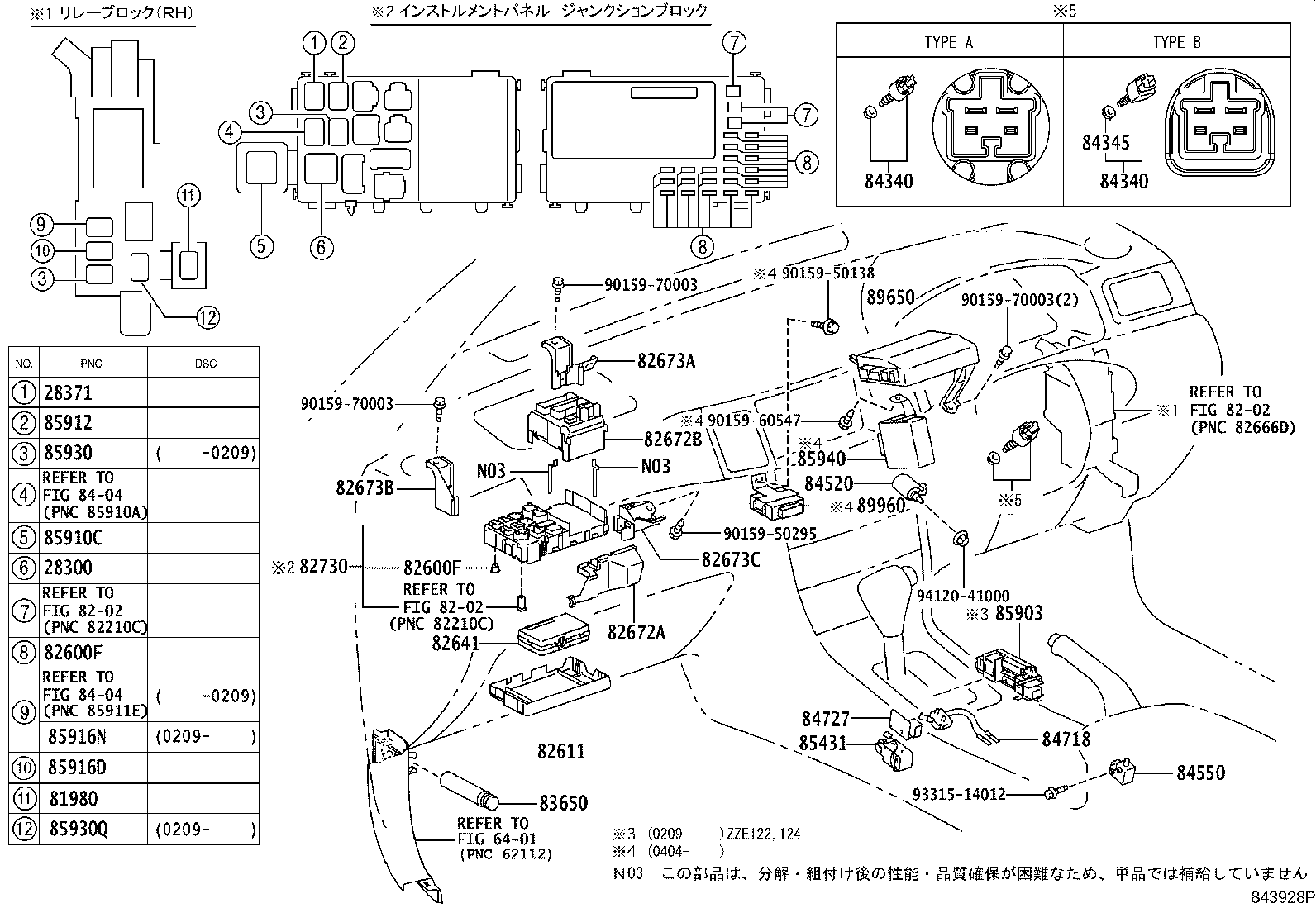

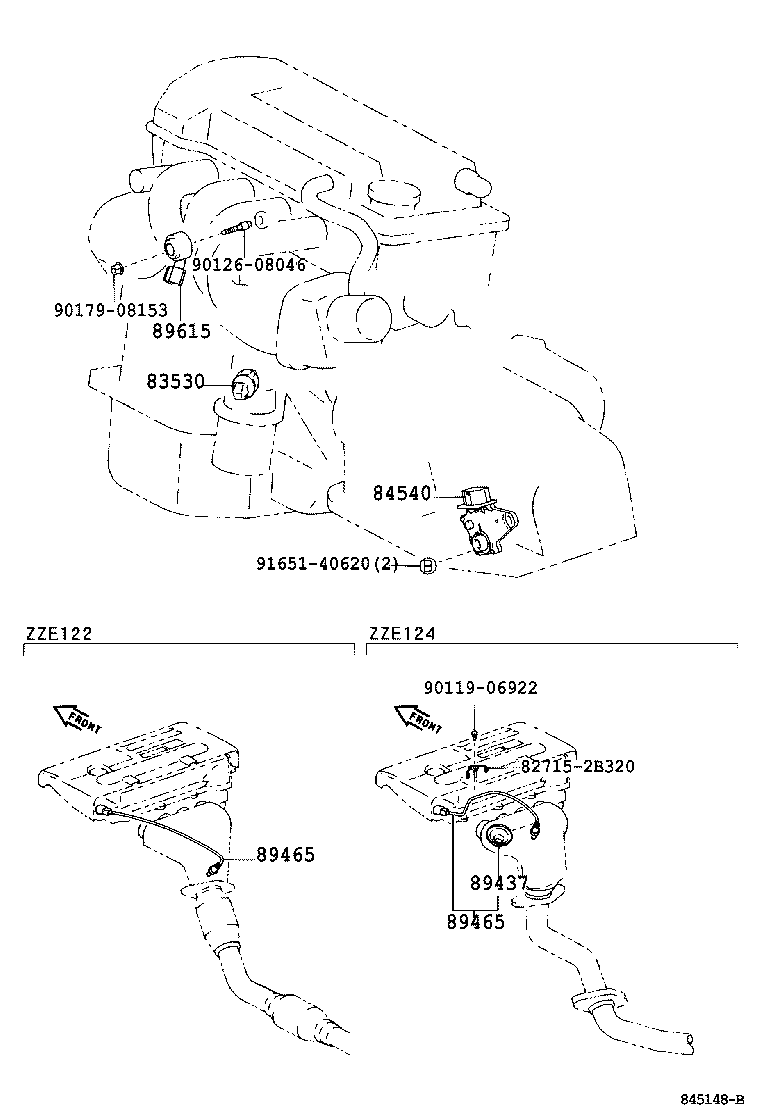

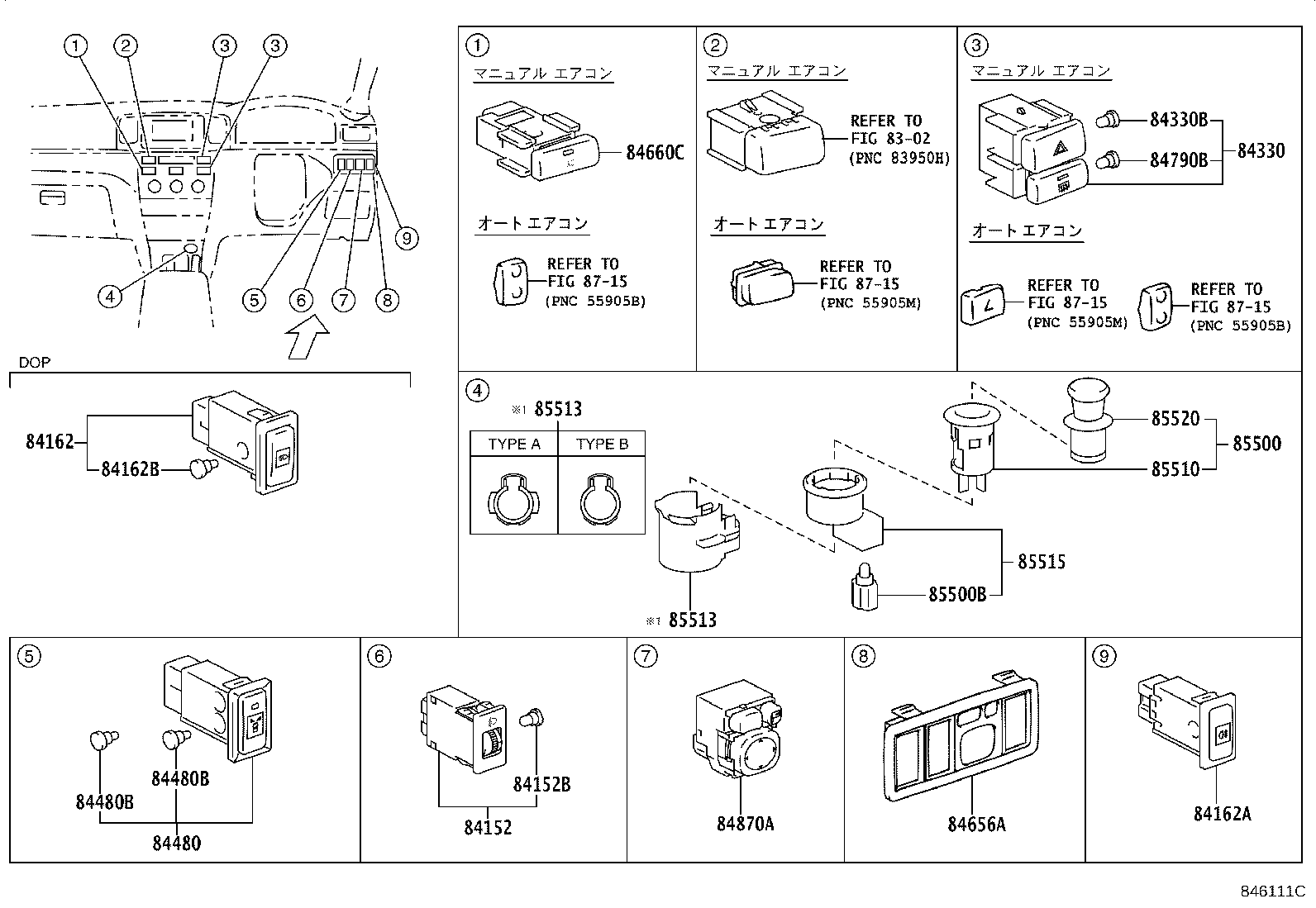

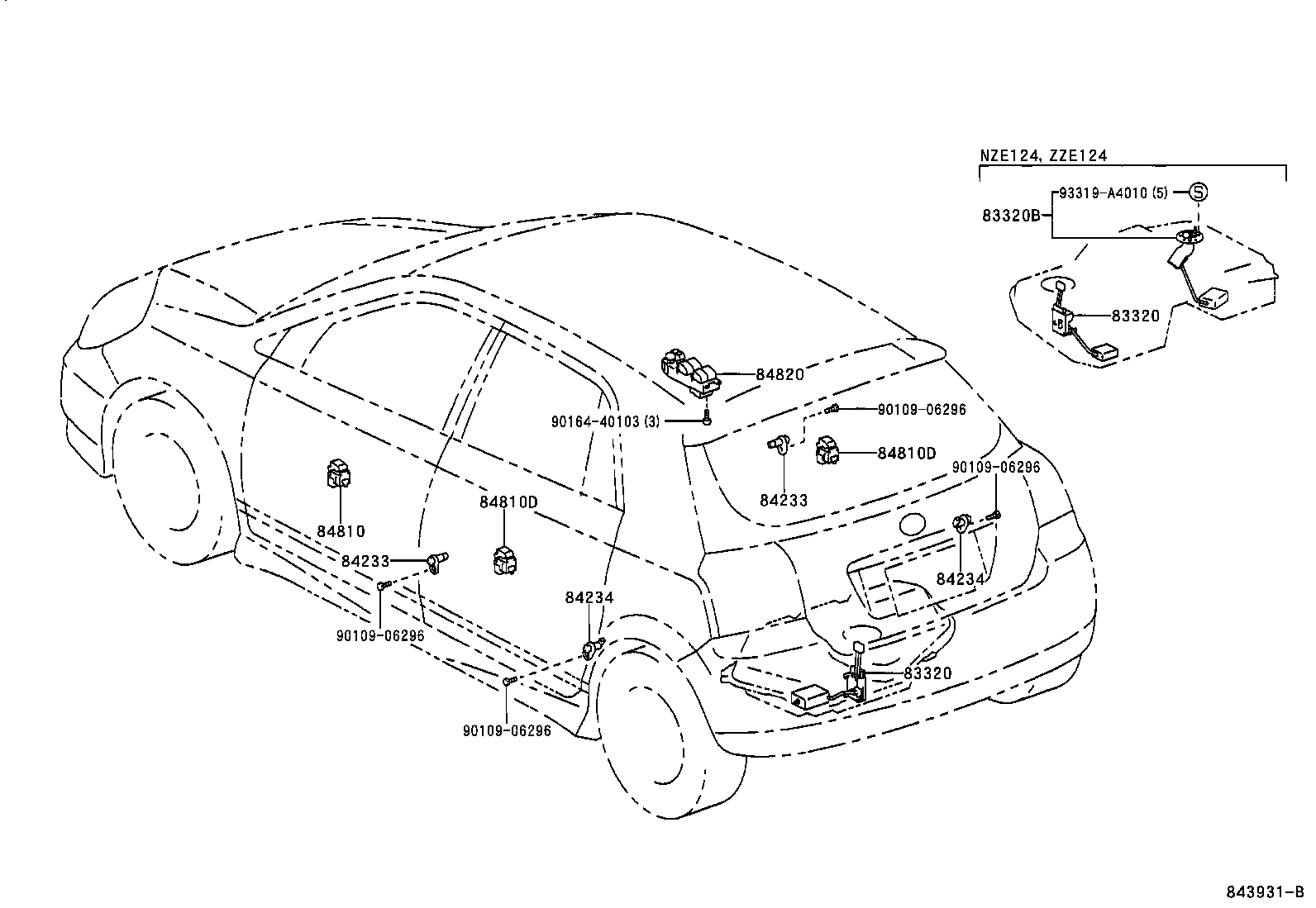

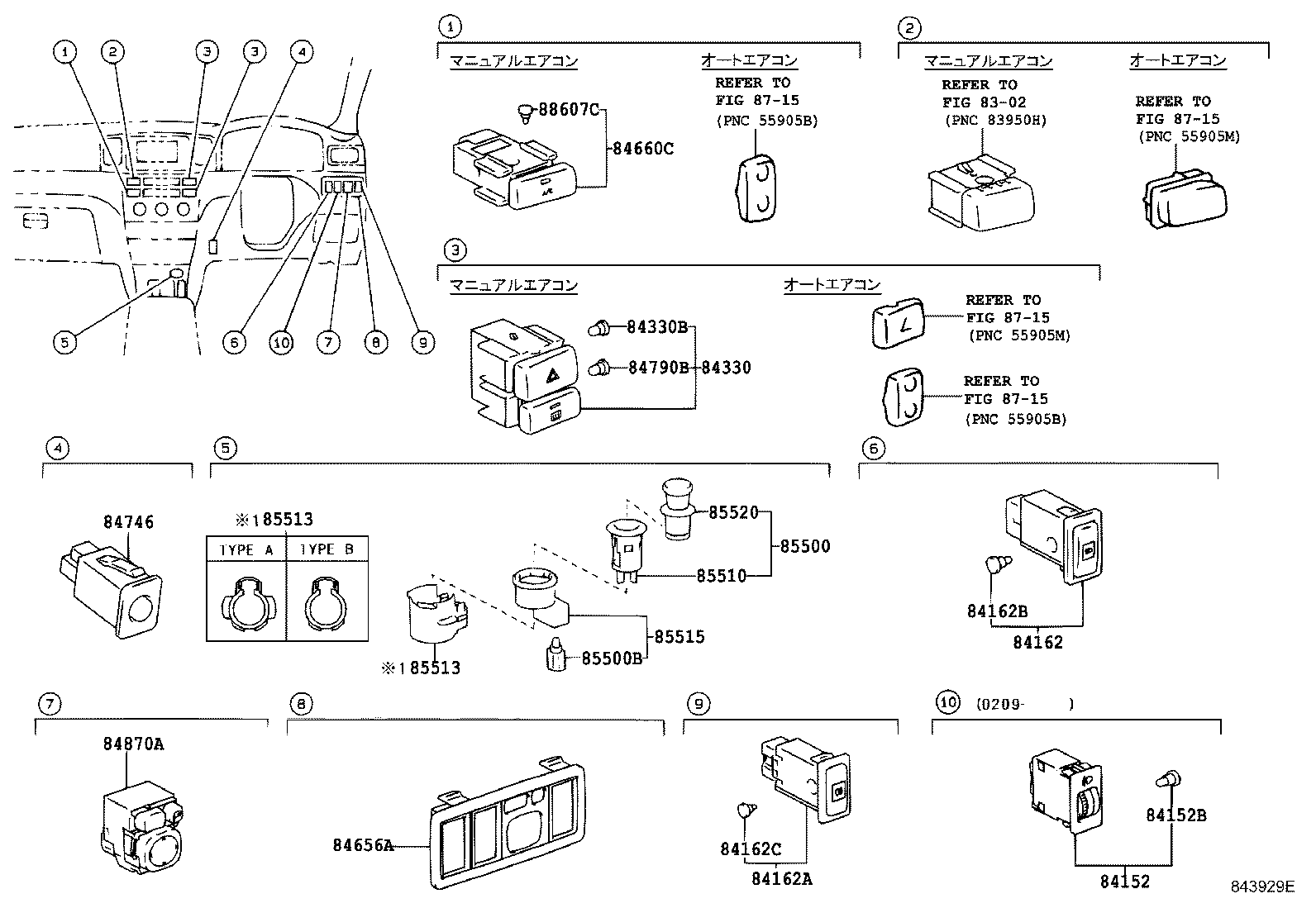

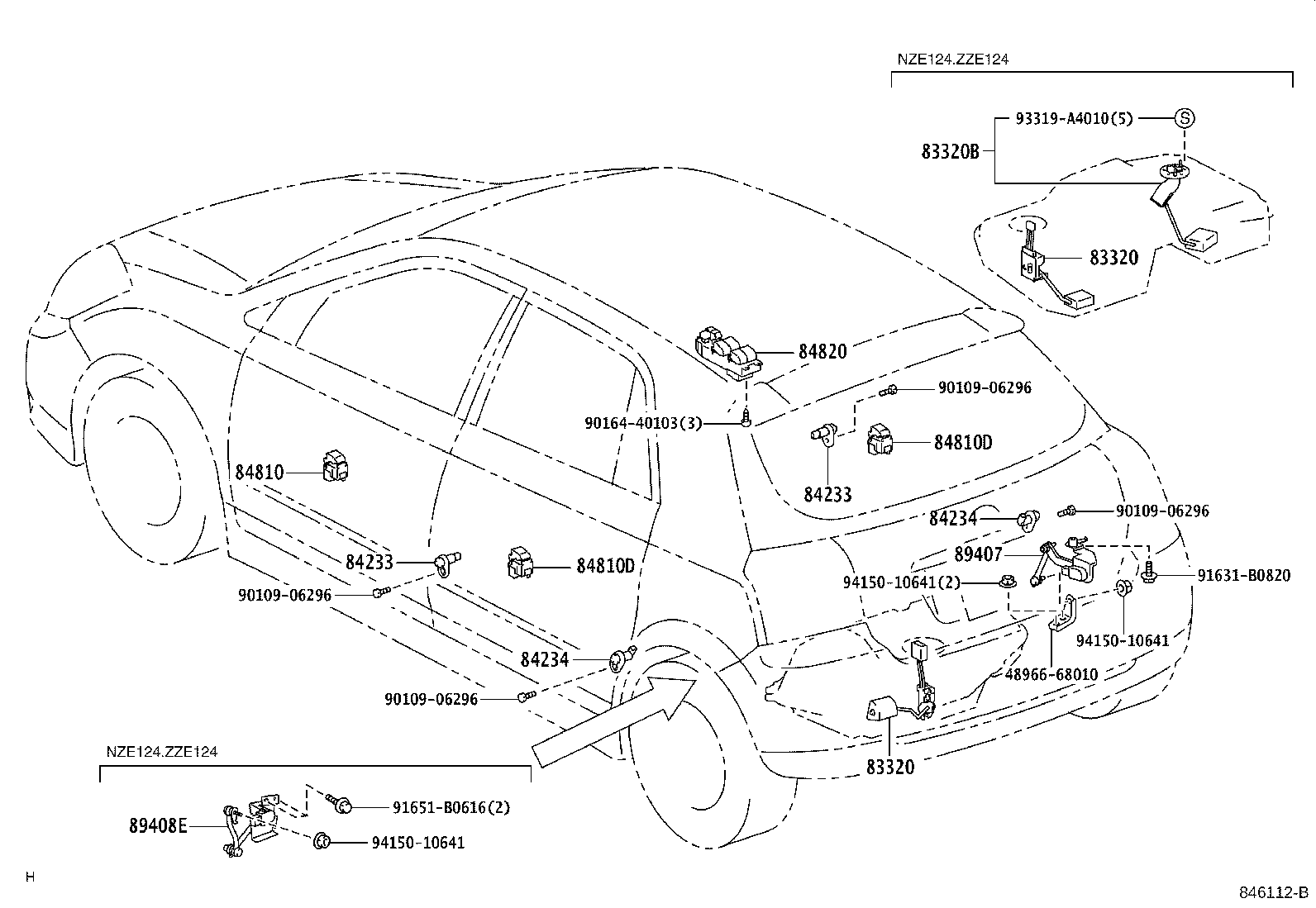

Figure 844008D 844008D 2001-01 → 2006-09 Figure 844005A 844005A 2001-01 → 2006-09 Figure 845148B 845148B 2002-09 → 2006-09 Figure 843927J 843927J 2001-01 → 2006-09 Figure 843928P 843928P 2001-01 → 2006-09 Figure 843929E 843929E 2001-01 → 2004-04 Figure 846111C 846111C 2004-04 → 2006-09 Figure 843930E 843930E 2001-01 → 2006-09 Figure 843931B 843931B 2001-01 → 2004-04 Figure 846112B 846112B 2004-04 → 2006-09

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82611 Cover, Fuse Block
82616 Puller, Fuse
82641 Relay, Integration NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83530H Switch Assy, Oil Pressure
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480B Bulb, Main Switch Assy
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84660C Switch, Cooler
84718 Switch, Transmission Shift Main
84727 Switch, Shift Lock Control
84746 Switch, Tire Pressure Warning
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
85431 Solenoid, Shift Lock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85930 Relay Assy, Power Window
85930Q Relay, Power
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
86530 Relay Assy, Horn
88607C Lamp Sub-assy, Indicator
89407 Sensor Sub-assy, Height Control, Rear RH
89408E Sensor Sub-assy, Height Control, Rear LH
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89448A Sensor, Power Steering Oil Pressure
89465 Sensor, Oxygen
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
