Toyota Corolla Runx/Allex
2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan
Discontinued model
Data version 2007-04

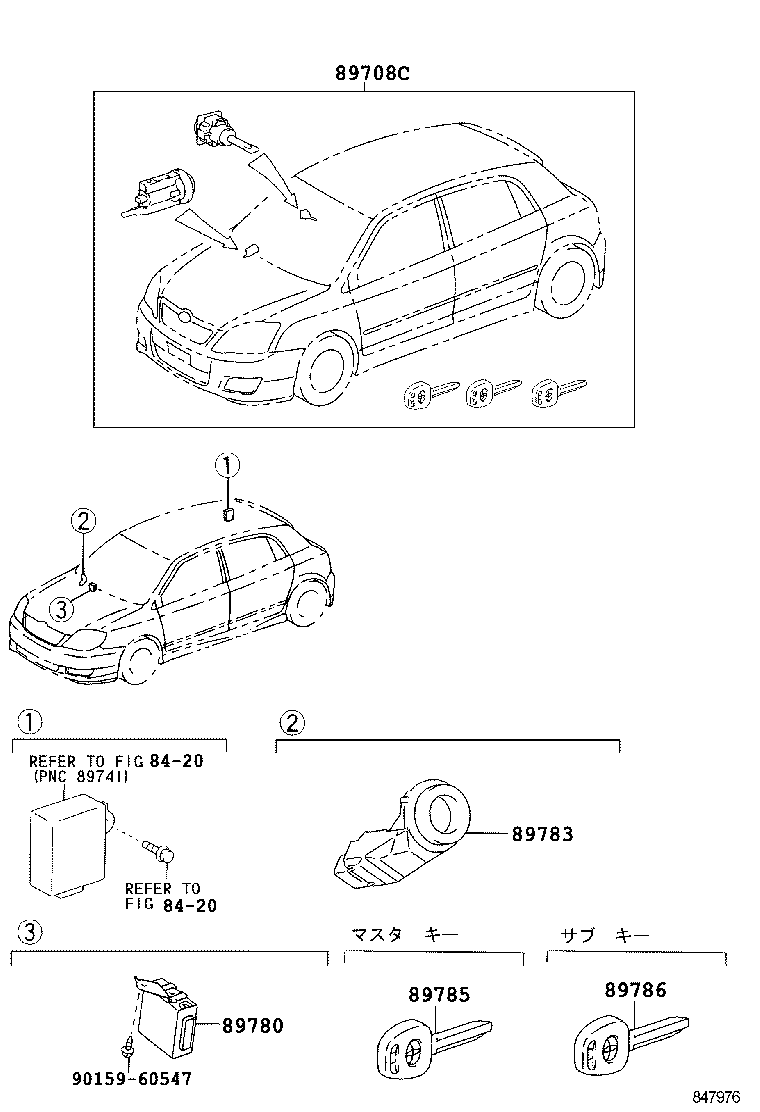

Anti-theft Device
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89708C | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
