Factory parts data · Europe

Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

10 part groups · 2 illustrations

Illustrations

Figure 861339A

861339A 2001-01 → 2006-09

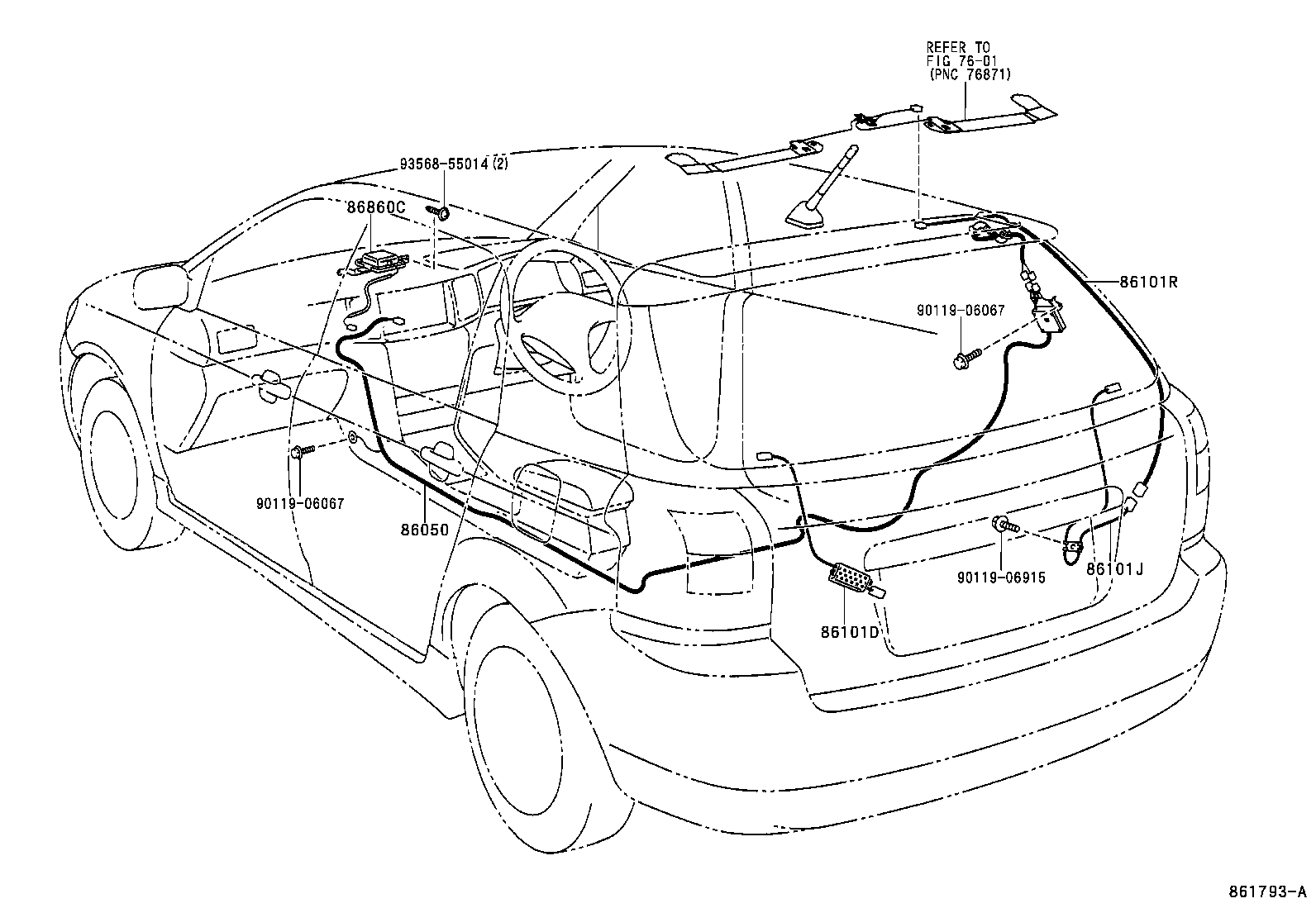

Figure 861793A

861793A 2002-09 → 2006-09

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86101R	Cord Sub-assy, Antenna, NO.5
86299A	Clip, Radio TO Antenna Wire
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
