Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

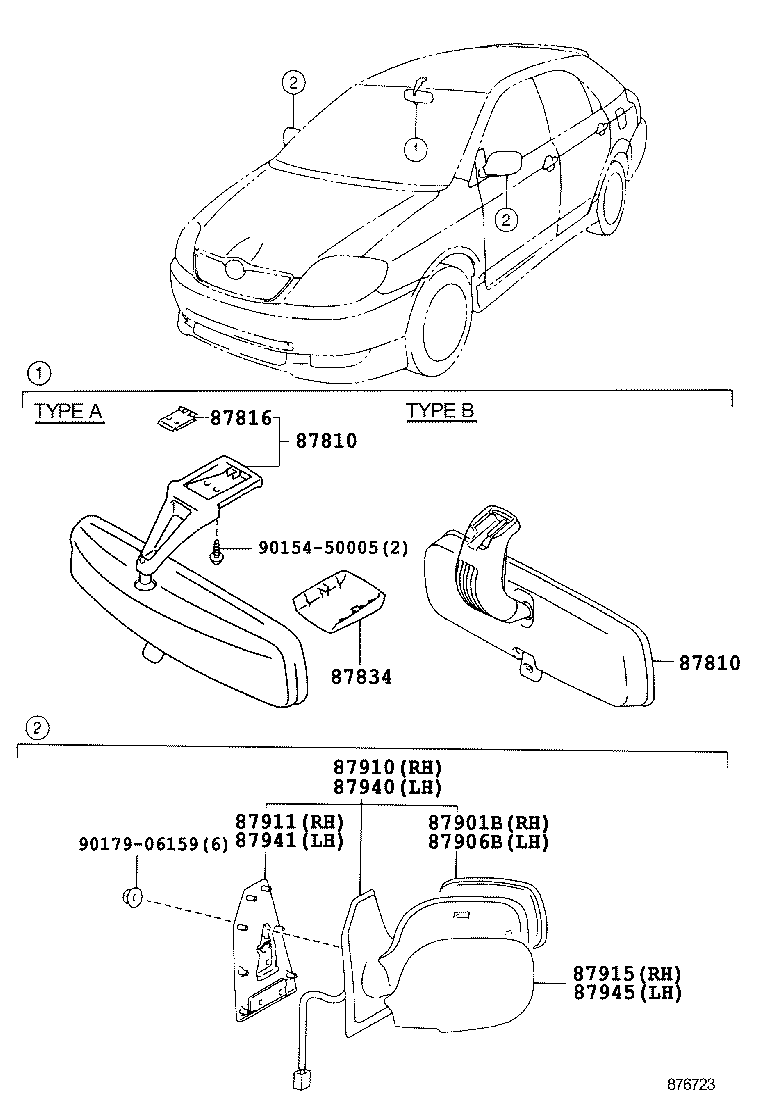

Figure 874659B 874659B 2001-01 → 2004-04 Figure 876723A 876723A 2004-04 → 2006-09

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87915 Cover, Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87945 Cover, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
