Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 5 illustrations

Illustrations

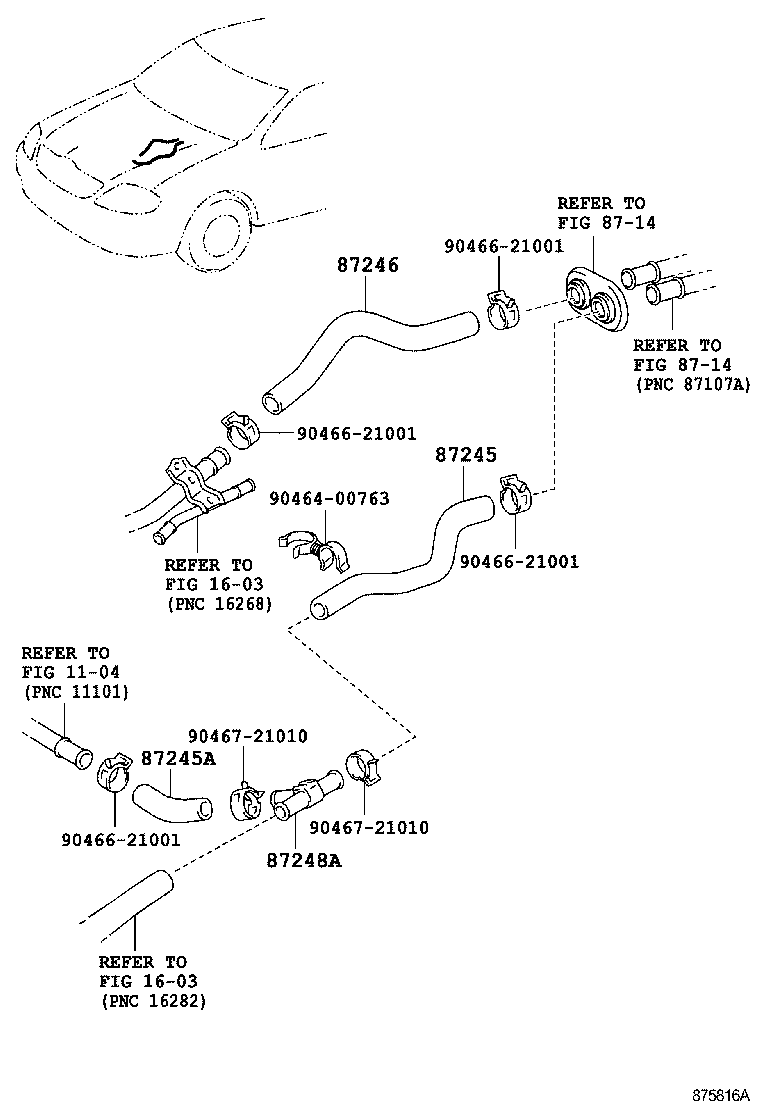

Figure 874421A 874421A 2001-01 → 2006-09 Figure 874365B 874365B 2001-01 → 2006-09 Figure 875816A 875816A 2002-09 → 2005-09 Figure 877811 877811 2005-09 → 2006-09 Figure 874422A 874422A 2002-09 → 2006-09

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
