Toyota Sprinter Trueno

1987-05 → 1991-06 · chassis AE9# · catalogue 154120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

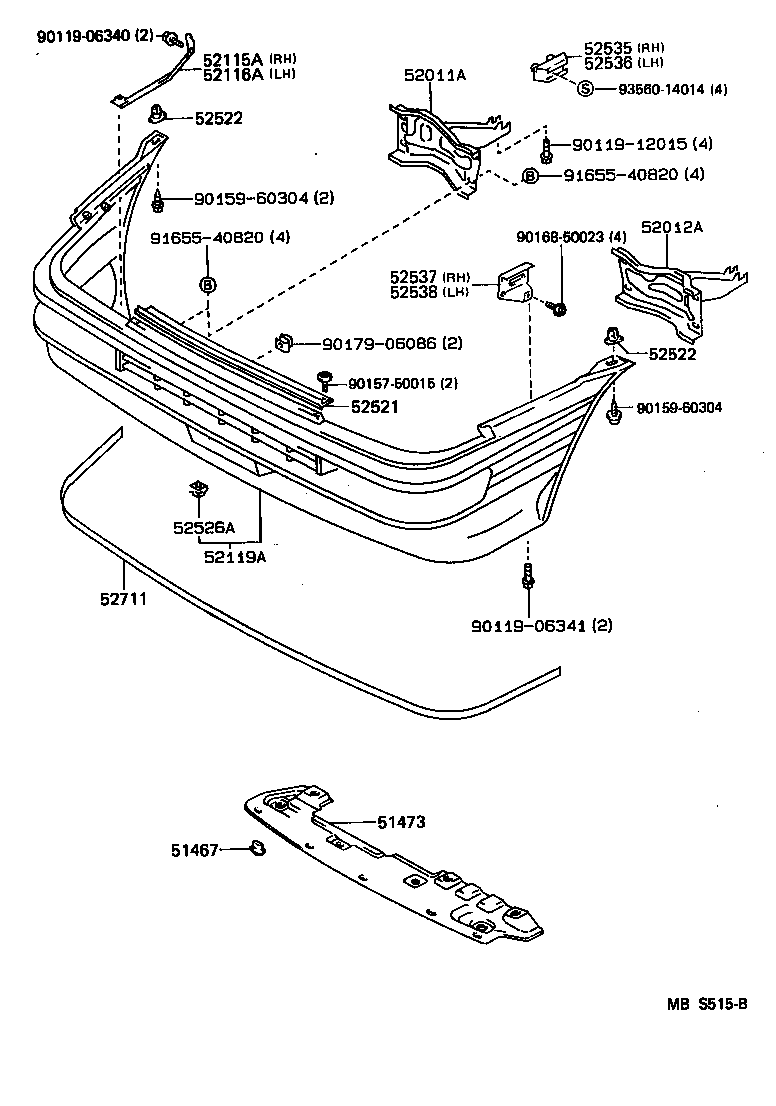

Figure NB0021 NB0021 1987-05 → 1989-05 Figure MBS515B MBS515B 1989-05 → —

Part groups

PNCDescription
51467 Retainer, Engine Under Cover
51473 Cover, Engine Under, NO.5 Front
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52526A Retainer, Front Bumper, Lower NO.1
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
