Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

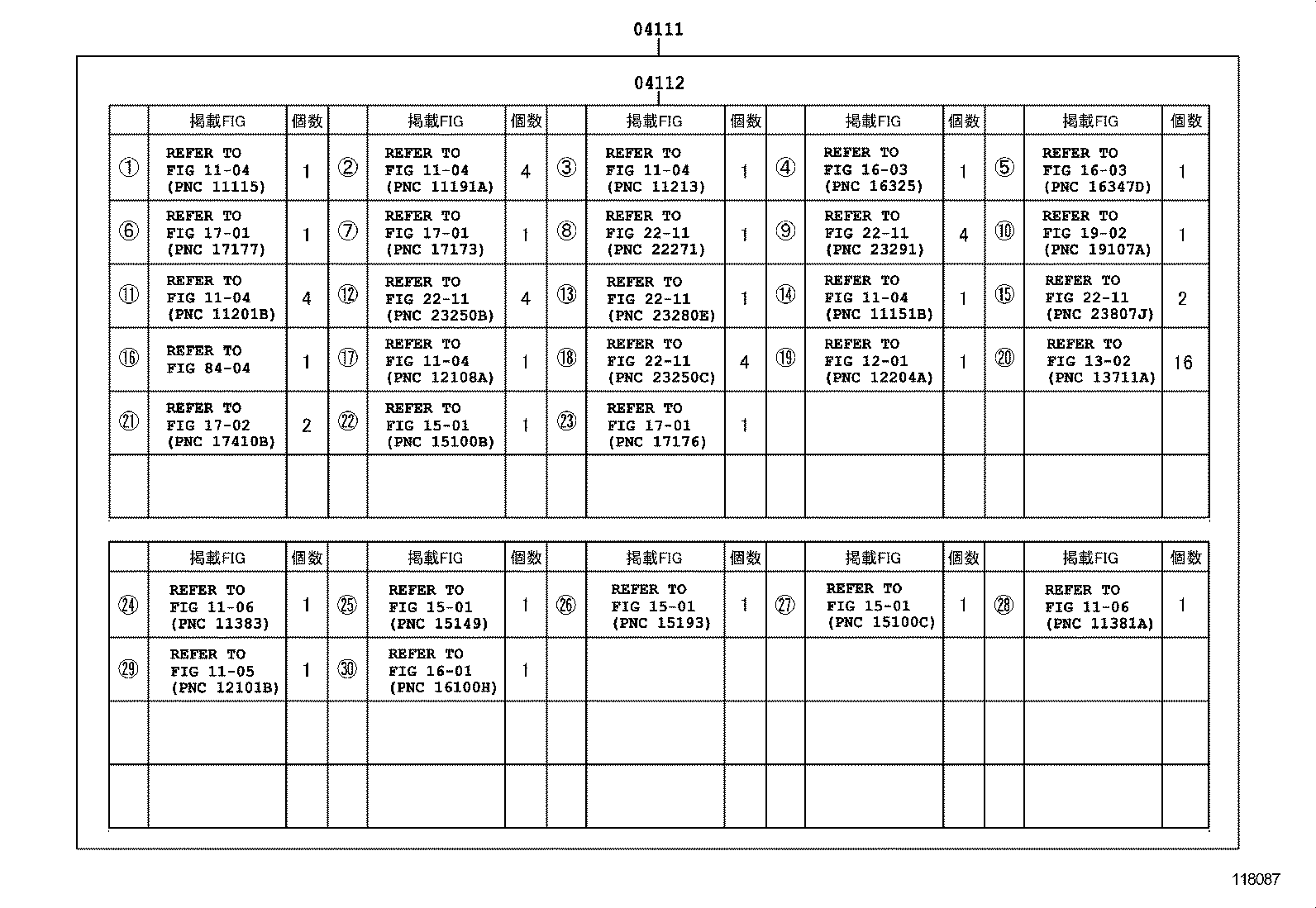

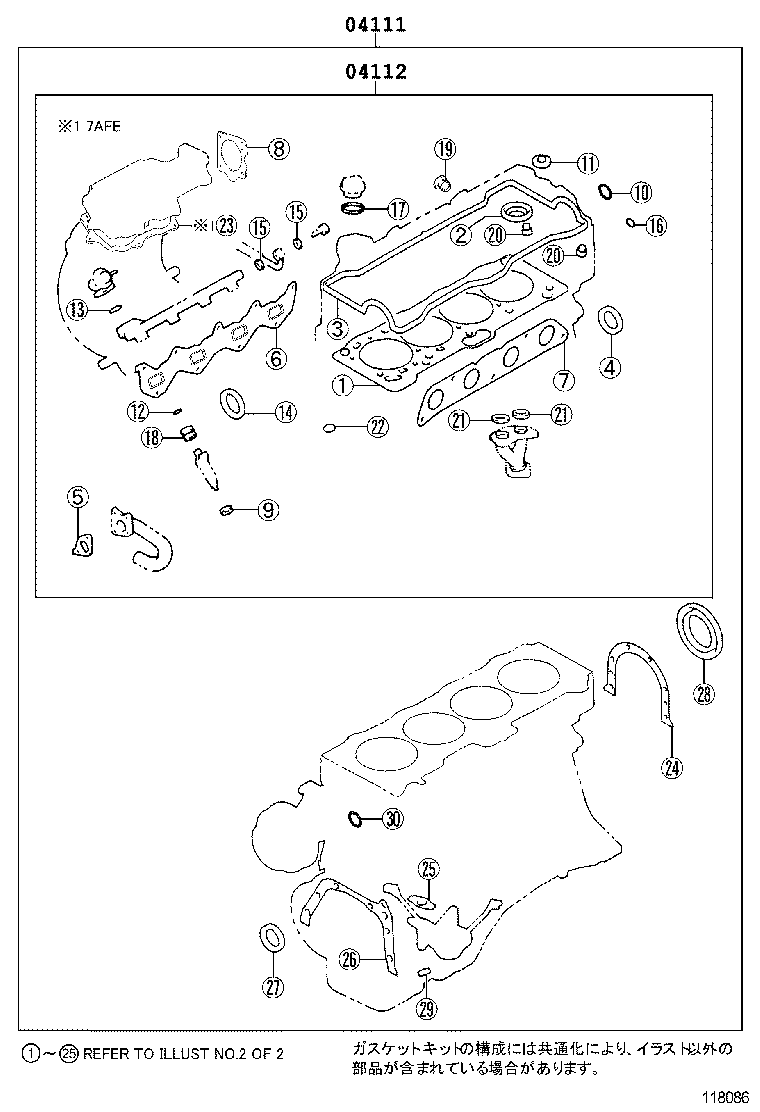

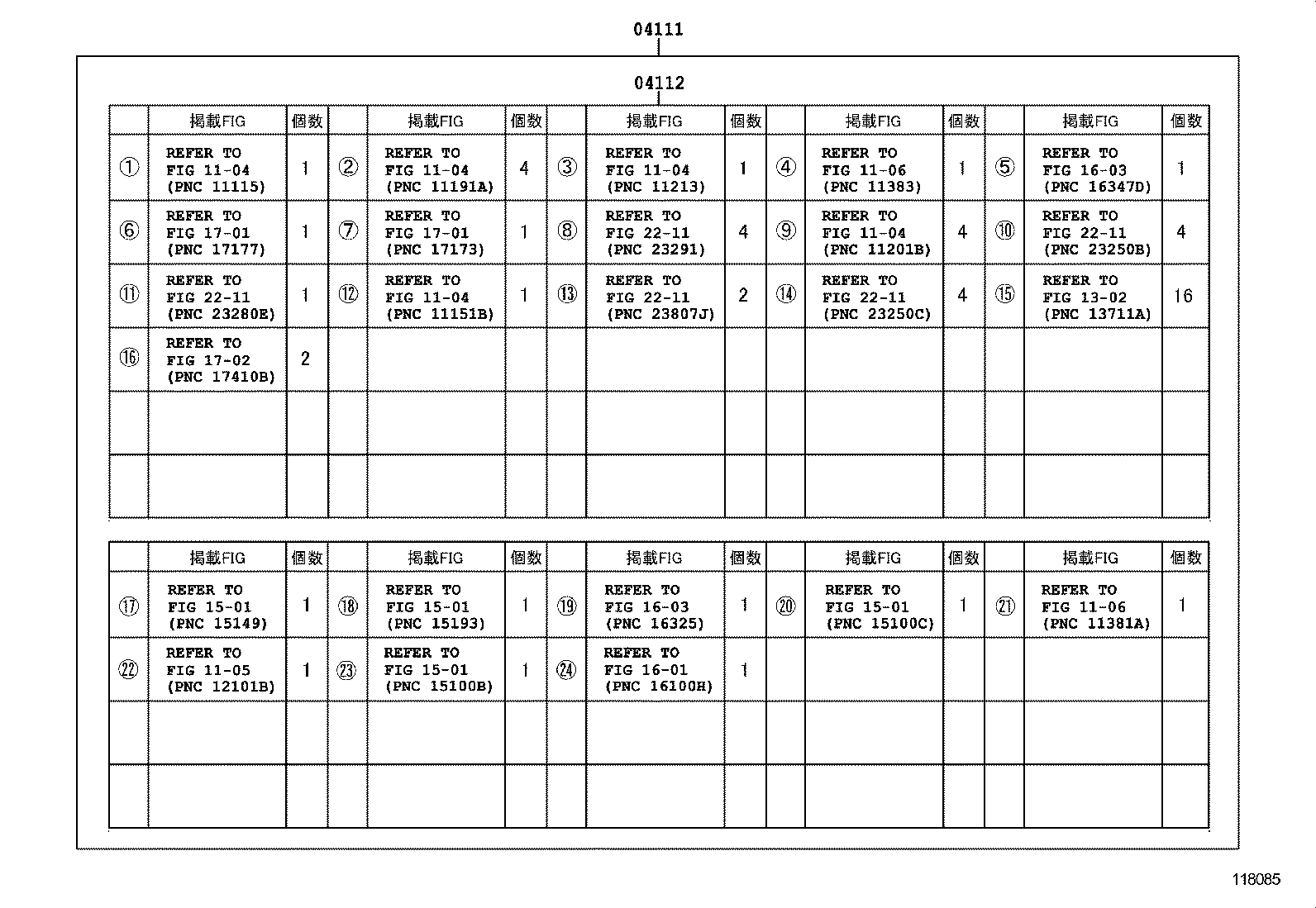

Figure 118079 118079 1997-01 → 1999-04 Figure 118085 118085 1997-01 → 1999-04 Figure 118086 118086 1999-04 → — Figure 118087 118087 1999-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
