Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

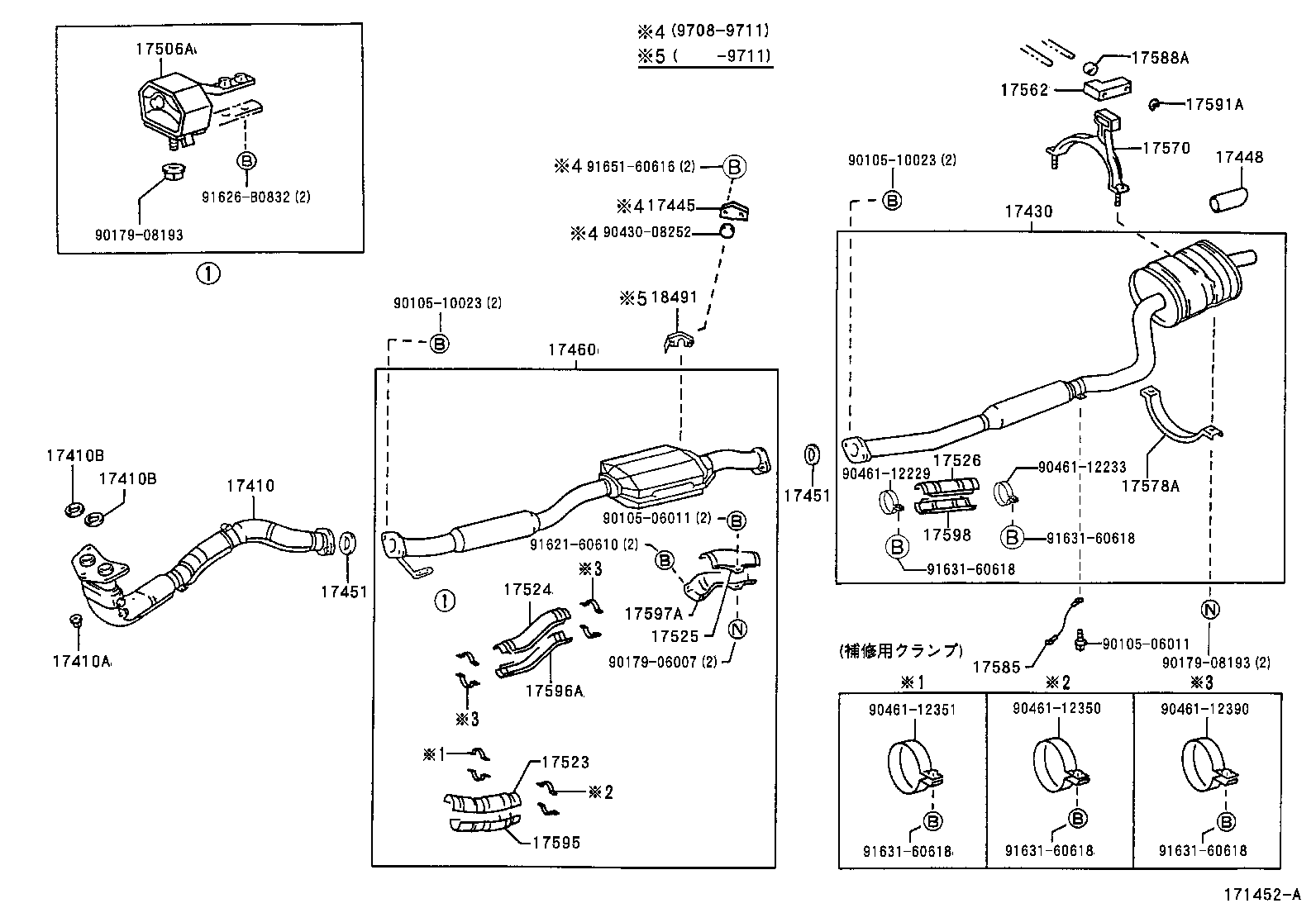

Exhaust Pipe
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17445 | Collar, Exhaust Pipe |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17452A | Clamp, Exhaust Pipe |
| 17460 | Converter Assy, Catalytic W/Pipe |
| 17504 | Bracket Sub-assy, Catalytic Converter |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17523 | Protector, Exhaust Pipe, Upper NO.3 |
| 17524 | Protector, Exhaust Pipe, Upper NO.4 |
| 17525 | Protector, Exhaust Pipe, Upper NO.5 |
| 17526 | Protector, Exhaust Pipe, Upper NO.6 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17570 | Bracket Assy, Exhaust Pipe Support |
| 17578A | Clamp, Muffler |
| 17585 | Hanger, Exhaust Pipe |
| 17588A | Spacer, Exhaust Pipe Hanger |
| 17591A | Stopper, Exhaust Pipe Support |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 17596A | Protector, Exhaust Pipe, Lower NO.4 |
| 17597A | Protector, Exhaust Pipe, Lower NO.5 |
| 17598 | Protector, Exaust Pipe, Lower NO.6 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
