Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

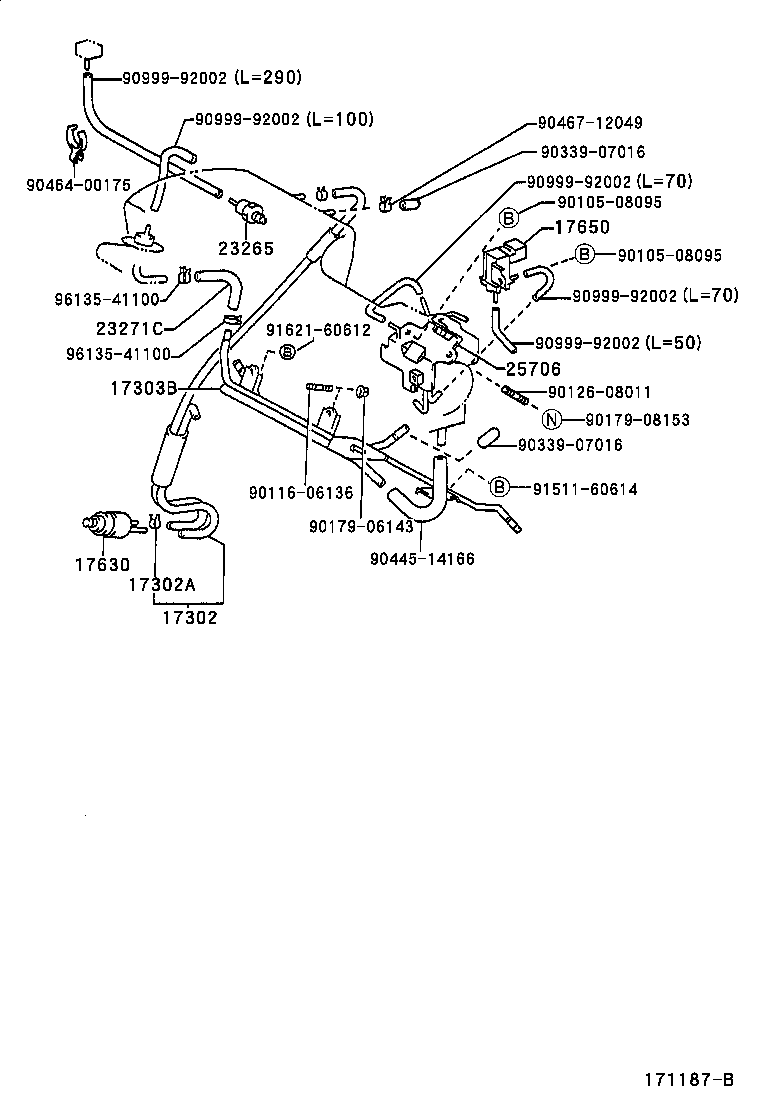

Vacuum Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17302A | Clip, Hose |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23271C | Hose, Fuel |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
