Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

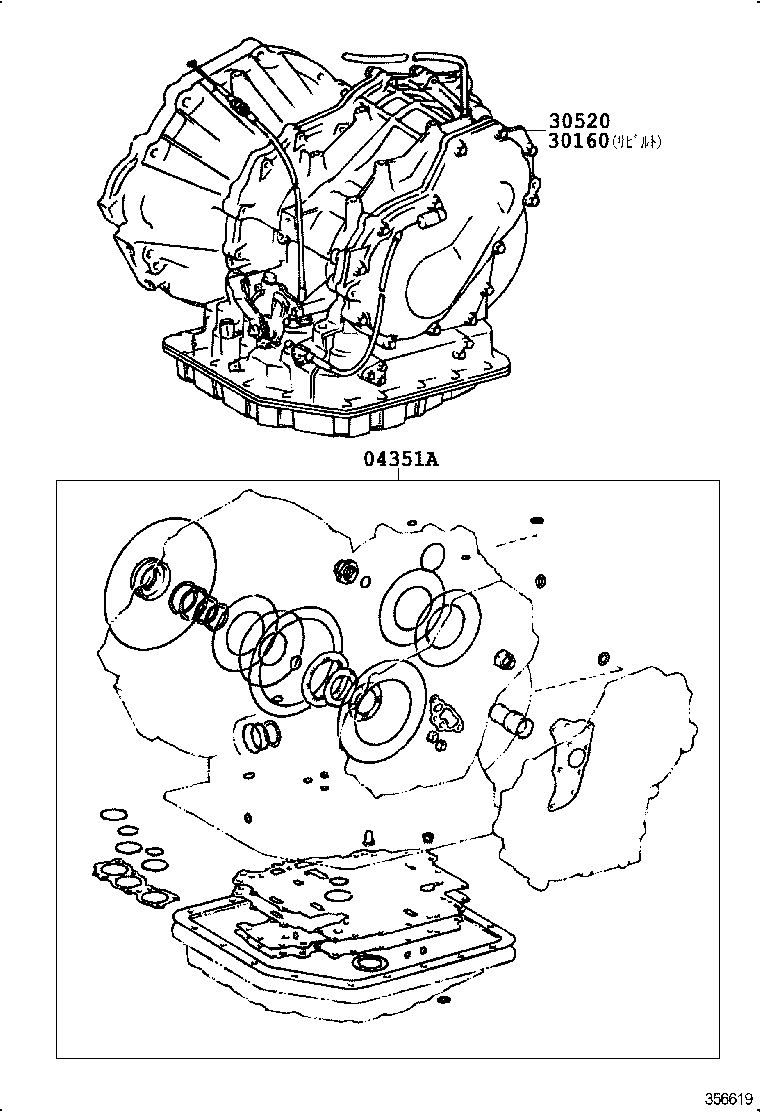

Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04351A | Gasket Kit, Transaxle Overhaul(ATM) |
| 30130 | Transaxle Assy, Rebuilt |
| 30160 | Transaxle Assy, Automatic W/Transfer, Rebuilt |
| 30500 | Transaxle Assy, Automatic |
| 30520 | Transaxle Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
