Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

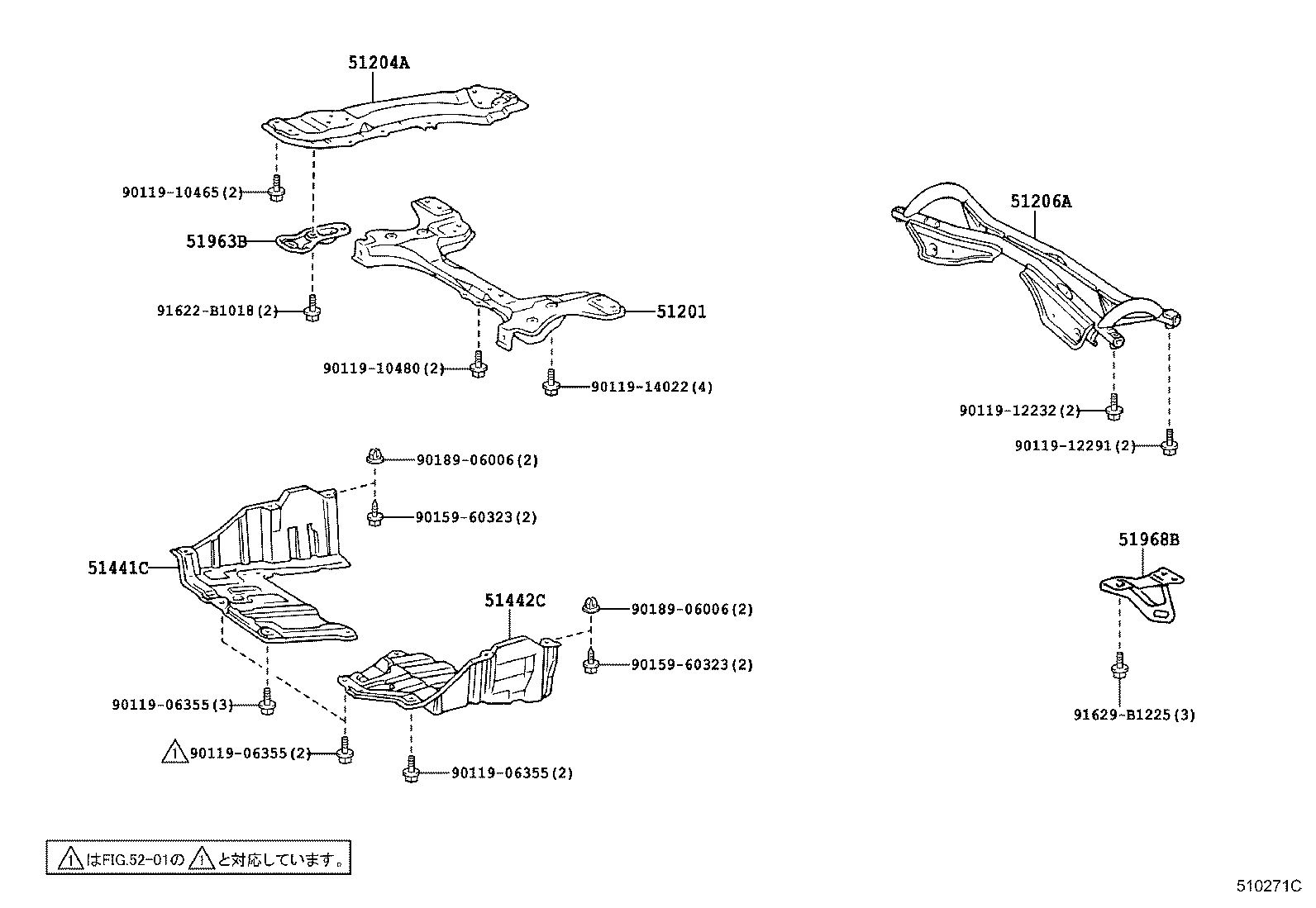

Figure 510069D 510069D 1997-01 → — Figure 510271C 510271C 1997-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51963B Hook, Transport, Front RH
51968B Hook, Transport, Rear LH
52295 Brace, Rear Suspension Member, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
