Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

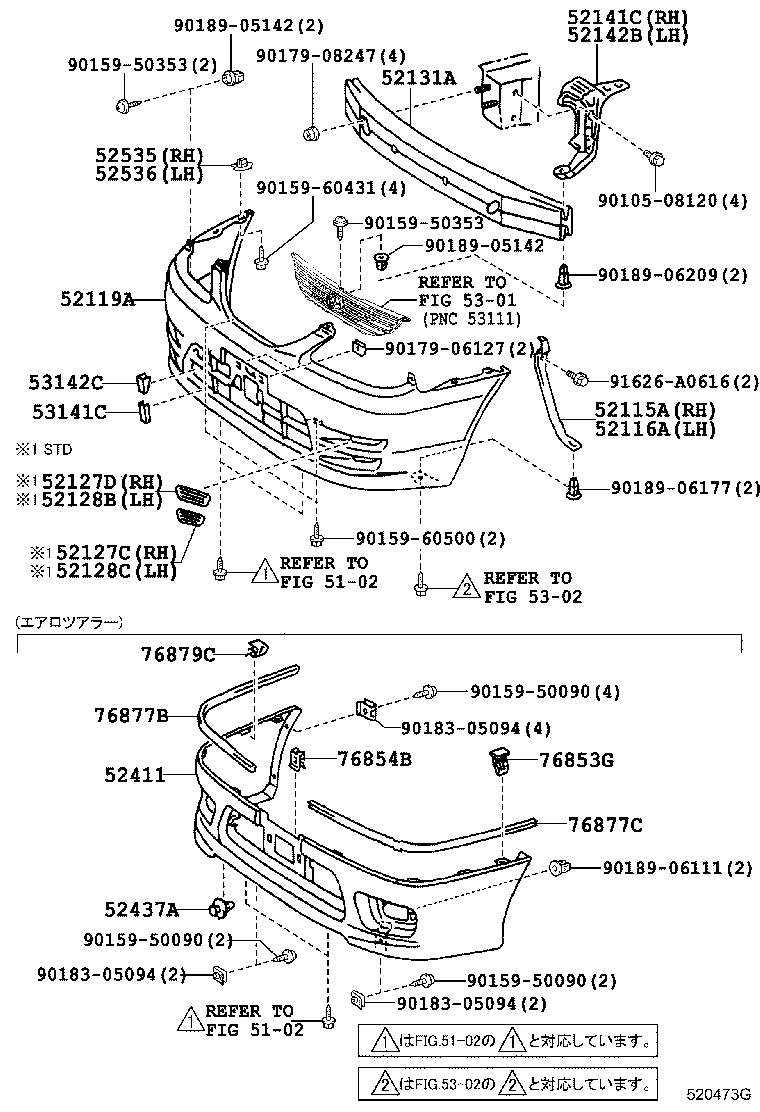

Front Bumper & Bumper Stay
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52131A | Reinforcement, Front Bumper |
| 52141C | Arm, Front Bumper, RH |
| 52142B | Arm, Front Bumper, LH |
| 52406A | Garnish Sub-assy, Front Bumper Guard |
| 52411 | Guard, Front Bumper |
| 52437A | Retainer, Front Bumper Guard Cover |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713 | Plug, Front Bumper Moulding |
| 53141C | Garnish, Radiator Grille |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 76853G | Retainer, Front Bumper Guard, NO.1 |
| 76854B | Retainer, Front Spoiler,NO.2 |
| 76877B | Front Spoiler Bumper Guard |
| 76877C | Front Spoiler Bumper Guard |
| 76879C | Clip, Front Bumper Guard, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
