Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

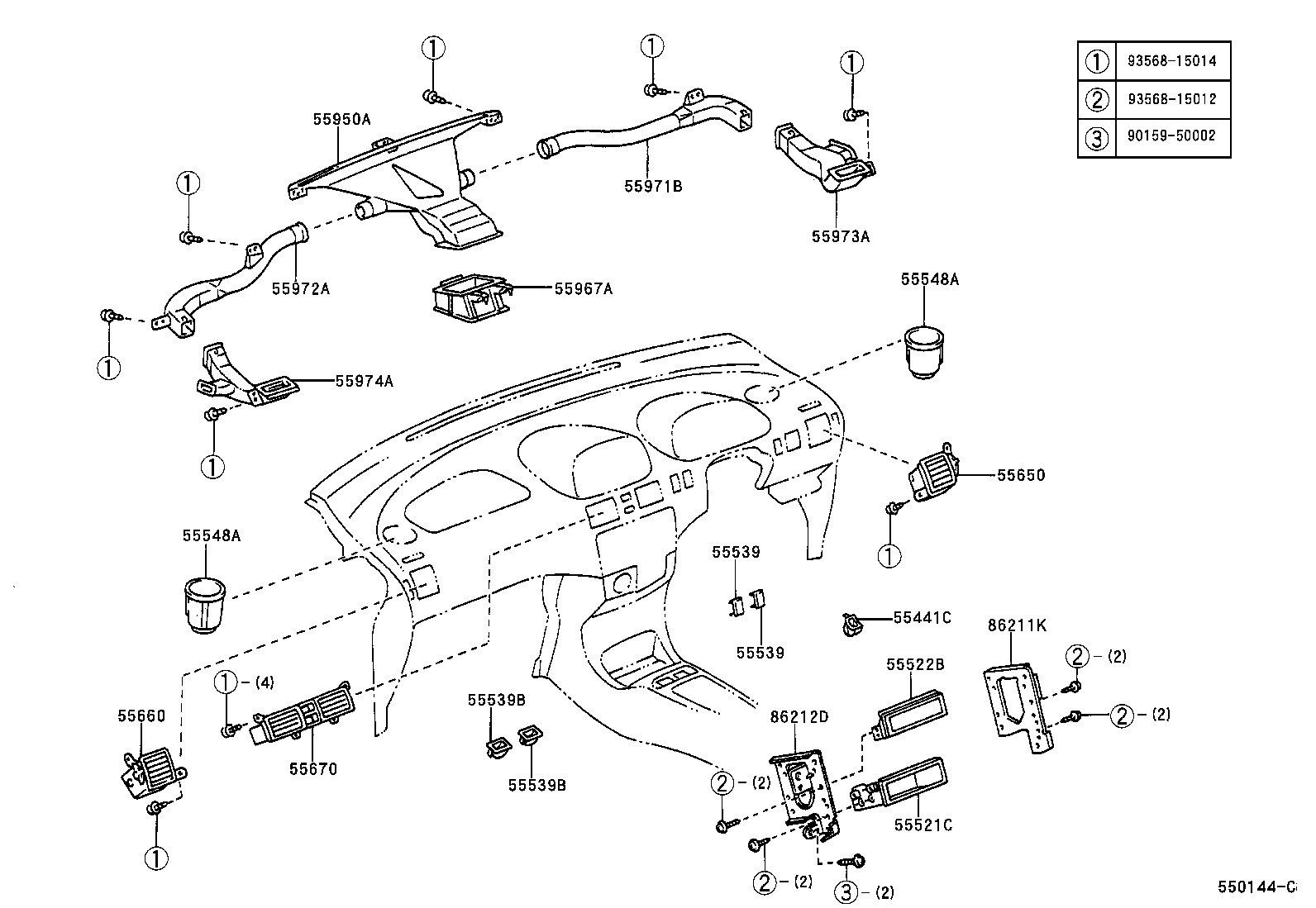

Instrument Panel & Glove Compartment
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55425B | Reinforcement, Instrument Cluster Finish Panel |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55464C | Insert, Instrument Panel Lower Pad, RH |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55548A | Cover, Instrument Panel Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55967A | Nozzle, Defroster, Lower |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55973A | Duct, Side Defroster Nozzle, NO.3 |
| 55974A | Duct, Side Defroster Nozzle, NO.4 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 86211K | Bracket, Stereo Opening Cover, RH |
| 86212D | Bracket, Stereo Opening Cover, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
