Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 3 illustrations

Illustrations

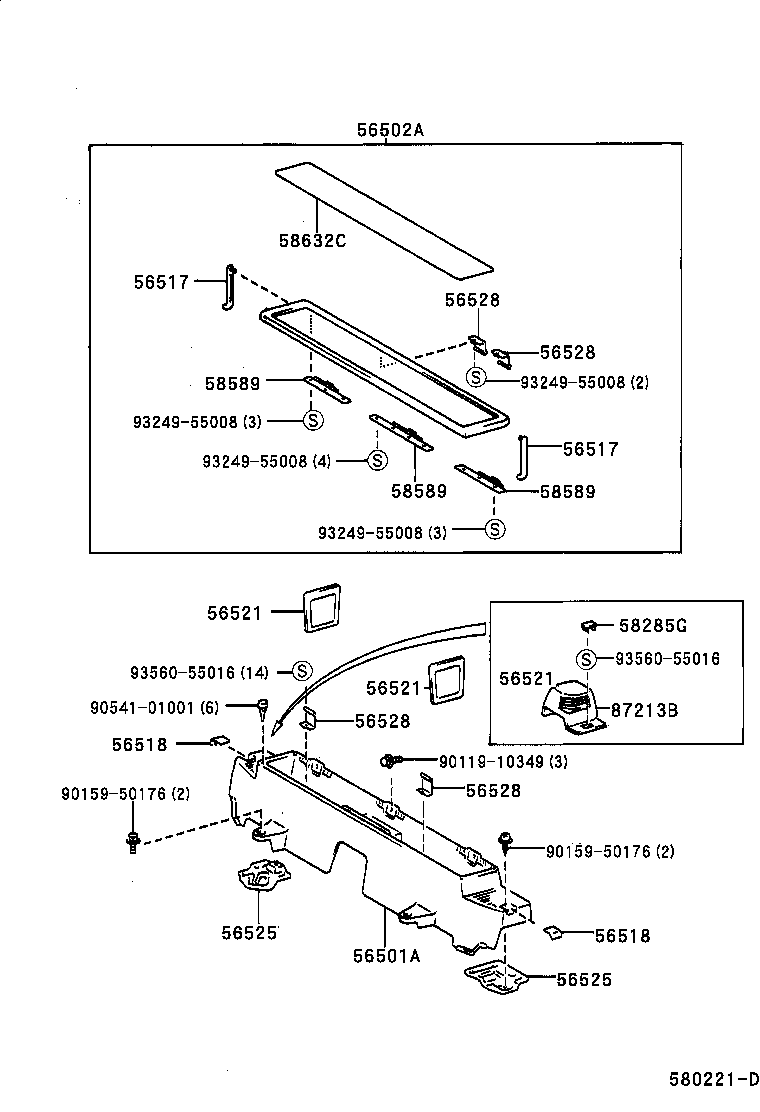

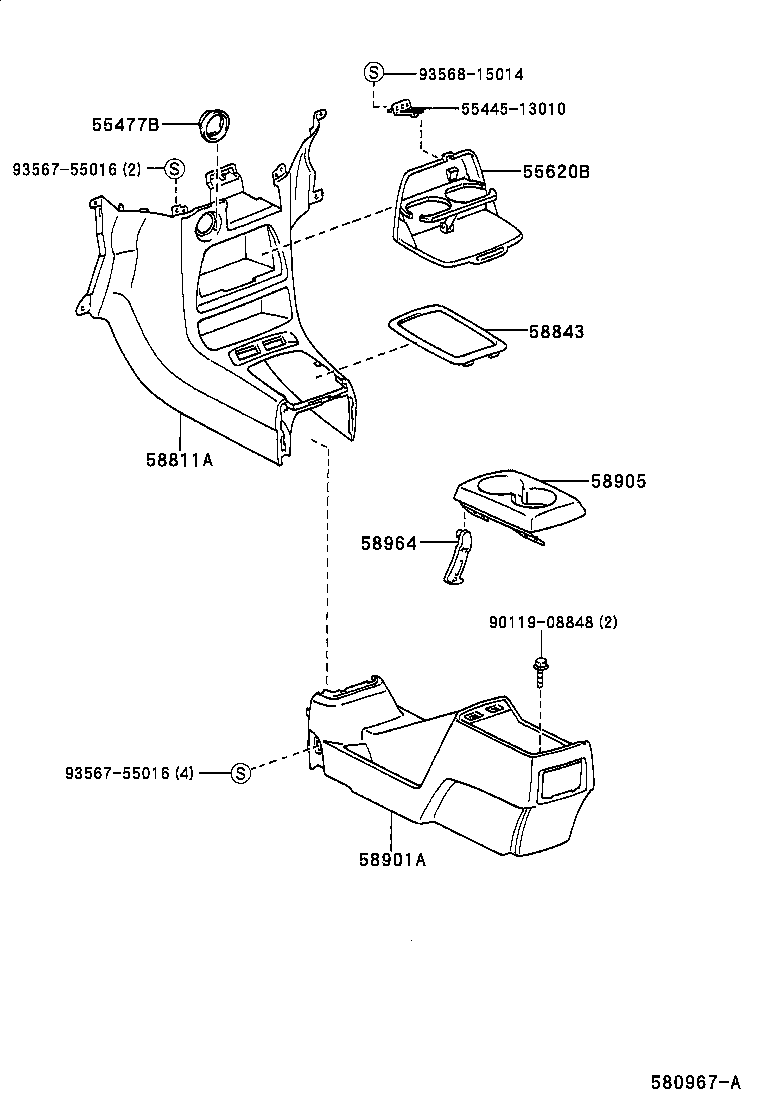

Figure 580220A 580220A 1997-01 → — Figure 580967A 580967A 1999-04 → — Figure 580221D 580221D 1997-01 → —

Part groups

PNCDescription
55477B Bezel, Cigarette Lighter Hole
55620B Holder, Instrument Panel Cup
56501A Cabinet Sub-assy
56502A Case Sub-assy, Cabinet
56517 Stopper, Cabinet Case
56518 Protector, Cabinet Panel Corner
56521 Panel, Cabinet, NO.1
56525 Reinforcement, Cabinet Panel
56528 Guide, Cabinet Case
58285G Cover, Rear Floor Hole
58589 Hinge, NO.3 Seat Leg Space Pocket Cover
58632C Cover, Seat Floor Box
58811A Box, Console, Front
58843 Bezel, Shifting Hole
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58923A Panel, Console Rear End
58964 Stopper, Console Compartment Door, NO.1
87213B Duct, Air, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
