Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

25 part groups · 3 illustrations

Illustrations

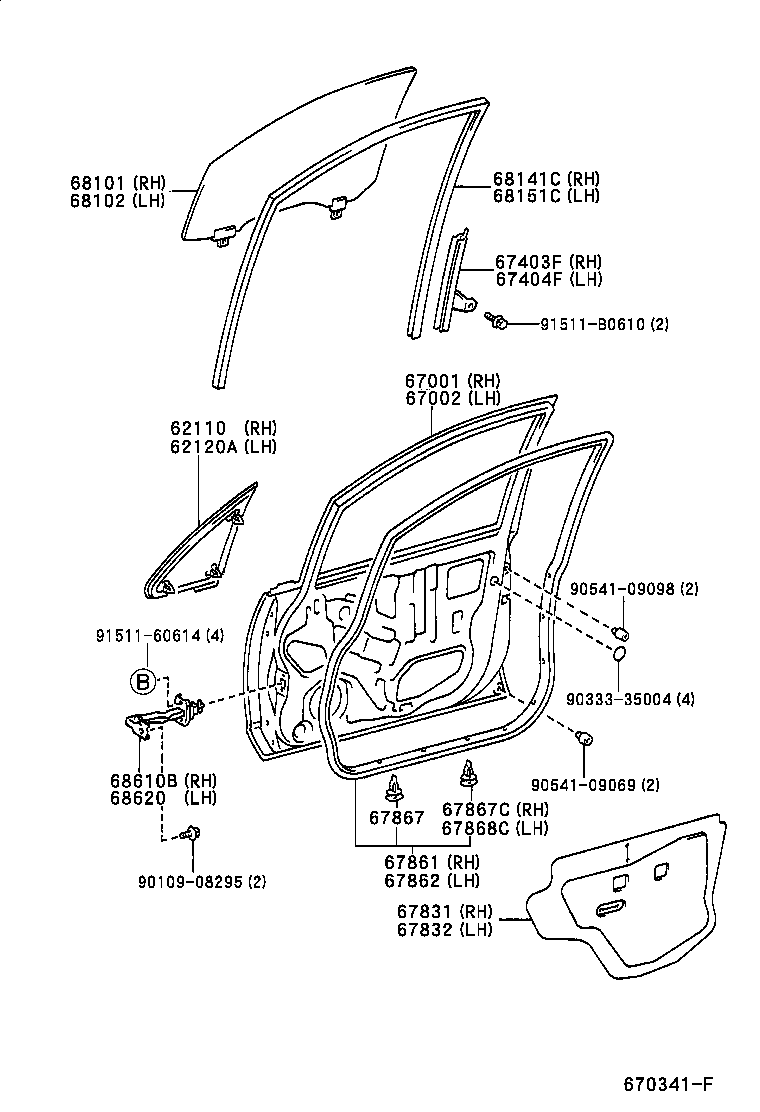

Figure 670344 670344 1997-01 → — Figure 670341F 670341F 1997-01 → — Figure 670592A 670592A 1997-01 → —

Part groups

PNCDescription
62110 Window Assy, Front Side Fix, RH
62120A Window Assy, Front Side Fix, LH
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491F Clip(FOR DOOR TRIM)
67601 Board Sub-assy, Front Door Trim, RH
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
