Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01

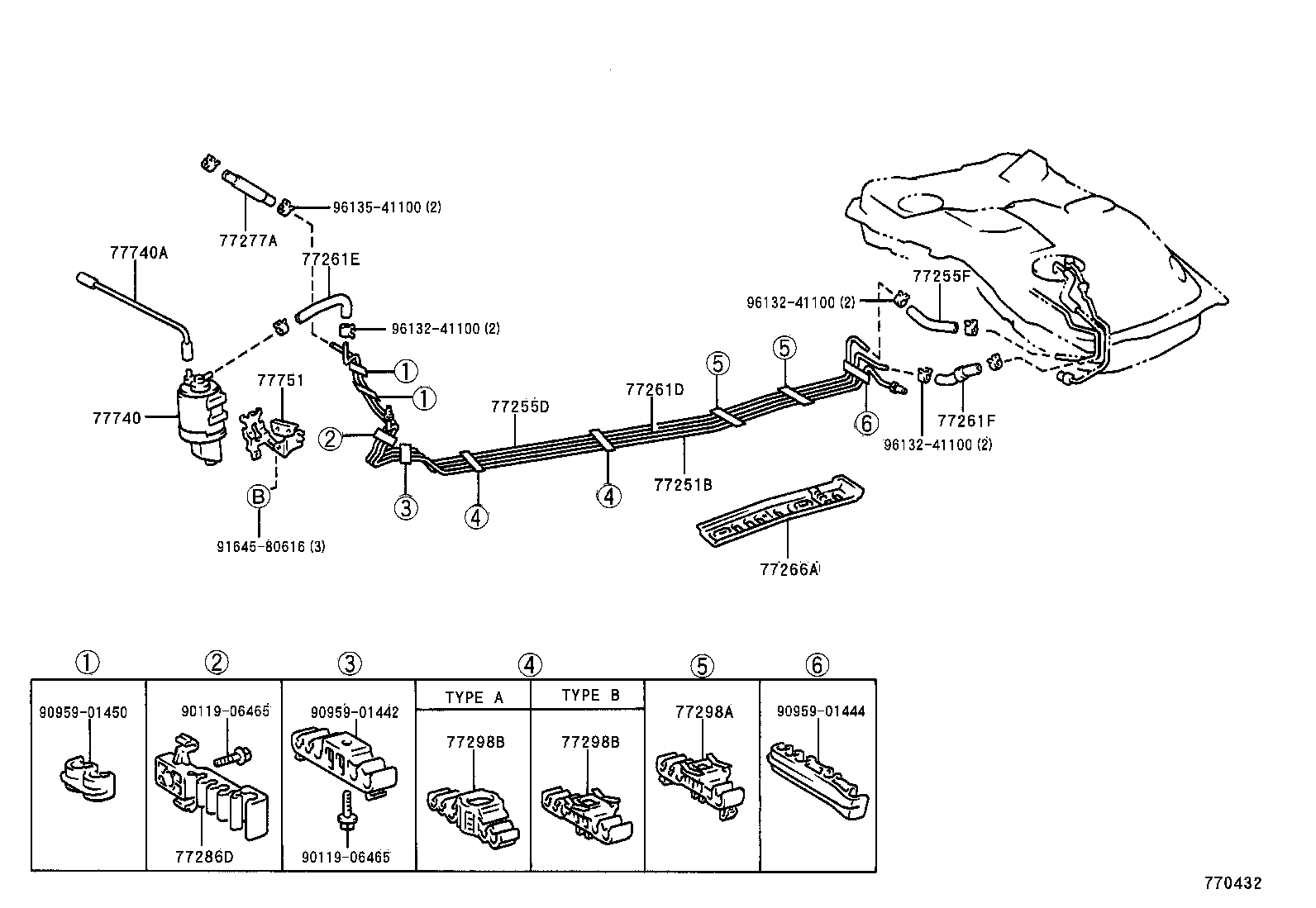

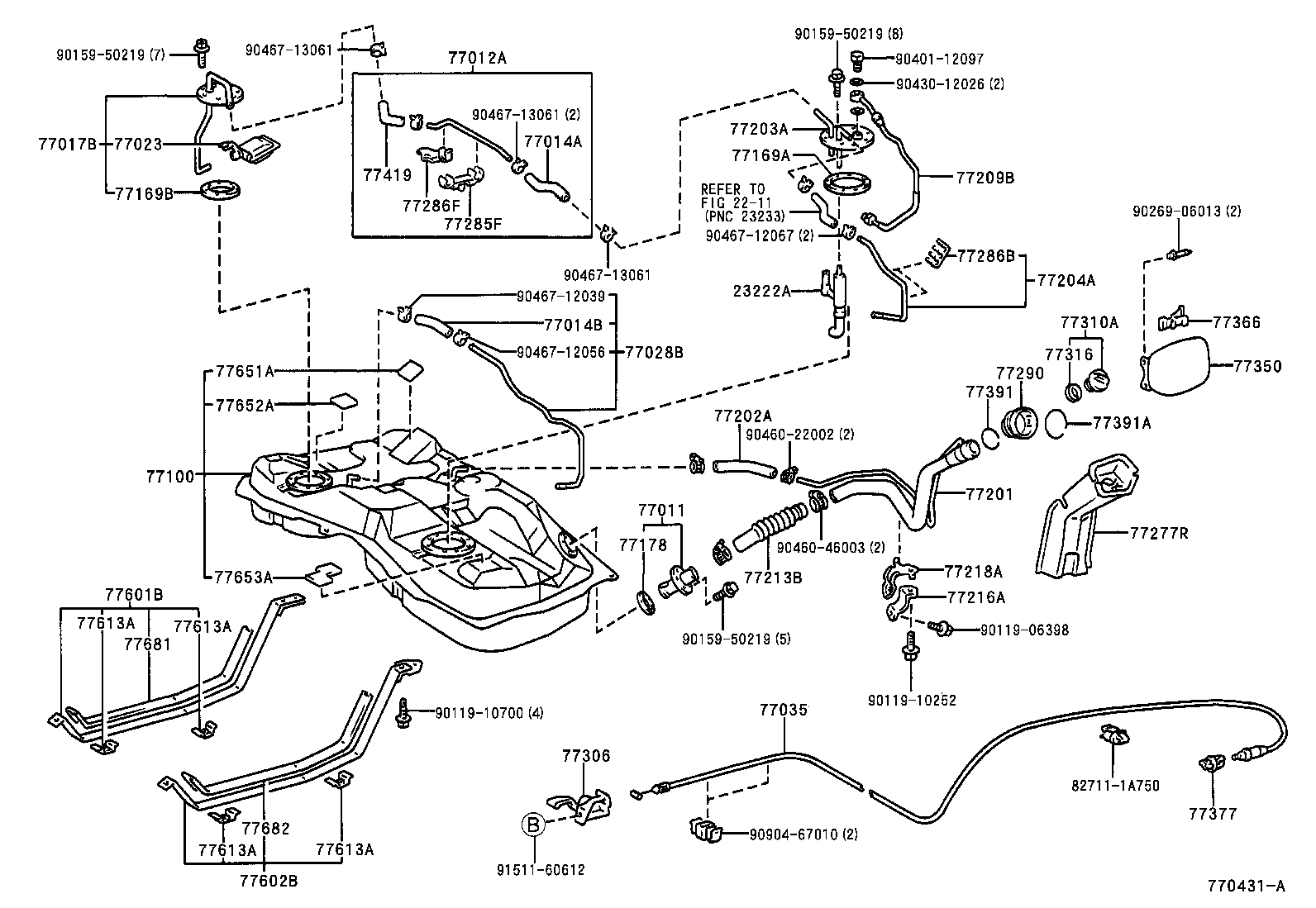

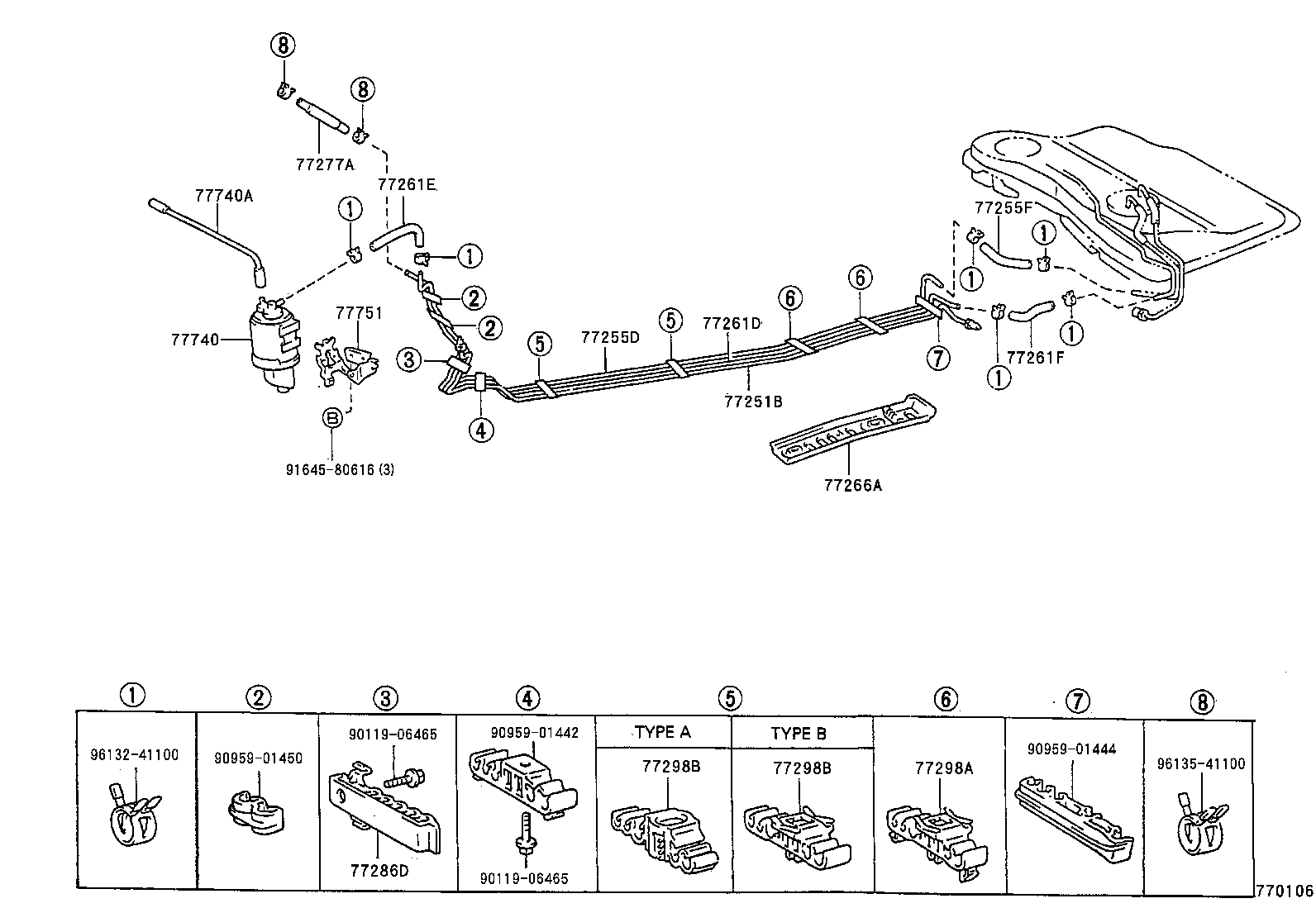

Fuel Tank & Tube
61 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23222A | Tube, Fuel Return Jet |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77014A | Tube Sub-assy, Fuel Tank Breather, NO.3 |
| 77014B | Hose, Fuel (FOR FUEL TANK BREATHER TUBE) |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77028B | Tube Sub-assy, Fuel Evaporation, NO.3 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77204A | Tube, Fuel Tank Return |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77419 | Hose, Fuel, NO.3 |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
