Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 2 illustrations

Illustrations

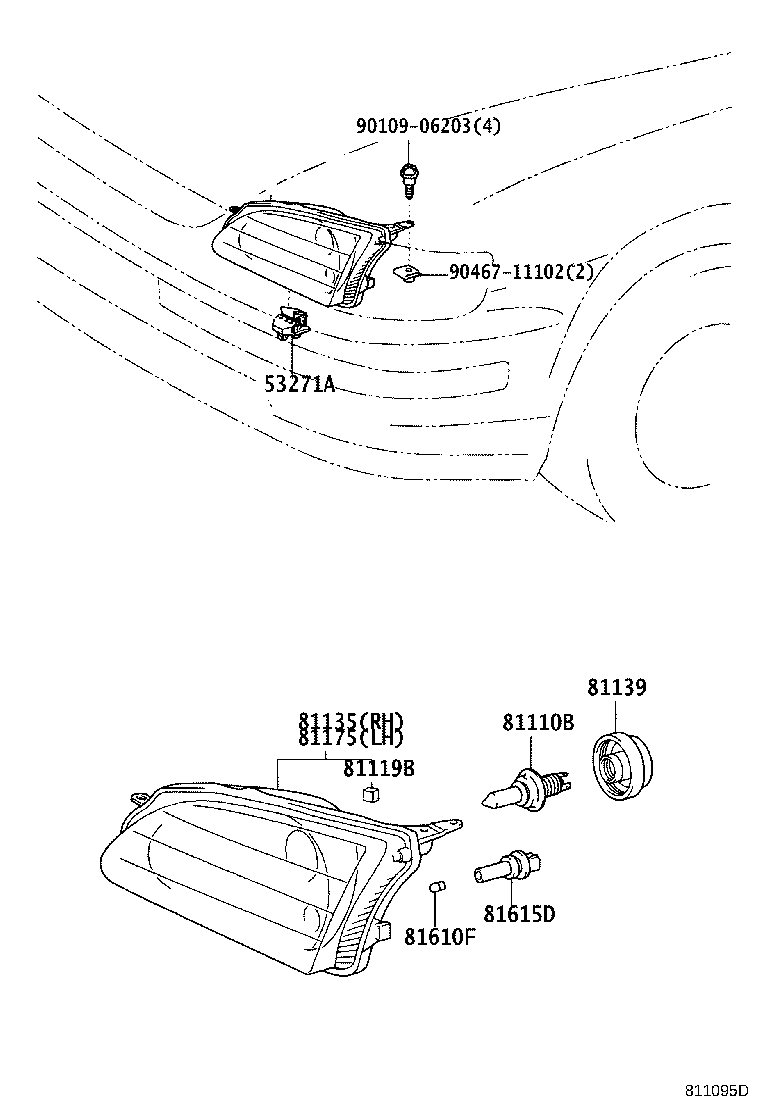

Figure 810228F 810228F 1997-01 → 1999-04 Figure 811095D 811095D 1999-04 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110B Bulb(FOR HEADLAMP, NO.1)
81110M Shade, Bulb, RH
81119B Filter, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81150M Shade, Bulb, LH
81175 Unit Assy, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
