Toyota Corolla Spacio

1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

7 part groups · 2 illustrations

Illustrations

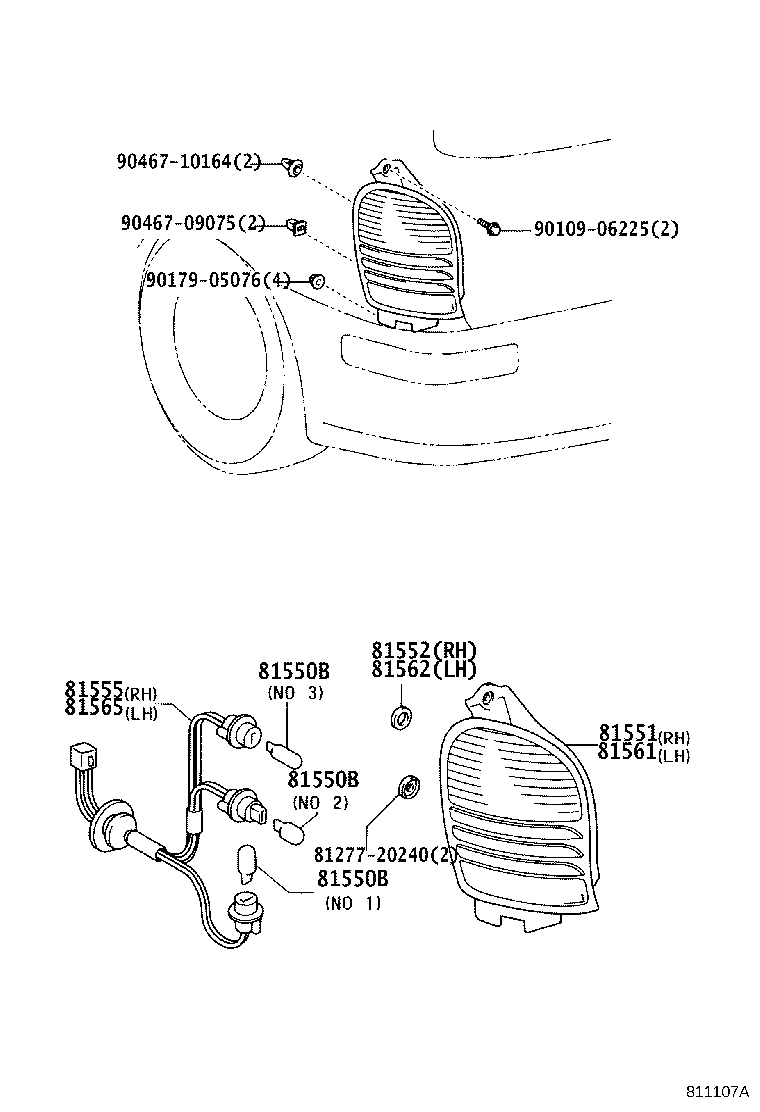

Figure 810232B 810232B 1997-01 → 1999-04 Figure 811107A 811107A 1999-04 → —

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
