Toyota Corolla Spacio
1997-01 → 2001-05 · chassis AE11# · catalogue 154140 · Japan
Discontinued model
Data version 2002-01
Heating & Air Conditioning - Control & Air Duct
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

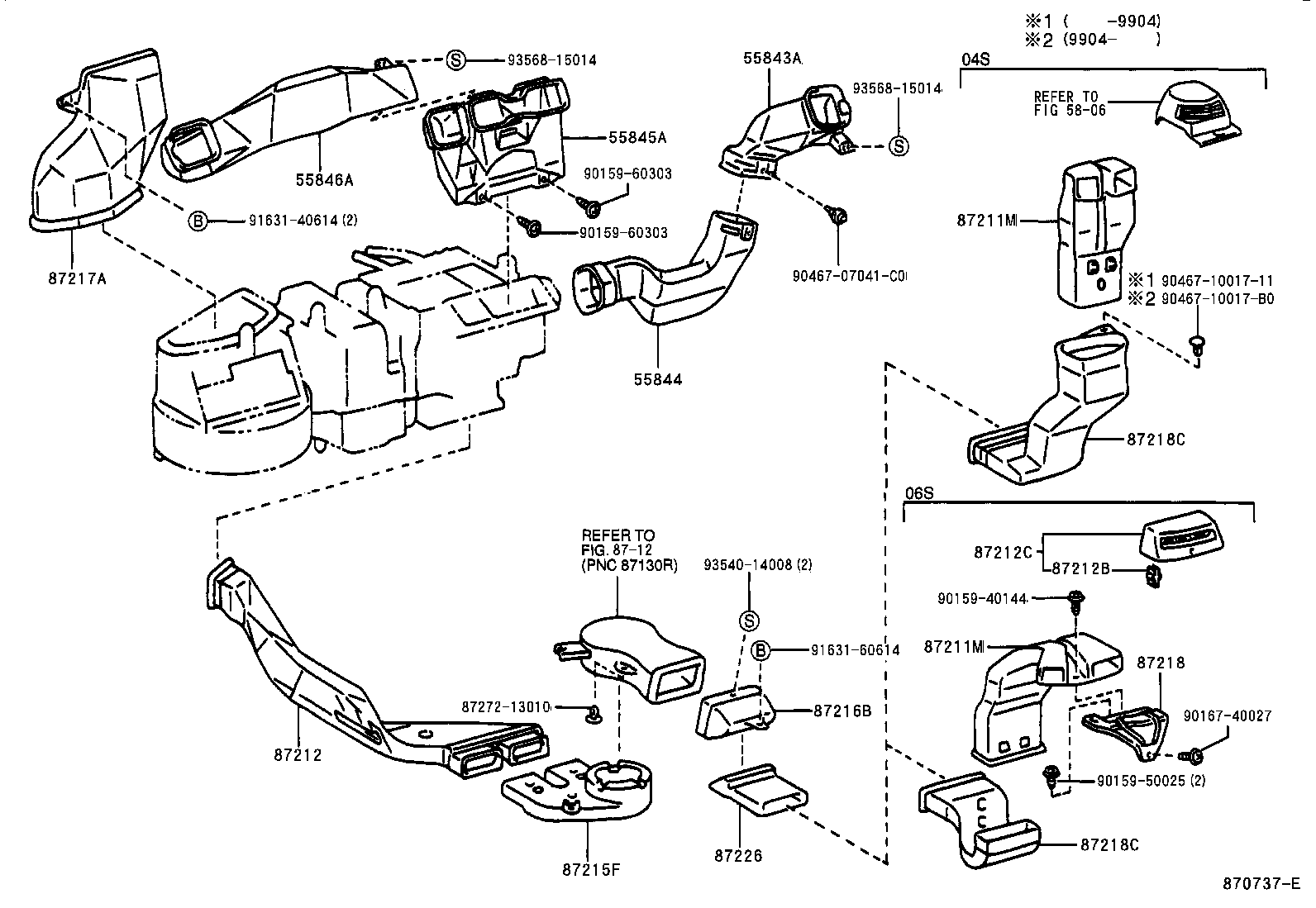

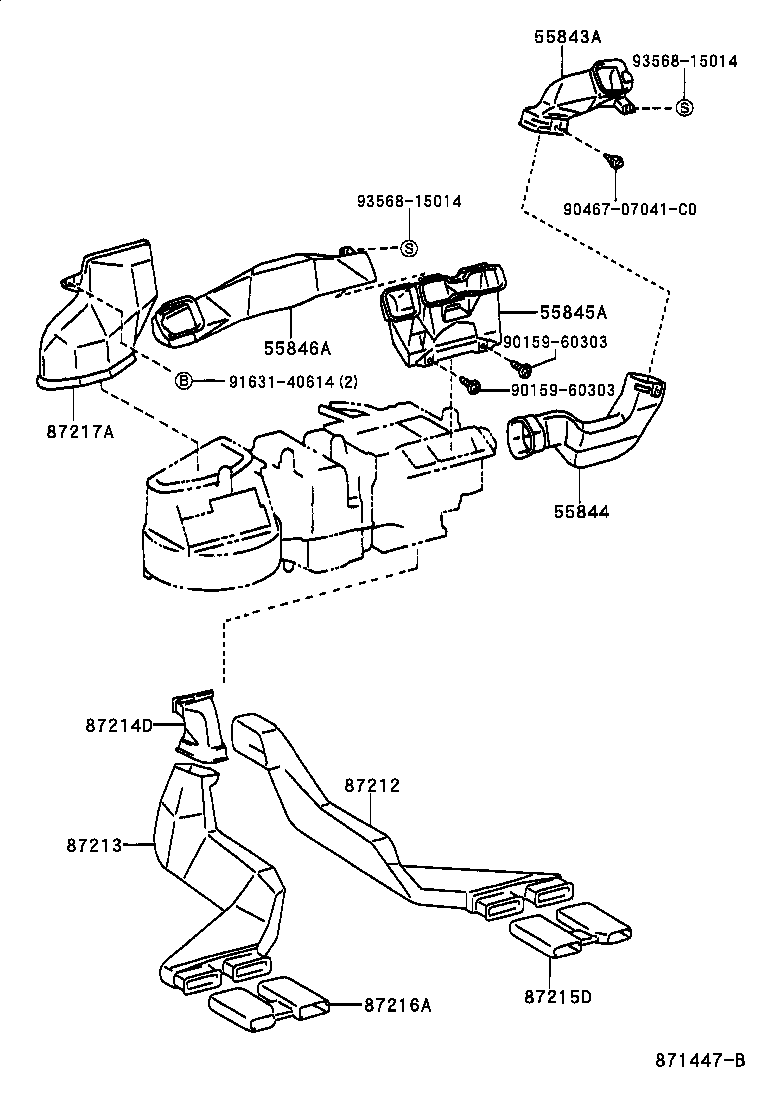

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55905C | Knob, Heater Control, NO.3 |
| 55905D | Knob Sub-assy, Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55910B | Bulb, Heater Control |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87211M | Duct, Foot Air, Rear |
| 87212 | Duct, Air, Rear NO.1 |
| 87212B | Clip, Air Duct |
| 87212C | Duct, Air, RR |
| 87213 | Duct, Air, Rear NO.2 |
| 87214D | Duct, Air, Rear NO.3 |
| 87215D | Duct, Air, Rear NO.4 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216A | Duct, Air, Rear NO.5 |
| 87216B | Duct, Air, Rear NO.4 |
| 87217A | Duct, Air, Rear NO.6 |
| 87218 | Bracket, Rear Air Duct |
| 87218C | Duct, Air, Rear NO.6 |
| 87226 | Adapter, Air Duct |

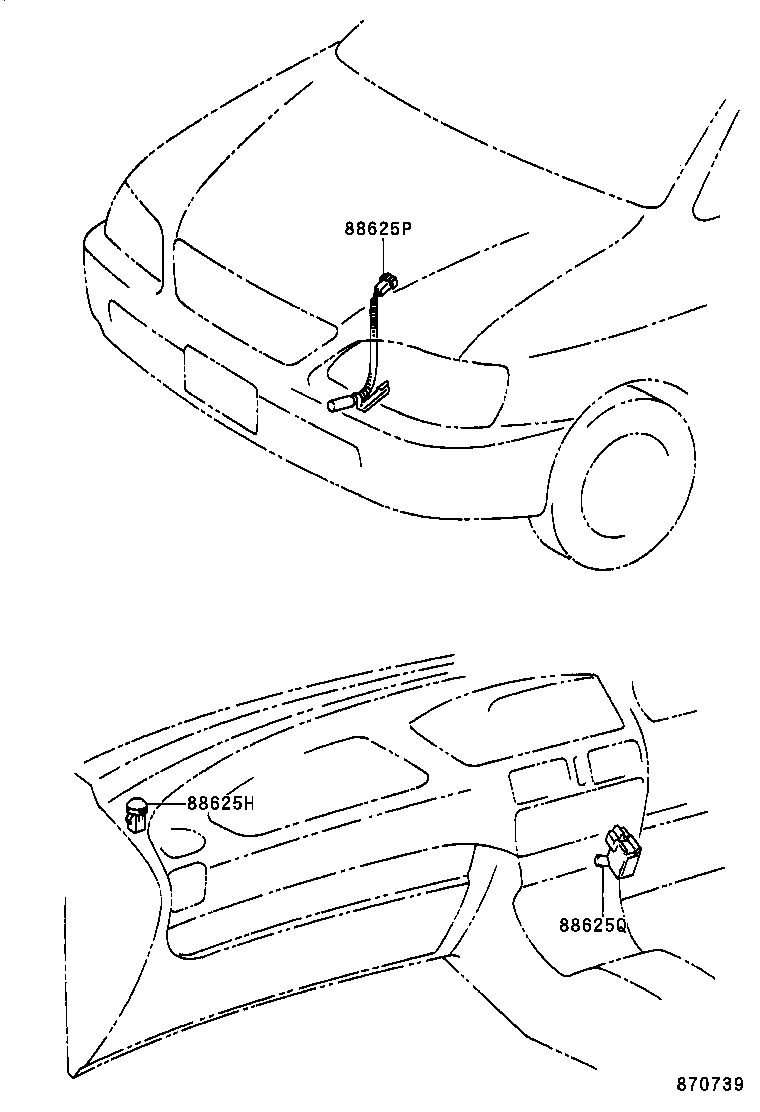

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
