Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

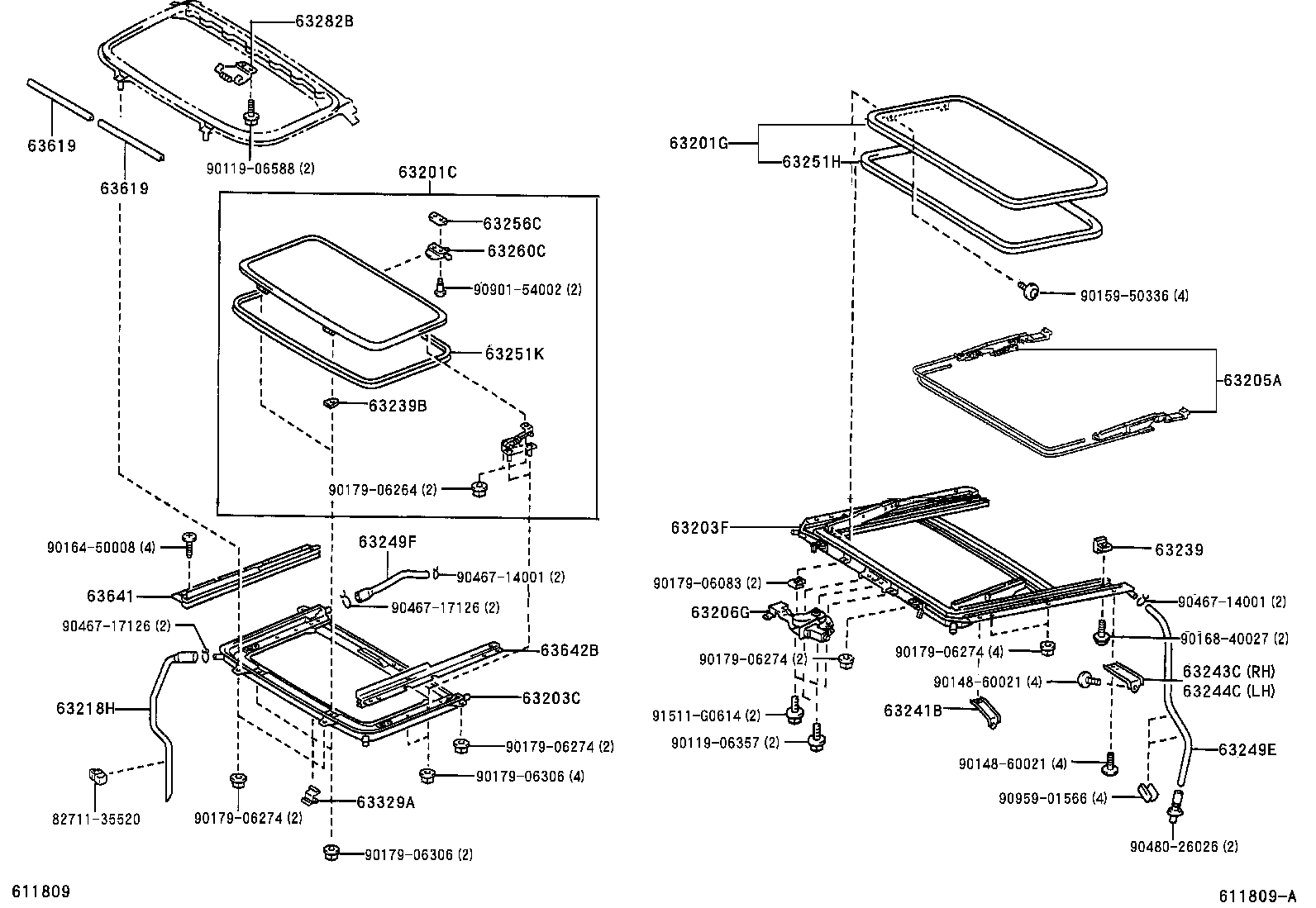

51 parts on this figure

Part number	Description	Fitment	Price
63201C — Glass Sub-assy, Tilt Roof
63201-13030 note	Glass Sub-assy, Tilt Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥49,700
63201-13030 note	Glass Sub-assy, Tilt Roof 2003-04 → 2003-10 ended	NZE121,ZZE12#	¥49,700
63201-13031 note	Glass Sub-assy, Tilt Roof 2003-10 → —	NZE121,ZZE12#	¥49,700
63201G — Glass Sub-assy, Sliding Roof
63201-13040 note	Glass Sub-assy, Sliding Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥56,000
63201-13040 note	Glass Sub-assy, Sliding Roof 2003-04 → 2003-10 ended	NZE121,ZZE12#	¥56,000
63201-13041 note	Glass Sub-assy, Sliding Roof 2003-10 → —	NZE121,ZZE12#	¥56,100
63203C — Housing Sub-assy, Tilt Roof
63203-44020	Housing Sub-assy, Tilt Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥22,100
63203-44020	Housing Sub-assy, Tilt Roof 2003-04 → —	NZE121,ZZE12#	¥22,100
63203F — Housing Sub-assy, Sliding Roof
63203-13040	Housing Sub-assy, Sliding Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥26,300
63203-13040	Housing Sub-assy, Sliding Roof 2003-04 → —	NZE121,ZZE12#	¥26,300
63205A — Cable Sub-assy, Sliding Roof Drive
63205-12150	Cable Sub-assy, Sliding Roof Drive 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥38,900
63205-12150	Cable Sub-assy, Sliding Roof Drive 2003-04 → —	NZE121,ZZE12#	¥38,900
63206G — Gear Sub-assy, Sliding Roof Drive
63260-13040	Gear Sub-assy, Sliding Roof Drive 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥47,100
63260-13040	Gear Sub-assy, Sliding Roof Drive 2003-04 → —	NZE121,ZZE12#	¥47,100
63218H — Hose, Sliding Roof Drain
63249-13070	Hose, Sliding Roof Drain 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥1,360
63249-13070	Hose, Sliding Roof Drain 2003-04 → —	NZE121,ZZE12#	¥1,360
63239 — Stopper, Sliding Roof Panel
63239-12030	Stopper, Sliding Roof Panel 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥170
63239-12030	Stopper, Sliding Roof Panel 2003-04 → —	NZE121,ZZE12#	¥170
63239B — Pad, Tilt Roof Glass
63239-26020	Pad, Tilt Roof Glass 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥110
63239-26020	Pad, Tilt Roof Glass 2003-04 → —	NZE121,ZZE12#	¥110
63241B — Bracket, Sliding Roof Housing, NO.1
63241-13020	Bracket, Sliding Roof Housing, NO.1 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥880
63241-13020	Bracket, Sliding Roof Housing, NO.1 2003-04 → —	NZE121,ZZE12#	¥880
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-52020	Bracket, Sliding Roof Housing Center Mounting, RH 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥610
63243-52020	Bracket, Sliding Roof Housing Center Mounting, RH 2003-04 → —	NZE121,ZZE12#	¥610
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63243-52020	Bracket, Sliding Roof Housing Center Mounting, LH 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥610
63243-52020	Bracket, Sliding Roof Housing Center Mounting, LH 2003-04 → —	NZE121,ZZE12#	¥610
63249E — Hose, Sliding Roof Drain
63249-13080	Hose, Sliding Roof Drain 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥1,360
63249-13080	Hose, Sliding Roof Drain 2003-04 → —	NZE121,ZZE12#	¥1,360
63249F — Hose, Sliding Roof Drain
63249-13090	Hose, Sliding Roof Drain 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥460
63249-13090	Hose, Sliding Roof Drain 2003-04 → —	NZE121,ZZE12#	¥460
63251H — Weatherstrip, Sliding Roof
63251-12160	Weatherstrip, Sliding Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥6,300
63251-12160	Weatherstrip, Sliding Roof 2003-04 → 2003-10 ended	NZE121,ZZE12#	¥6,300
63251-12161	Weatherstrip, Sliding Roof 2003-10 → —	NZE121,ZZE12#	¥7,100
63251K — Weatherstrip, Tilt Roof
63251-44010	Weatherstrip, Tilt Roof 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥4,960
63251-44010	Weatherstrip, Tilt Roof 2003-04 → 2004-04 ended	NZE121,ZZE12#	¥4,960
63251-44011	Weatherstrip, Tilt Roof 2004-04 → —	NZE121,ZZE12#	¥6,300
63256C — Seal, Tilt Roof Glass
63256-44010	Seal, Tilt Roof Glass 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥300
63256-44010	Seal, Tilt Roof Glass 2003-04 → —	NZE121,ZZE12#	¥300
63260C — Handle Assy, Tilt Roof Lock
63260-26030	Handle Assy, Tilt Roof Lock 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥2,380
63260-26030	Handle Assy, Tilt Roof Lock 2003-04 → —	NZE121,ZZE12#	¥2,380
63282B — Striker, Tilt Roof Lock
63282-13010	Striker, Tilt Roof Lock 2003-01 → 2003-04 ended	NZE121,ZZE12#	¥1,010
63282-44010	Striker, Tilt Roof Lock 2001-05 → 2003-01 ended	NZE121,ZZE12#	¥1,000
63282-13010	Striker, Tilt Roof Lock 2003-04 → —	NZE121,ZZE12#	¥1,010
63329A — Stopper, Sunshade Lock
63329-44030	Stopper, Sunshade Lock 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥310
63329-44030	Stopper, Sunshade Lock 2003-04 → —	NZE121,ZZE12#	¥310
63619 — Cover, Tilt Roof Panel
63619-44010	Cover, Tilt Roof Panel 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥650
63619-44010	Cover, Tilt Roof Panel 2003-04 → —	NZE121,ZZE12#	¥650
63641 — Rail, Sunshade, NO.1 Front RH
63641-13010	Rail, Sunshade, NO.1 Front RH 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥8,700
63641-13010	Rail, Sunshade, NO.1 Front RH 2003-04 → —	NZE121,ZZE12#	¥8,700
63642B — Rail, Sunshade, NO.1 Front LH
63642-13010	Rail, Sunshade, NO.1 Front LH 2001-05 → 2003-04 ended	NZE121,ZZE12#	¥8,700
63642-13010	Rail, Sunshade, NO.1 Front LH 2003-04 → —	NZE121,ZZE12#	¥8,700

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
