Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 6 illustrations

Illustrations

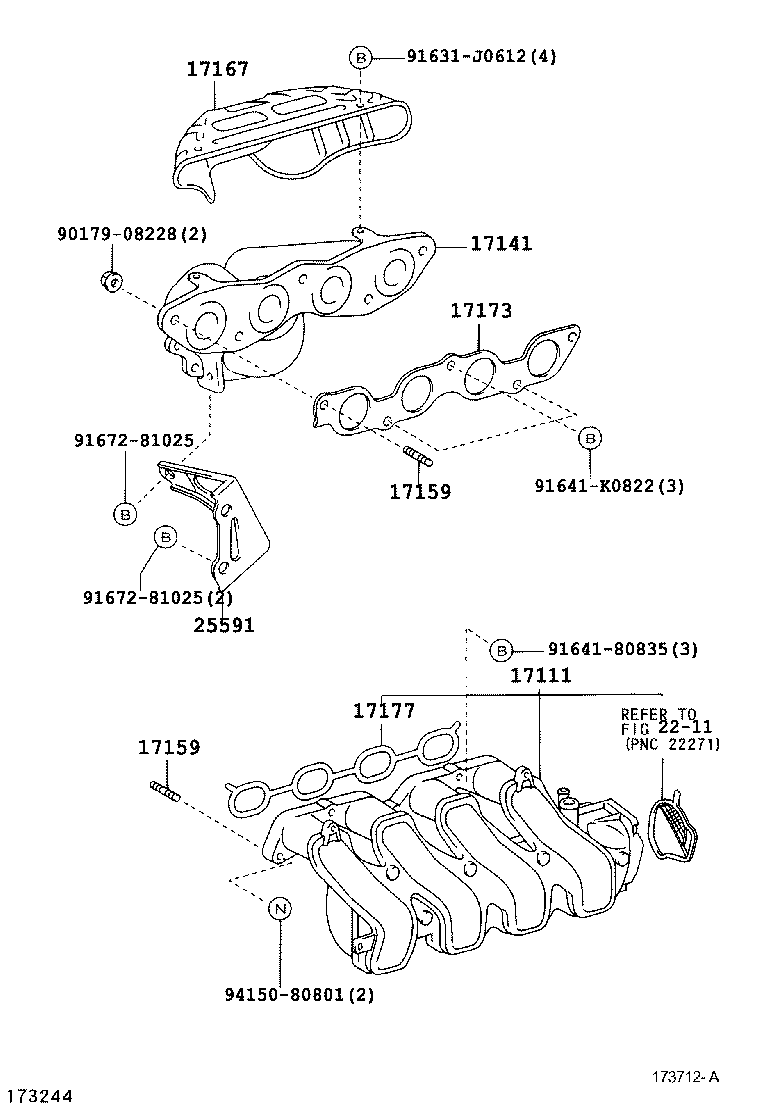

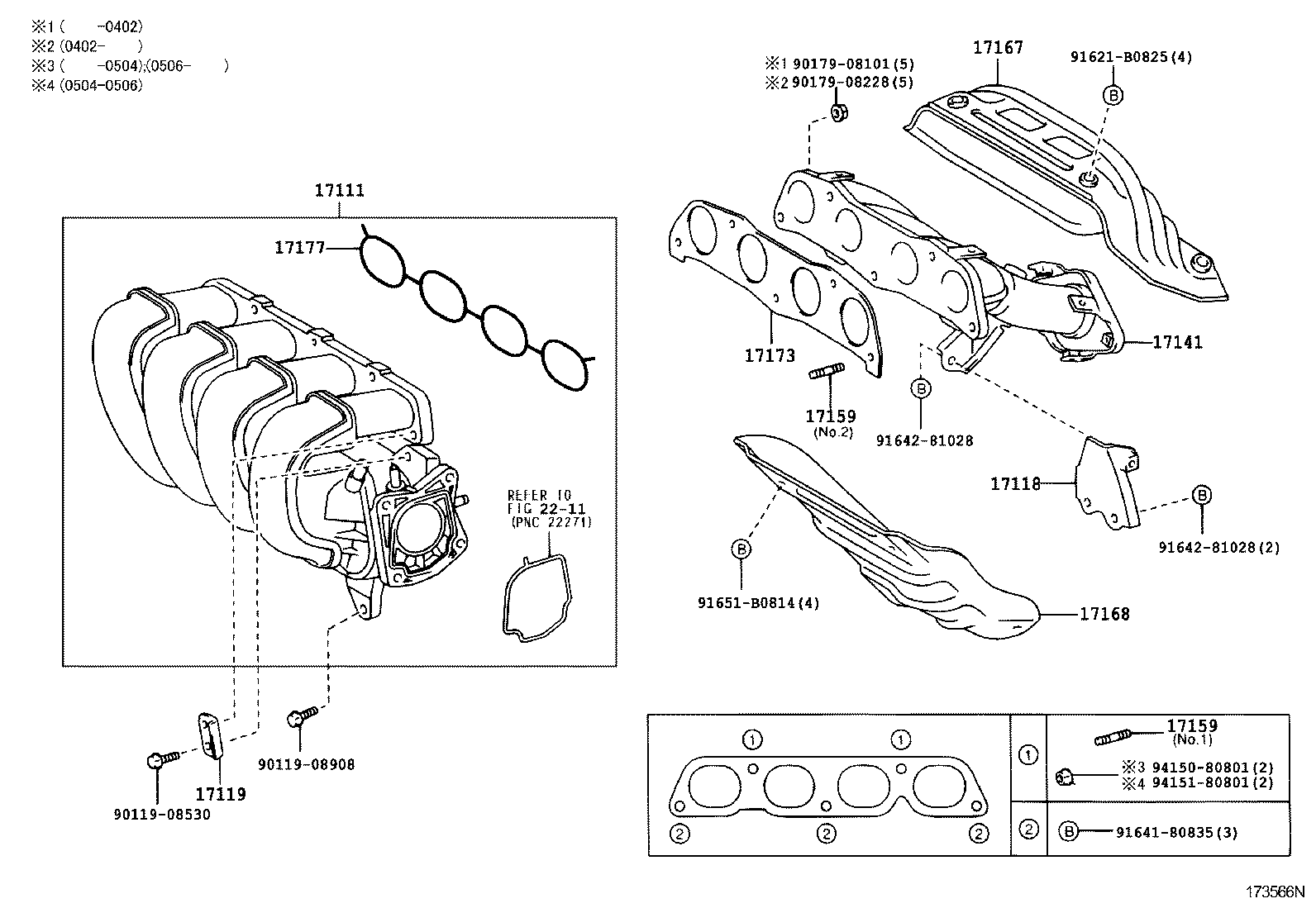

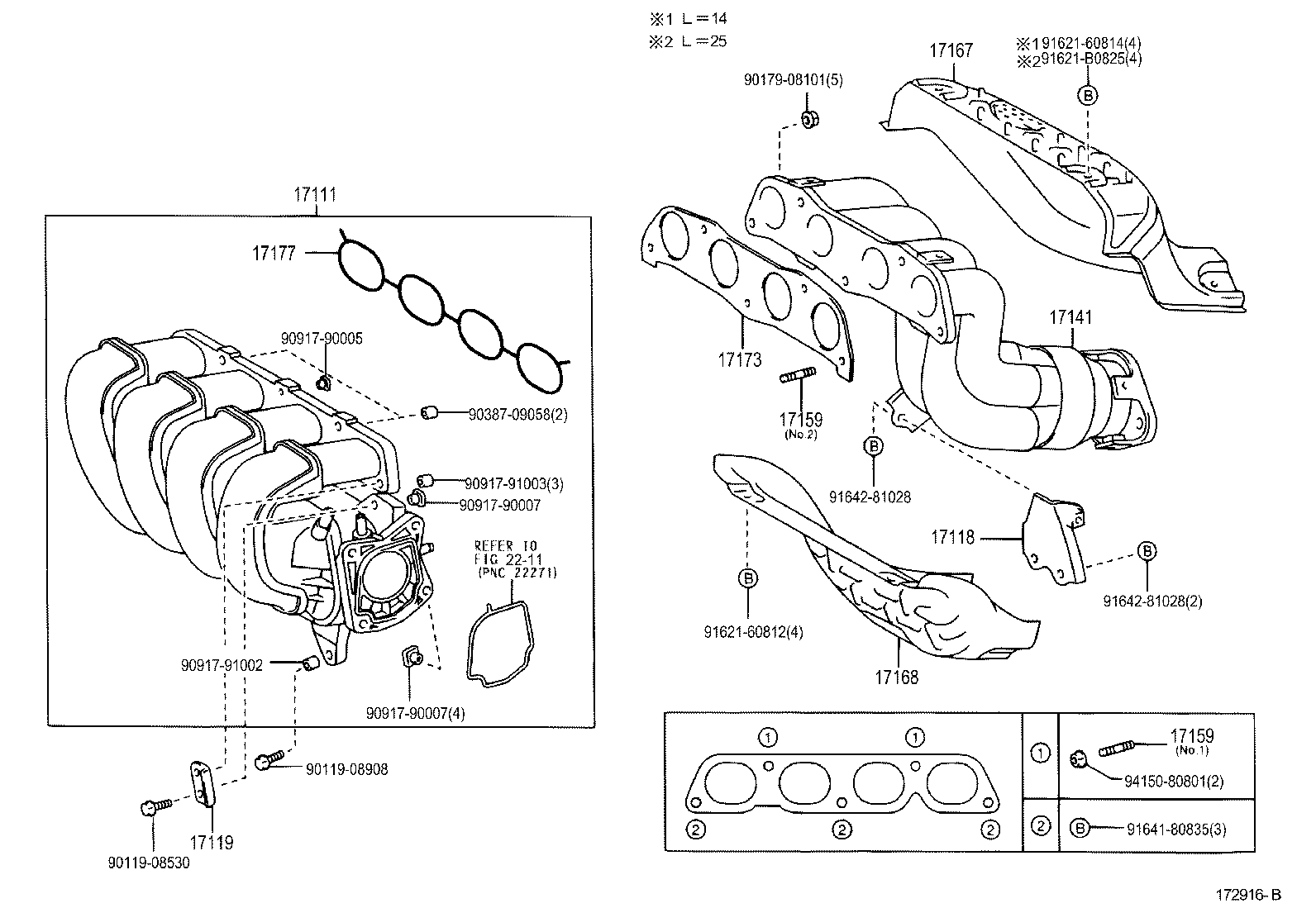

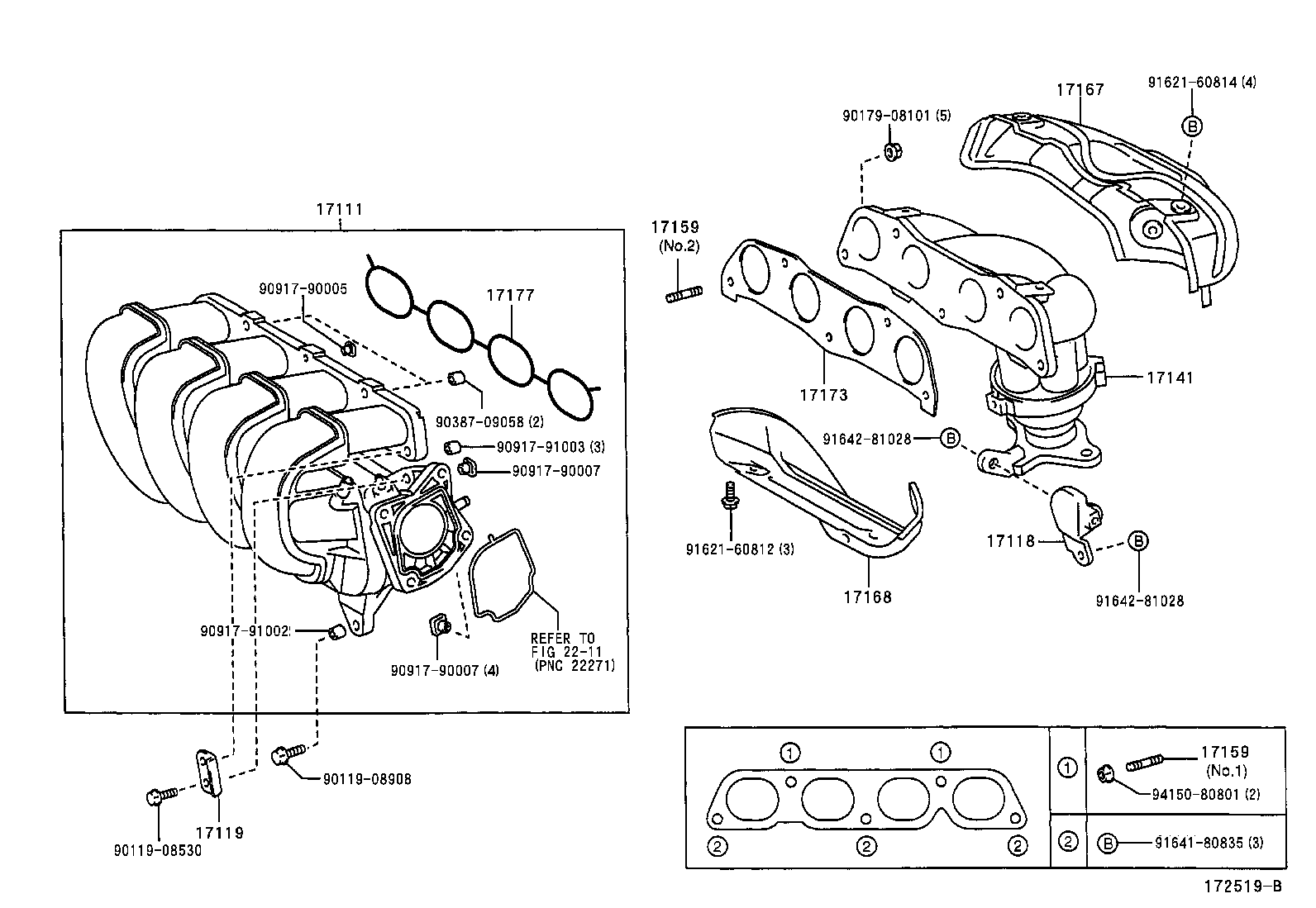

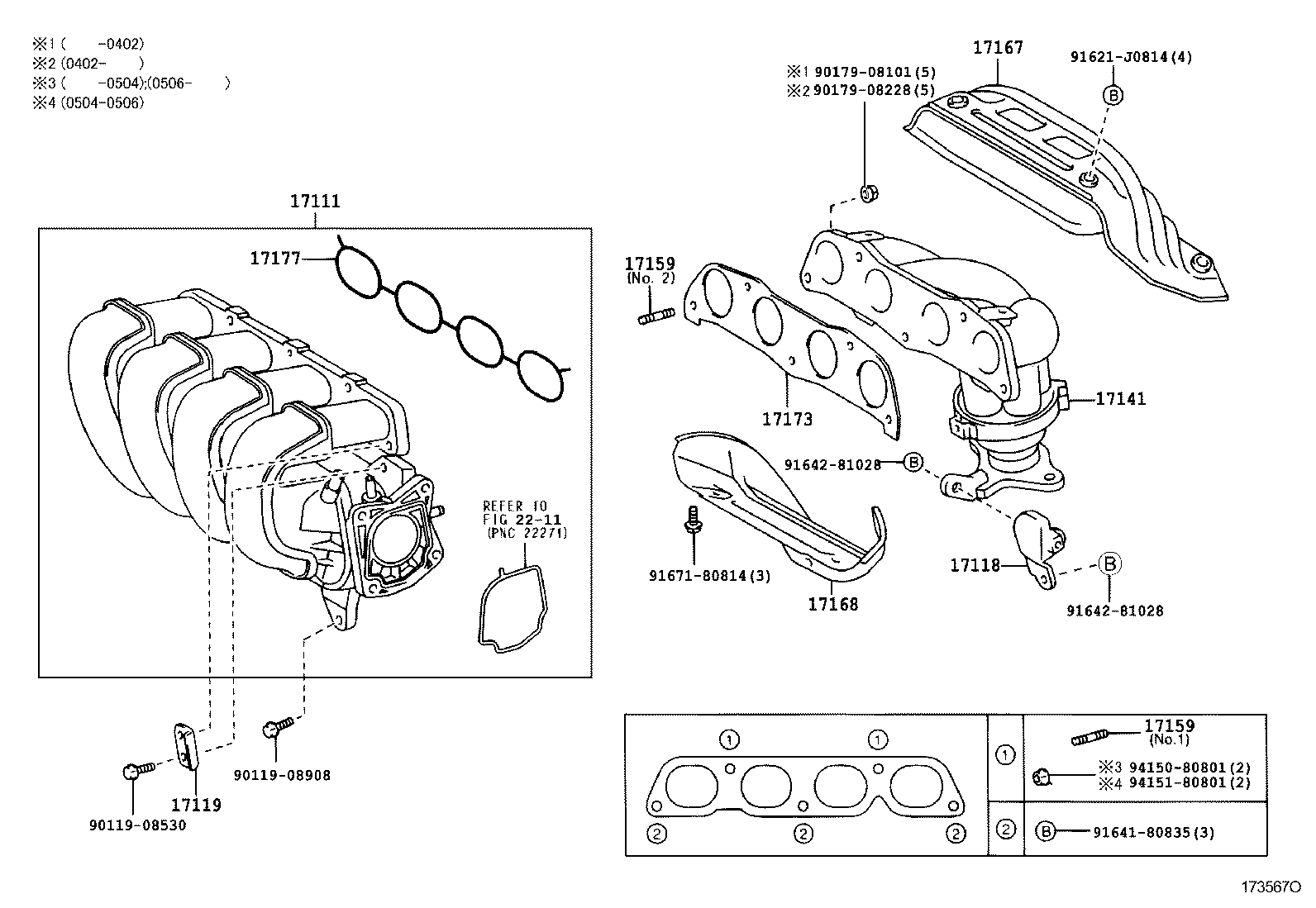

Figure 172661A 172661A 2001-05 → 2003-04 Figure 173712A 173712A 2003-04 → — Figure 172916B 172916B 2001-05 → 2003-04 Figure 173566N 173566N 2003-04 → — Figure 172519B 172519B 2001-08 → 2003-04 Figure 173567O 173567O 2003-04 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
