Toyota Corolla Spacio
2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan
Discontinued model
Data version 2008-01

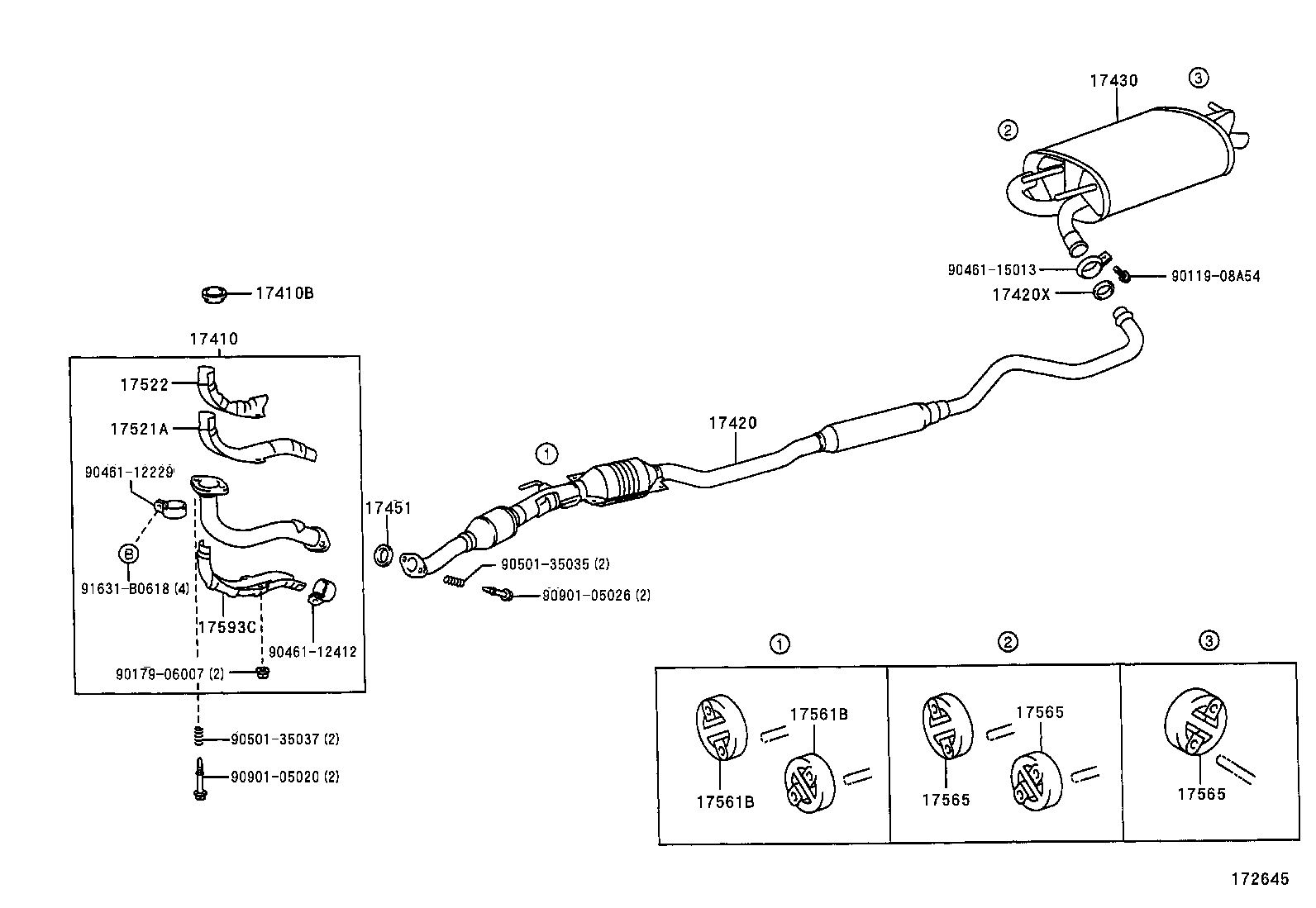

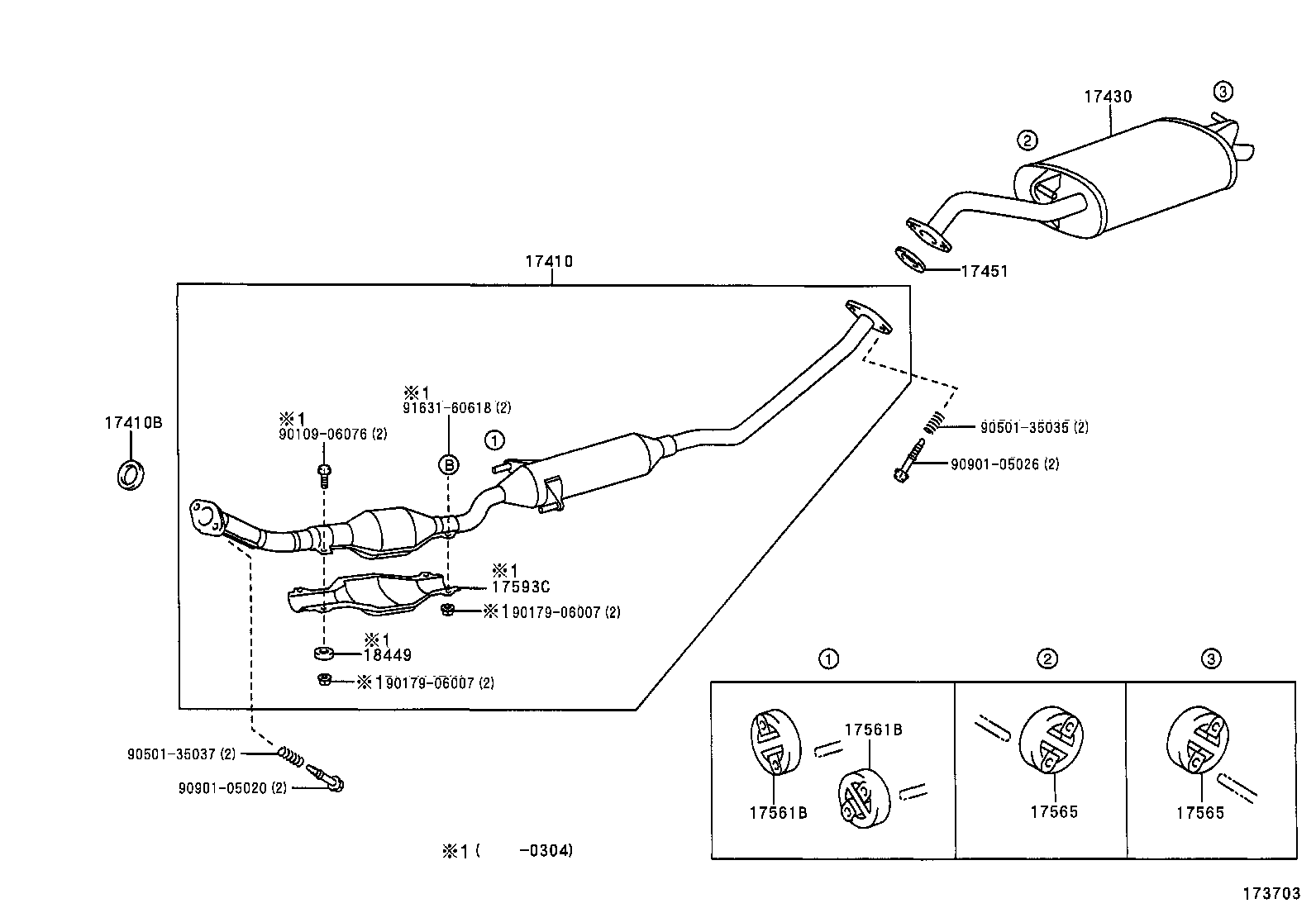

Exhaust Pipe
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 18449 | Spacer, Converter Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
