Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

8 part groups · 2 illustrations

Illustrations

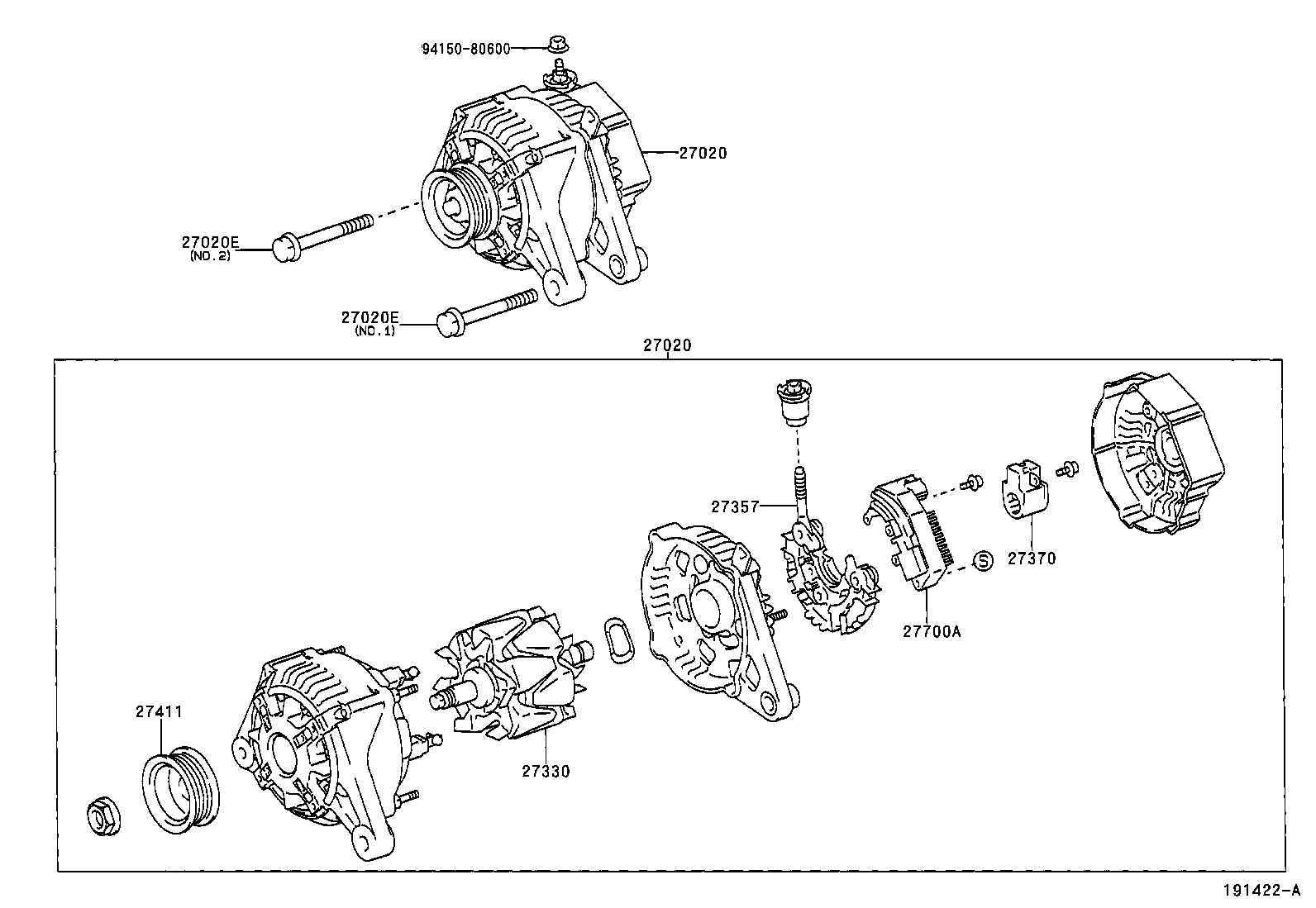

Figure 191421B 191421B 2001-05 → — Figure 191422A 191422A 2001-05 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27310 Frame Assy, Drive End, Alternator
27330 Rotor Assy, Alternator
27357 Holder, Alternator, W/Rectifier
27370 Holder Assy, Alternator Brush
27411 Pulley, Alternator
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
