Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 2 illustrations

Illustrations

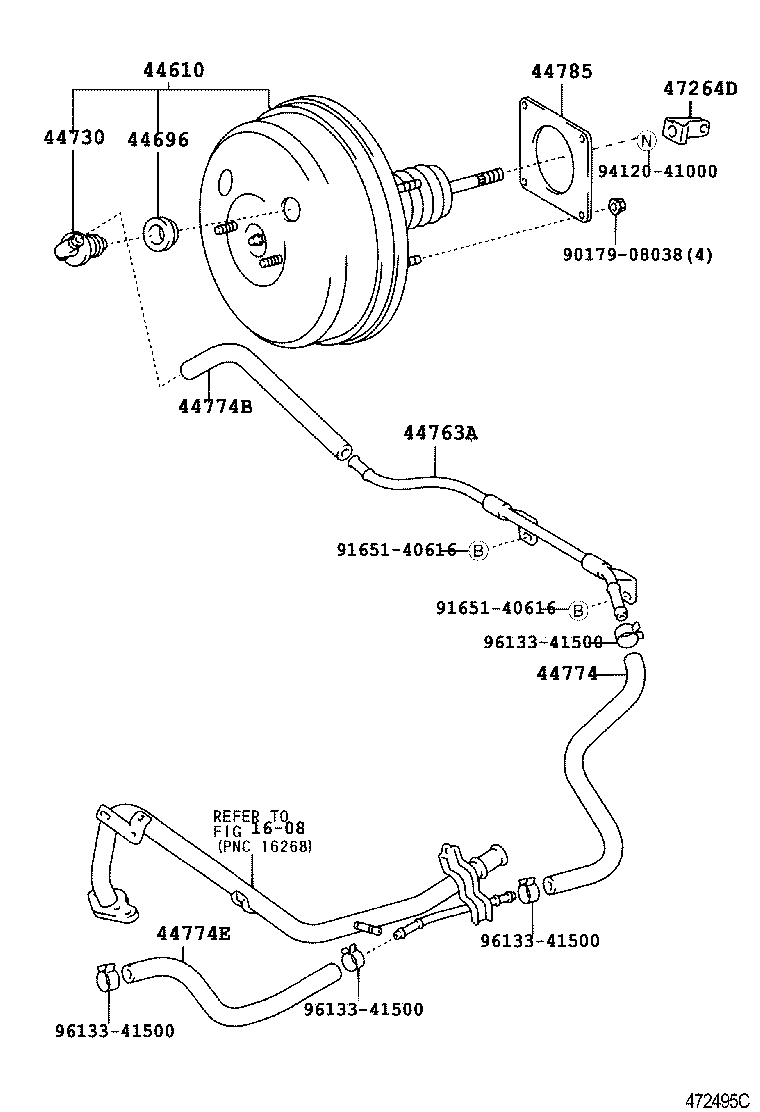

Figure 472494C 472494C 2001-05 → — Figure 472495C 472495C 2001-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
