Toyota Corolla Spacio
2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan
Discontinued model
Data version 2008-01

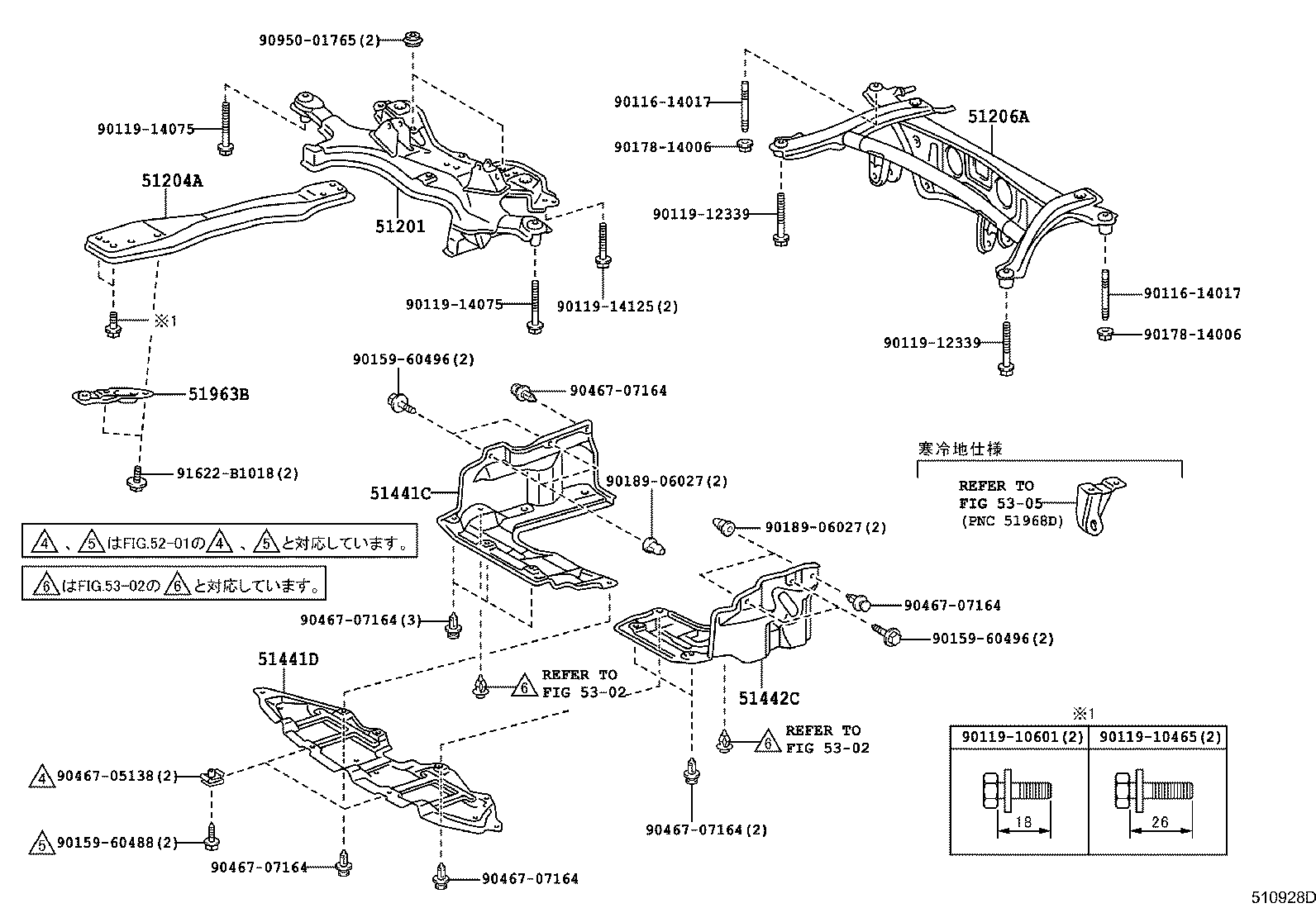

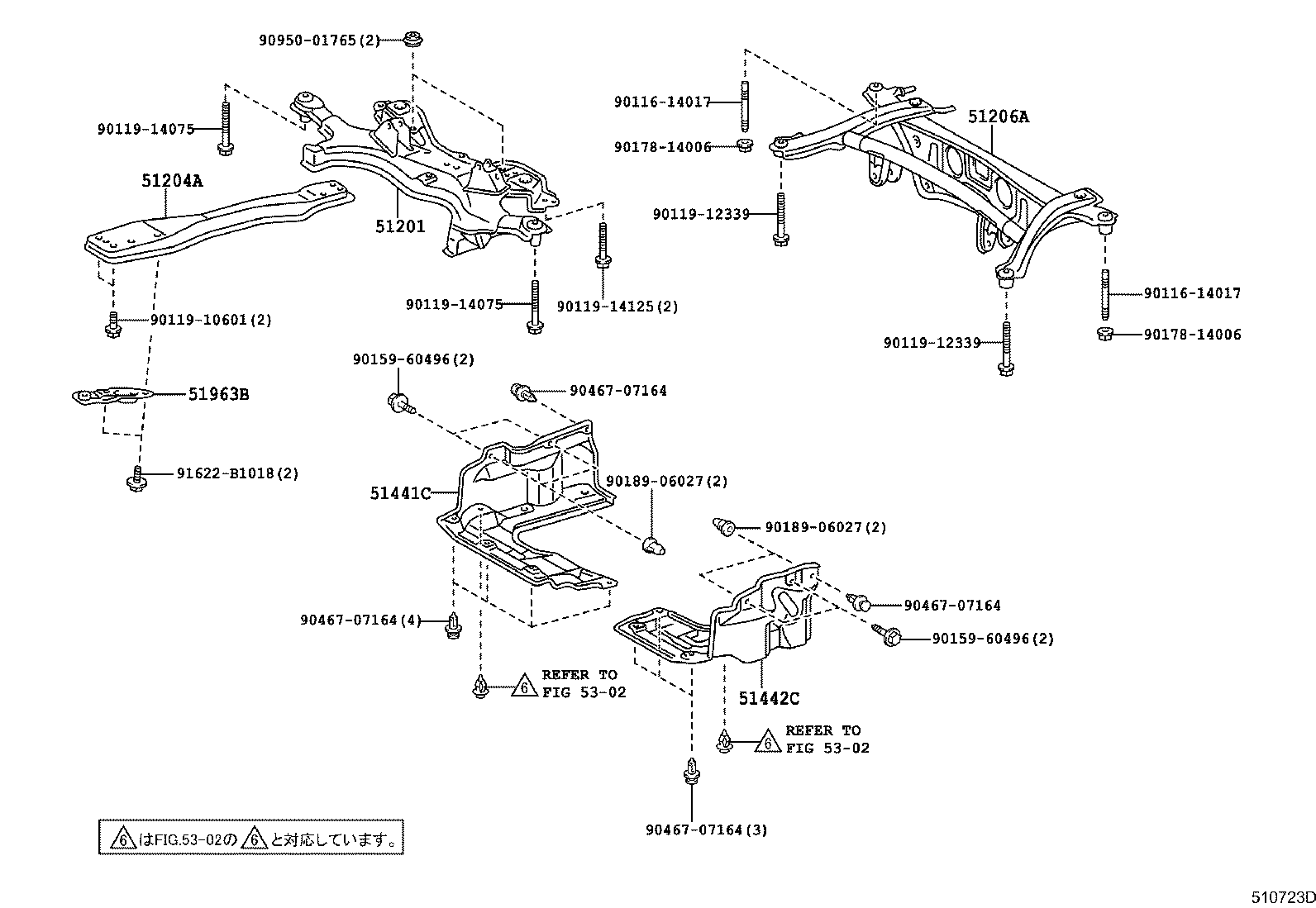

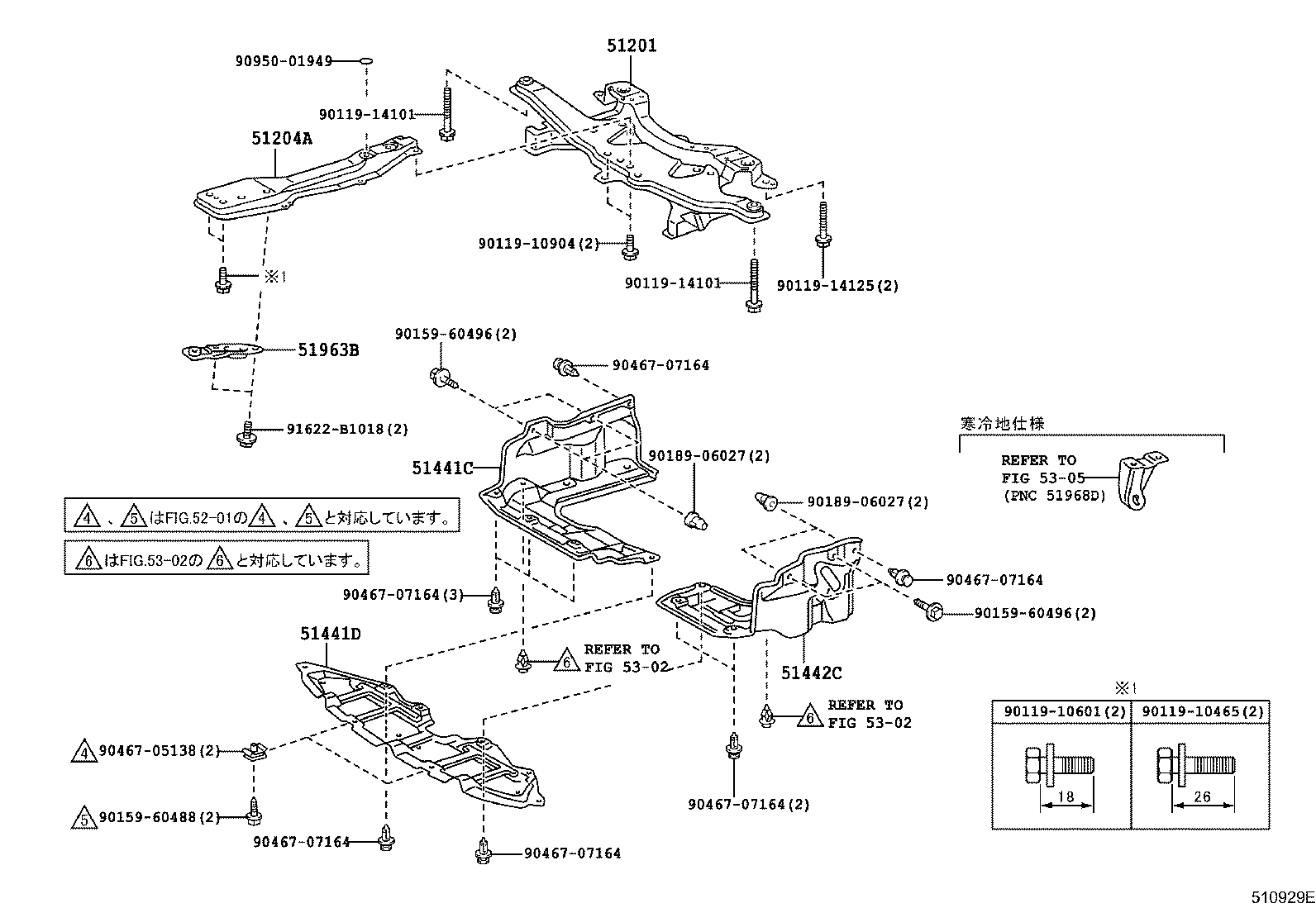

Suspension Crossmember & Under Cover
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51206A | Member Sub-assy, Rear Suspension |
| 51441C | Cover, Engine Under, RH |
| 51441D | Cover, Engine Under |
| 51442C | Cover, Engine Under, LH |
| 51963B | Hook, Transport, Front RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
