Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

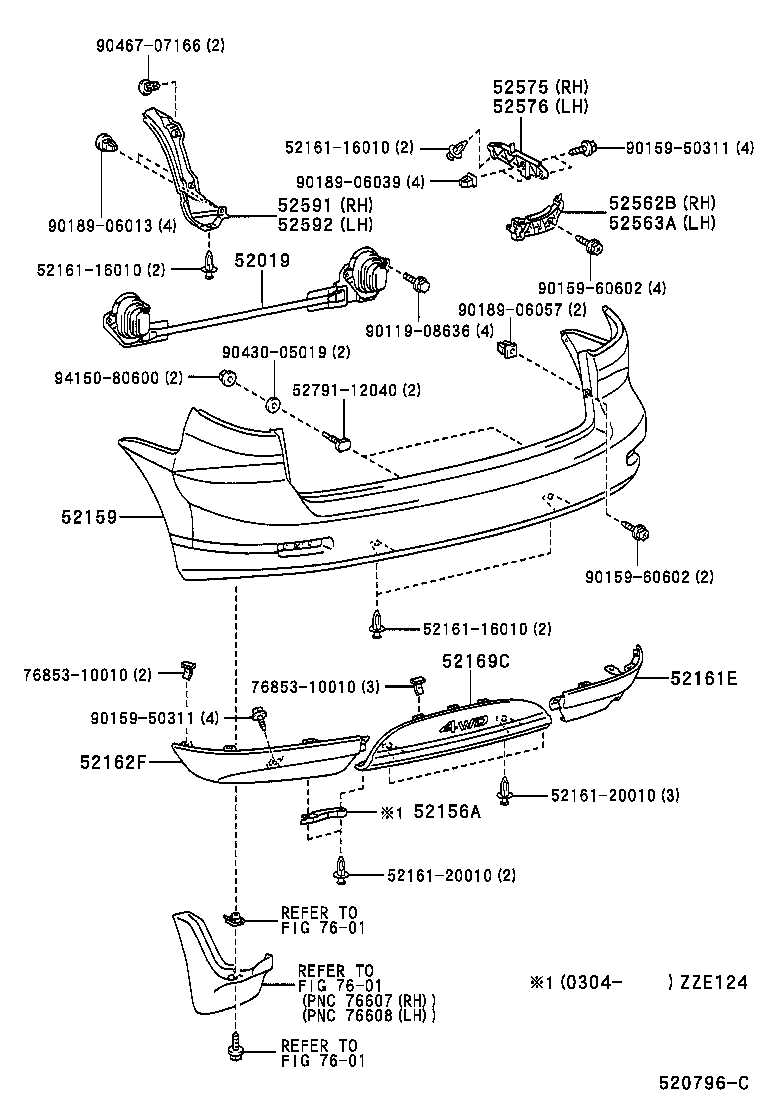

Figure 520741B 520741B 2001-05 → — Figure 520796C 520796C 2001-08 → —

Part groups

PNCDescription
52019 Bar Sub-assy, Rear Bumper
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161E Extension, Rear Bumper Side, RH
52162F Extension, Rear Bumper Side, LH
52169C Cover, Rear Bumper, Lower
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
