Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01

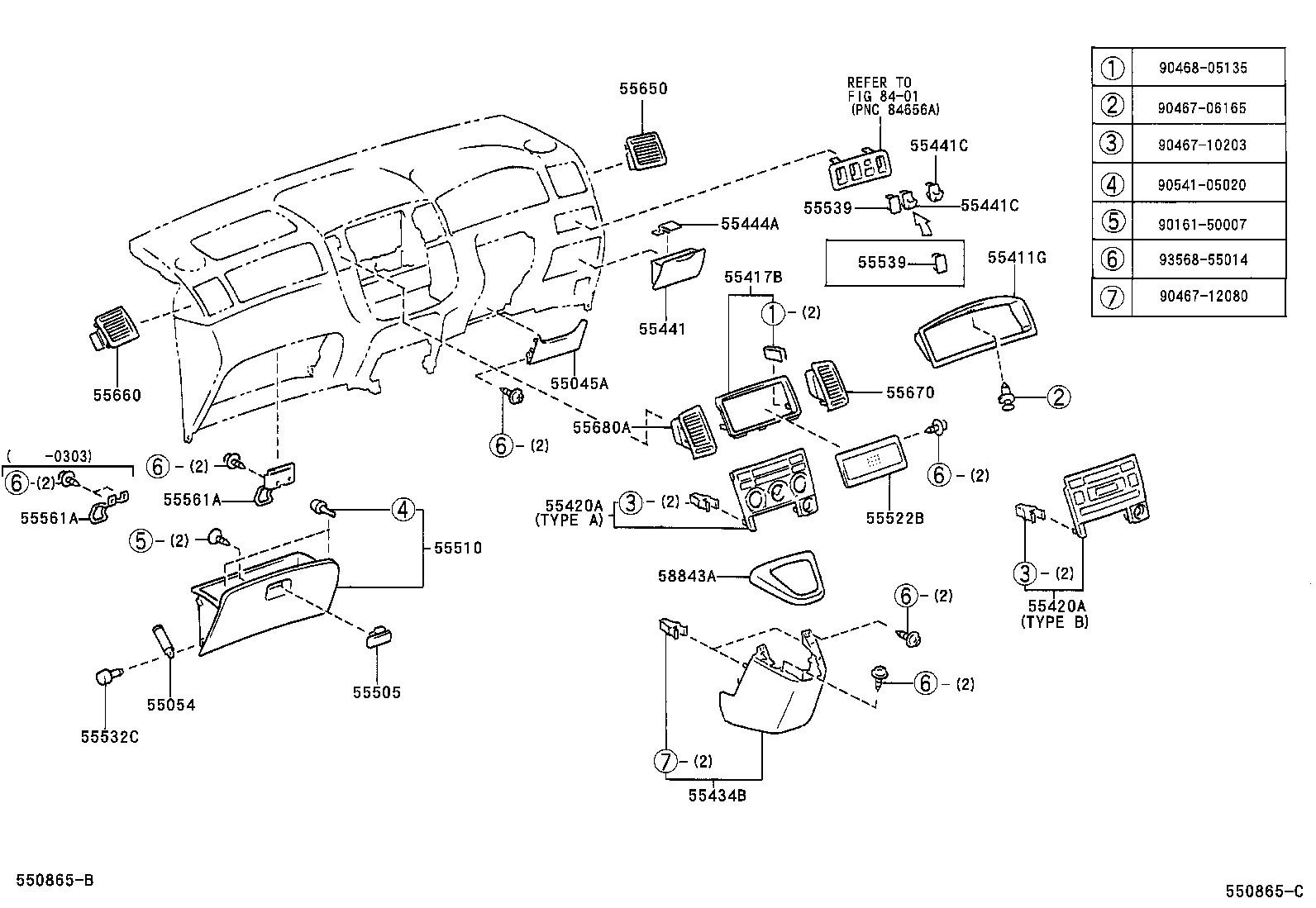

Instrument Panel & Glove Compartment

38 part groups · 2 illustrations

PNC	Description
55045A	Panel Sub-assy, Instrument Panel Finish, Lower RH
55054	Stopper Sub-assy, Glove Compartment Door
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55310	Panel Assy, Instrument, Lower
55317A	Panel, Instrument Side, RH
55331	Reinforcement, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55356C	Cushion, Instrument Panel, NO.2
55357B	Cushion, Instrument Panel, NO.3
55368C	Bracket, Meter Mounting
55376	Bracket, Instrument Panel Mounting, NO.1
55411G	Panel, Instrument Cluster Finish, NO.1
55417B	Retainer, Radio Tuner Finish
55420A	Panel Assy, Instrument Cluster Finish, Center
55434B	Panel, Instrument Panel Finish, Lower Center
55440D	Box Assy, Instrument Panel
55441	Box, Instrument Panel
55441C	Box, Instrument Panel Coin
55444A	Spring, Instrument Panel Box
55457B	Spacer, Instrument Panel Safety Pad
55505	Lock Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55522B	Cover, Radio Tuner Opening
55532C	Stopper, Glove Door
55536B	Cover, Light Control Switch Hole
55539	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55561A	Striker, Glove Compartment Door Lock
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680A	Register Assy, Instrument Panel, NO.4
58843A	Bezel, Shifting Hole
73970A	Airbag Assy, Instrument Panel Passenger

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
