Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

16 part groups · 2 illustrations

Illustrations

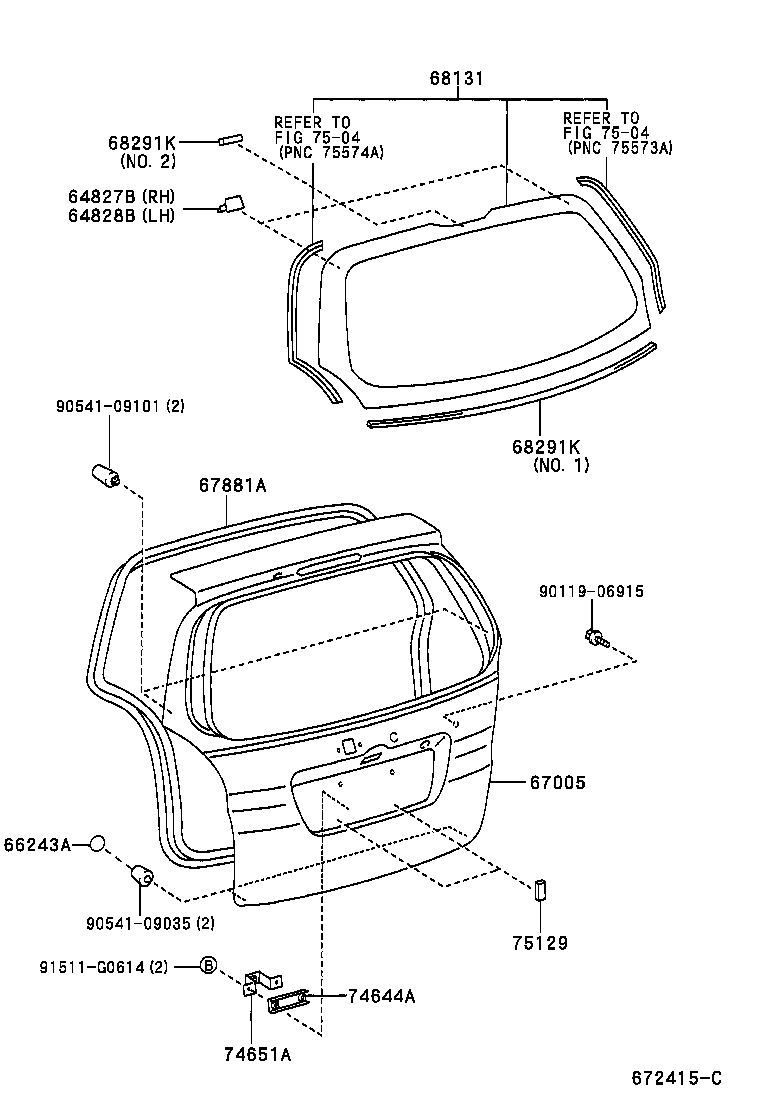

Figure 672388D 672388D 2001-05 → — Figure 672415C 672415C 2001-05 → —

Part groups

PNCDescription
64708B Clip, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
66243A Protector, Rear Body, NO.1
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68291K Dam Kit, Back Window Glass
74644A Reinforcement, Assist Strap
74650C Strap Assy, Assist, RH
74651A Bracket, Assist Strap
75129 Cushion, Rear License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
