Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

190 part groups · 16 illustrations

Illustrations

712050G 2001-05 → 2003-04

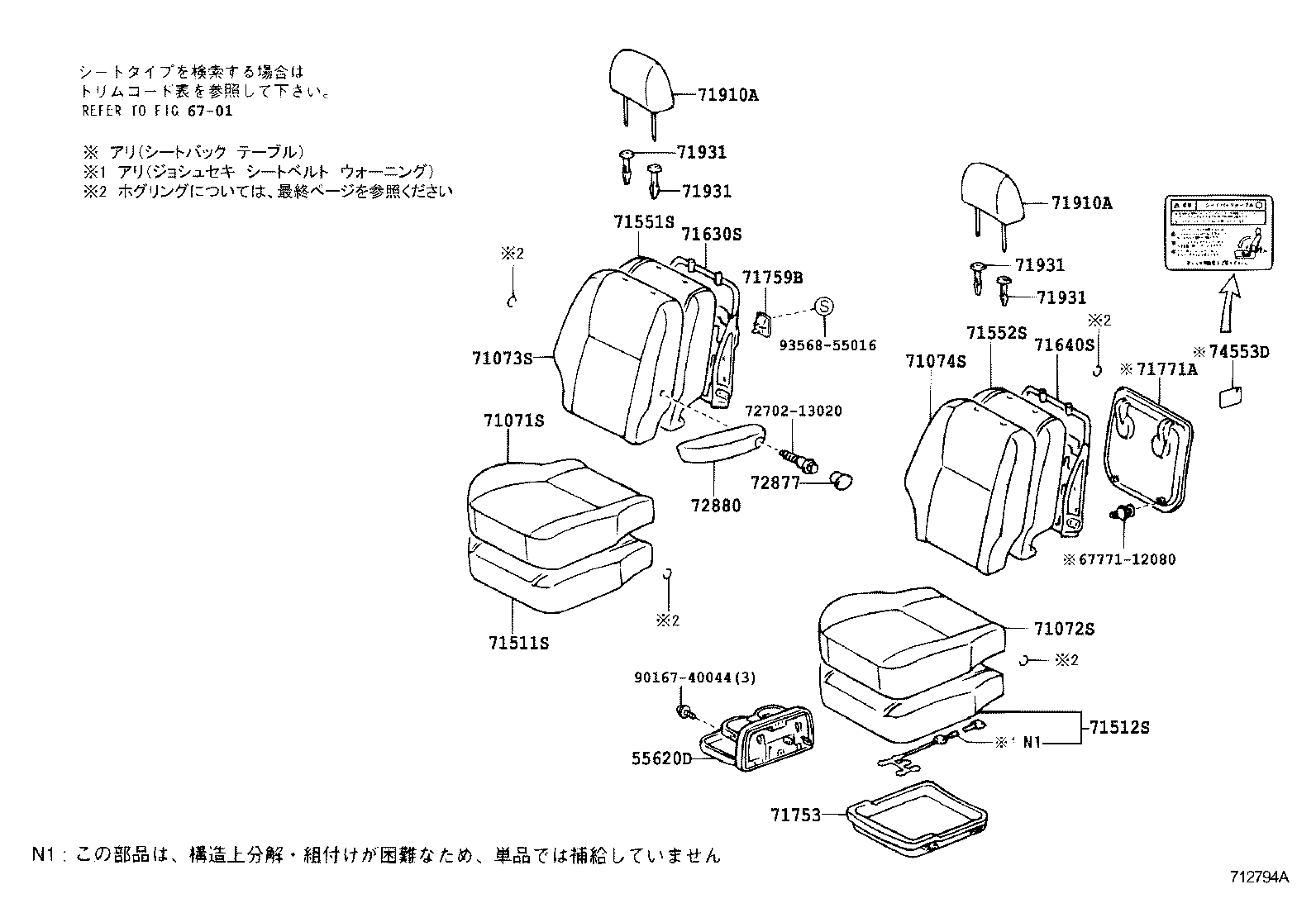

712794A 2003-04 → —

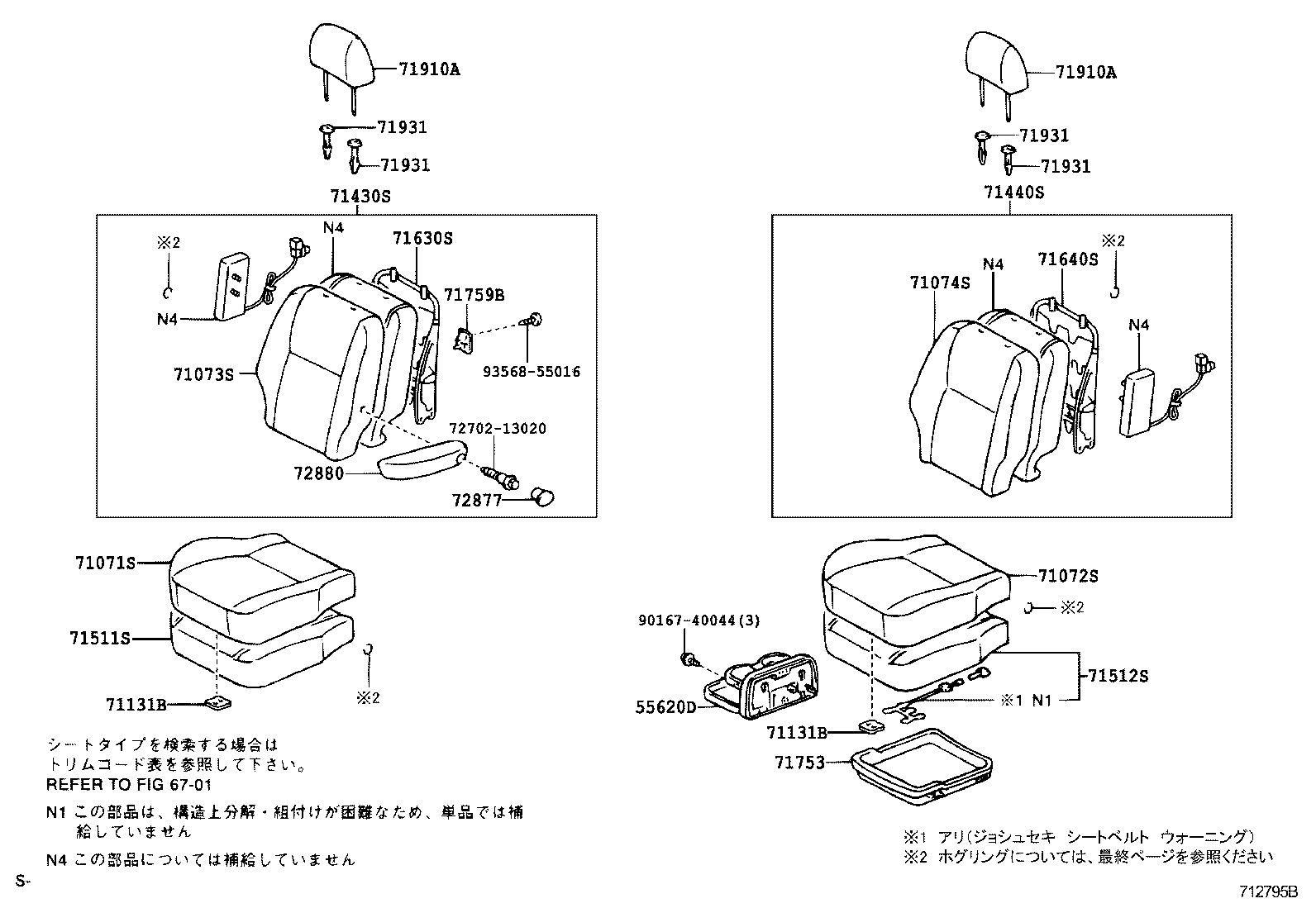

712795B 2003-04 → —

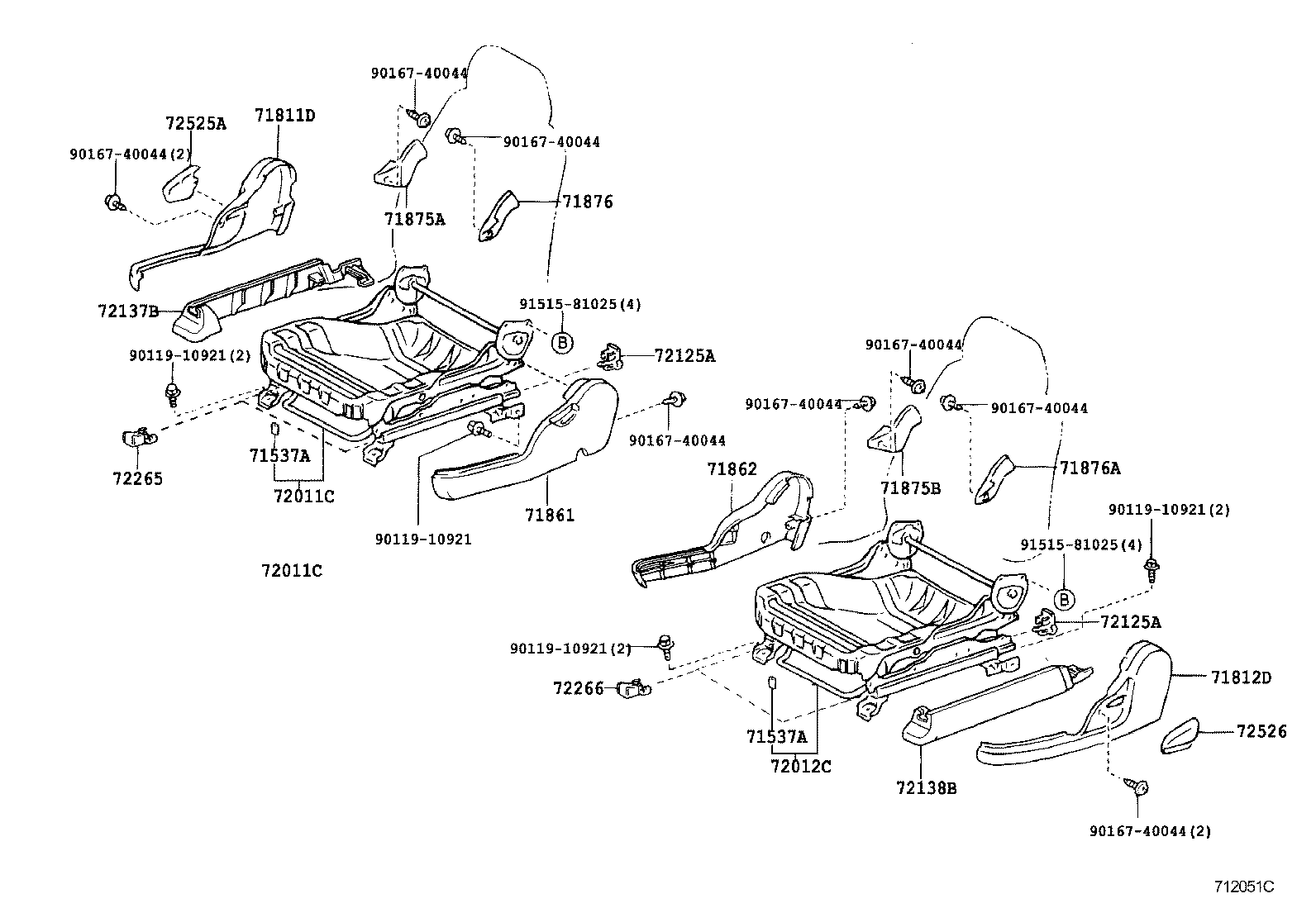

712051C 2001-05 → 2003-04

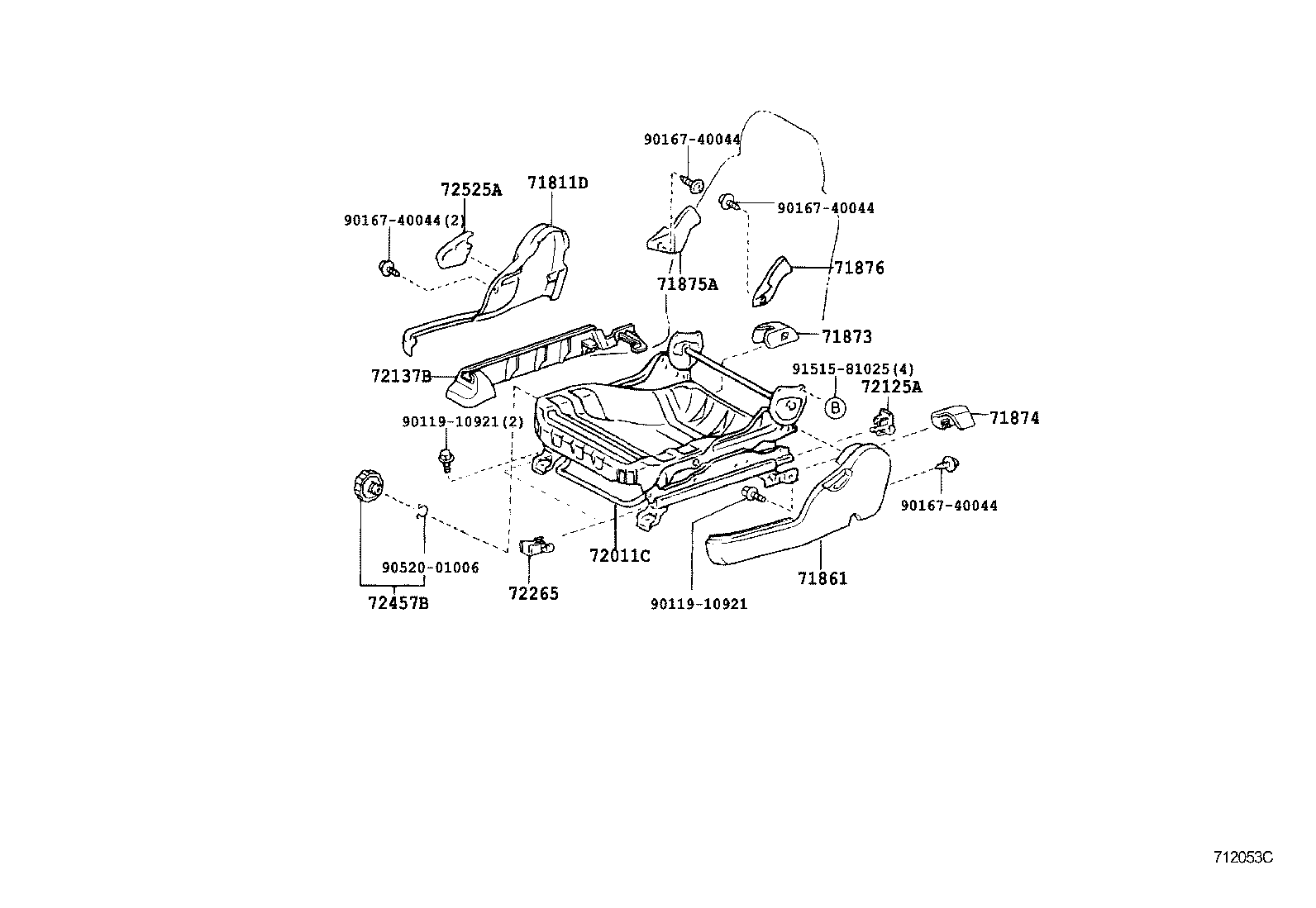

712053C 2001-05 → 2003-04

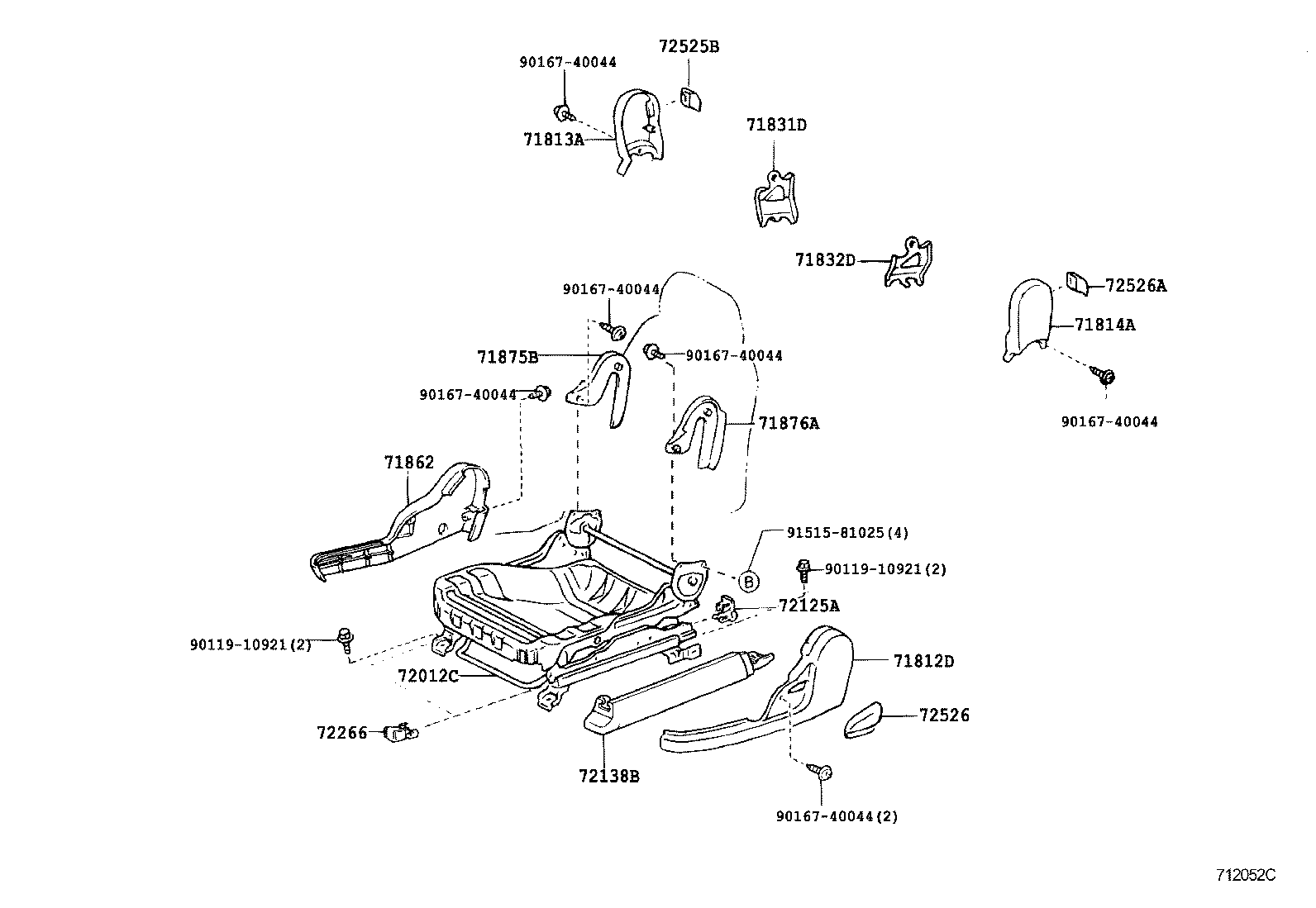

712052C 2001-05 → —

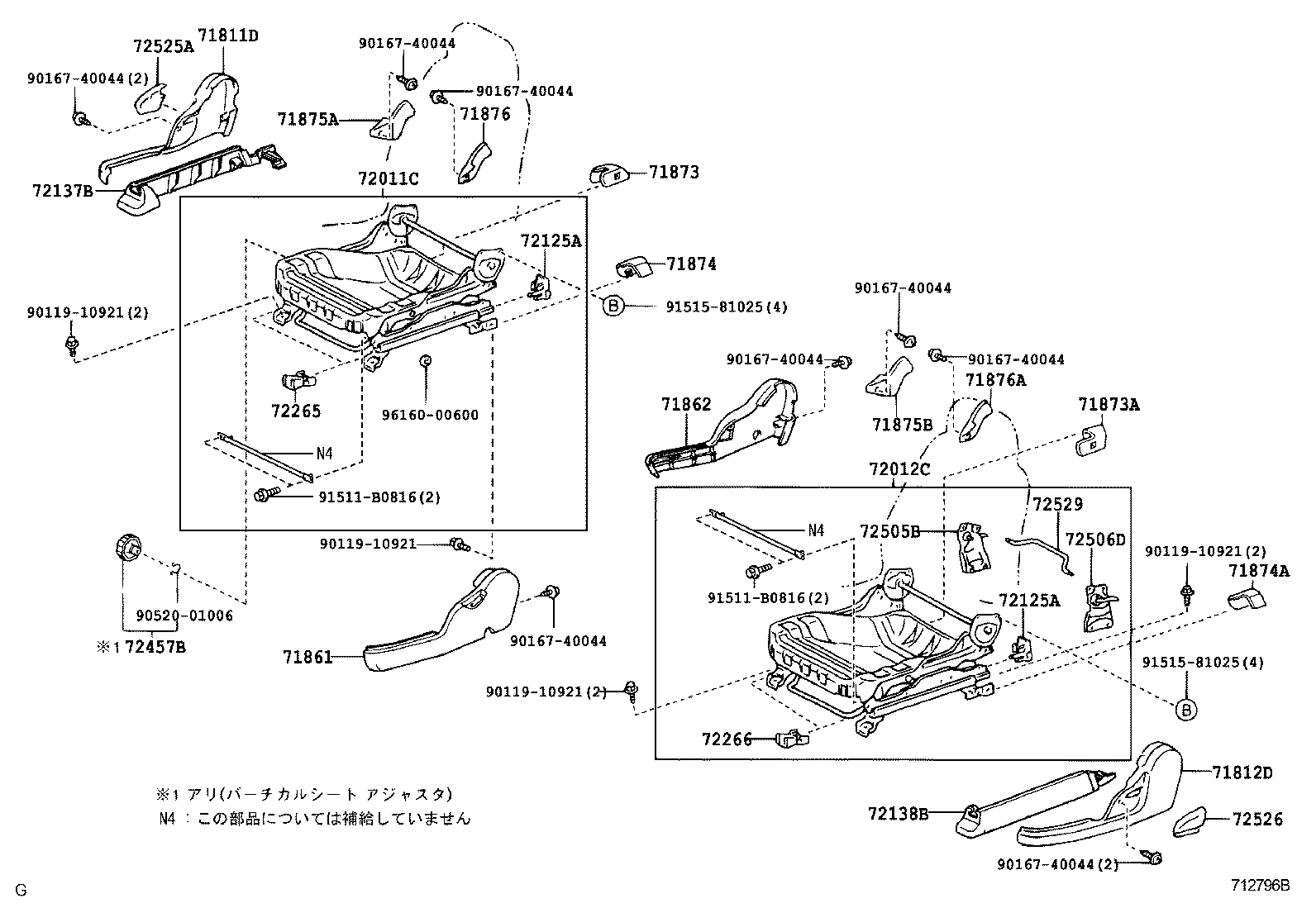

712796B 2003-04 → —

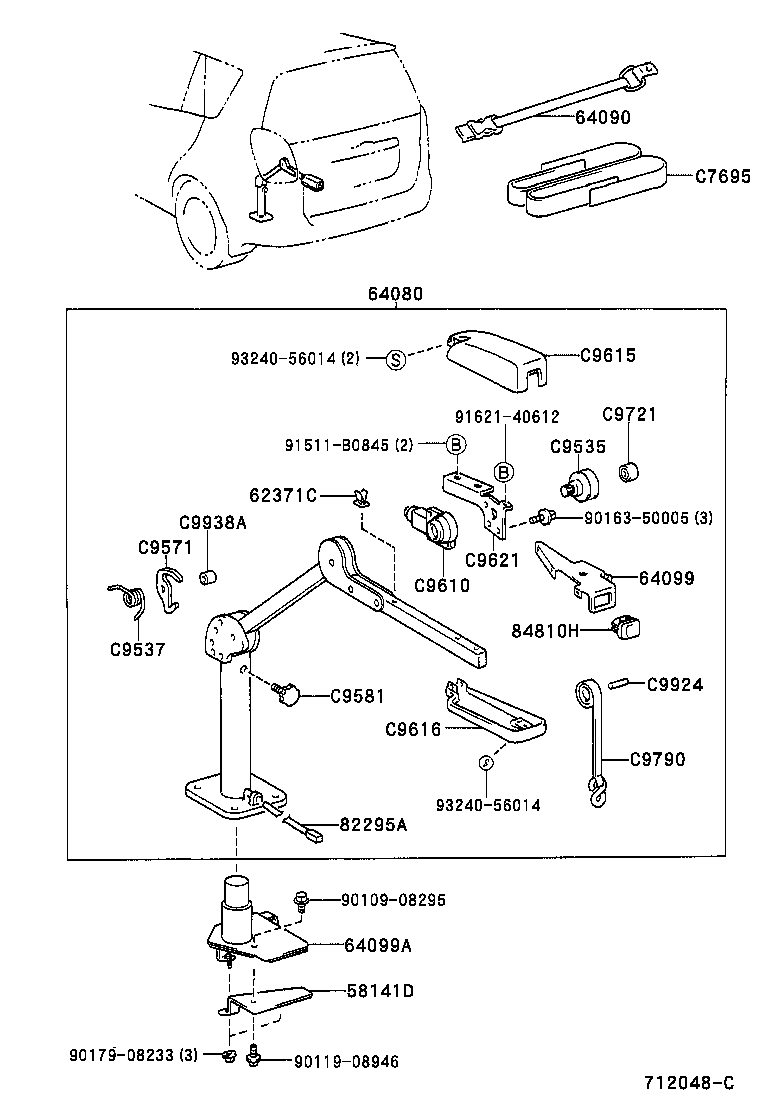

712048C 2001-05 → —

713113E 2003-04 → 2006-10

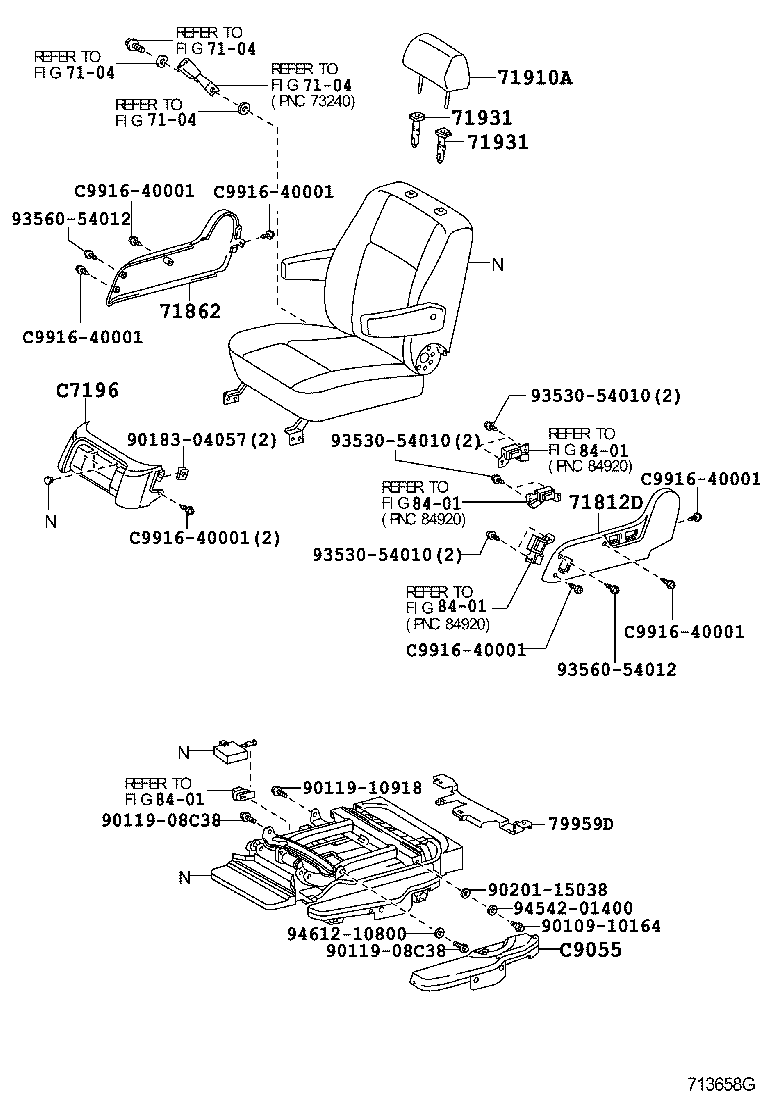

713658G 2004-01 → 2006-10

Part groups

PNC	Description
55620D	Holder Assy, Front Seat Cup
58141D	Reinforce, Floor Side Member TO Floor Pan
62371C	Catch, Lock
64080	Arm Assy, Power Lift
64090	Belt Assy, Wheel Chair
64099	Base Sub-assy, Power Lift Arm Guide
64099A	Base Sub-assy, Power Lift Arm Guide
68332A	Roller, Slide Door, Lower
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71120B	Frame Assy, Front Seat W/Adjuster, LH
71122	Bracket, Front Seat Cushion, LH
71131B	Plate, Front Seat Cushion, NO.1
71200S	Seat Assy, Front LH
71315	Plate, Front Seat Hinge
71430C	Clip
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517A	Pad, Front Seat Cushion Cover
71537A	Protector, Front Seat Cushion
71537D	Protector, Front Seat Cushion Edge, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647B	Protector, Rear Seat Cushion Edge
71753	Tray, Front Seat Under
71759B	Hook, Front Seatback
71771A	Board, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71813A	Shield, Front Seatback, RH
71814A	Shield, Front Seatback, LH
71818	Retainer, Seat Cover Fastener
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
71931	Support, Front Seat Headrest
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72125A	Cover, Seat Track, Upper Rear
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72457B	Knob, Vertical Seat Adjuster, RH
72505B	Lock Sub-assy, Front Seatback, RH
72506D	Lock Sub-assy, Front Seatback, LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72529	Rod, Front Seat Backlock Handle
72877	Cover, Seat Armrest, RH
72878	Cover, Seat Armrest, LH
72880	Armrest Assy, Seat, C RH
74553D	Label, Front Seat Caution
79959D	Cover, Seat Leg
82295A	Wire, Winch Earth
84810H	Switch Assy, Power Window Regulator
85820Y	Motor Assy, Power Seat
85820Z	Motor Assy, Power Seat
85996D	Bracket, Relay, NO.1
85996E	Bracket, Relay, NO.2
89437E	Cover, Sensor
89953A	Sensor, Belt Warning Occupant Detection
C2821	Seal, Front Panel, NO.1
C3381	Cover, Slide Step, NO.1
C3382	Cover, Slide Step, NO.2
C7015	Panel Sub-assy, Turn Table
C7027	Lock Sub-assy, Welcab Seat Turn
C7101	Bracket Sub-assy, Seat Holder, Front
C7103	Panel Sub-assy, Welcab Seat Leg, NO.1
C7103A	Panel Sub-assy, Welcab Seat Leg, NO.2
C7104	Plate Sub-assy, Seat Turn
C7108	Cover Assy, Turn Table
C7110	Bracket Sub-assy, Seat Holder, Rear
C7120	Leg, Welcab Seat, NO.1
C7130	Panel Assy, Turn Table
C7139	Bracket, Hook
C7149	Protector, Turn Table Panel Edge, LH
C7159	Cushion, Welcab Seat Leg Stopper
C7159A	Cushion, Welcab Seat Leg Stopper, NO.1
C7159B	Cushion, Welcab Seat Leg Stopper, NO.3
C7159C	Cushion, Welcab Seat Leg Stopper, NO.4
C7160	Panel Assy, Slide Table
C7169	Gear, Slide Table Rack
C7191	Bracket, Seat Holder Link
C7192	Plate, Seat Holder Stopper, NO.1
C7192A	Plate, Seat Holder Stopper, NO.2
C7192B	Plate, Seat Holder Stopper, NO.3
C7192C	Plate, Seat Holder Stopper, NO.4
C7196	Cover, Turn Table, NO.1
C7196A	Cover, Turn Table, NO.2
C7204	Handle Sub-assy, Welcab Seat Track
C7210	Footrest Assy, Welcab Seat
C7227	Carpet, Welcab Seat Footrest Step
C7230	Track Assy, Welcab Seat, NO.1
C7230A	Track Assy, Welcab Seat, NO.2
C7230B	Track Assy, Welcab Seat, NO.3
C7260	Handle Assy, Seat Turn Lock
C7269	Cable, Seat Turn Lock Release
C7269A	Cable, Seat Turn Lock Release, NO.1
C7271	Bracket, Interlock, Upper
C7275	Plate, Lock Striker, NO.1
C7401	Guide Sub-assy, Welcab Seat, Front
C7402	Guide Sub-assy, Welcab Seat, Rear
C7405	Arm Sub-assy, Welcab Seat Link, NO.1
C7405A	Arm Sub-assy, Welcab Seat Link, NO.2
C7405B	Arm Sub-assy, Welcab Seat Link, NO.3
C7408	Rod Sub-assy, Welcab Seat
C7422	Pin, Welcab Seat Arm Guide, NO.1
C7422A	Pin, Welcab Seat Arm Guide, NO.2
C7426	Bracket, Welcab Seat Guide, NO.2
C7441	Guide, Welcab Seat Cable
C7452	Arm, Welcab Seat Link, NO.2
C7471	Control, Welcab Seat Lock
C7485	Bracket, Welcab Seat Rod Support, NO.1
C7485A	Bracket, Welcab Seat Rod Support, NO.2
C7485B	Bracket, Welcab Seat Rod Support, NO.3
C7485C	Bracket, Welcab Seat Rod Support, NO.4
C7485D	Bracket, Welcab Seat Rod Support, NO.5
C7487	Plate, Welcab Seat Rod Support, NO.1
C7487A	Plate, Welcab Seat Rod Support, NO.2
C7488	Plate, Welcab Seat Rod Support, NO.2
C7490	Cylinder Assy, Welcab Seat
C7491	Moter, Welcab Seat
C7493	Gear, Welcab Seat Motor
C7495	Bracket, Welcab Seat Motor, NO.1
C7495A	Bracket, Welcab Seat Motor, NO.2
C7545	Pad, Fold Seat Cushion
C7691	Cushion, Seat Flat, NO.1 RH
C7691A	Cushion, Seat Flat, NO.2 RH
C7695	Belt, Chest Support
C7881	Grip, Control Link
C7986	Cover, Rear Seat Turn Guard
C7996	Spacer, Turn Seat, NO.1
C7996B	Spacer, Turn Seat, NO.3
C7996C	Spacer, Turn Seat, NO.4
C7998	Plate, Turn Seat Leg, Lower
C8217A	Wire, Welcab Seat Main
C8291	Protector, Tecs Wiring Harness
C8298	Bracket, Welcab Seat Harness Clamp
C8340	Computer Assy, Welcab Device Control
C8417	Switch, Limit, NO.1
C8417A	Switch, Limit, NO.2
C8417B	Switch, Limit, NO.3
C8419A	Bracket, Limit Switch
C8419B	Bracket, Limit Switch
C8419D	Bracket, Limit Switch, NO.1
C8419E	Bracket, Limit Switch, NO.2
C8530	Relay Assy, Power Lift Motor
C9055	Cover Sub-assy, Power Lift, NO.1
C9389	Cushion, Platform Stopper
C9535	Pulley, Power Lift
C9537	Spring, Power Lift Return
C9571	Lever, Power Lift Arm Lock
C9581	Handle, Power Lift Lock
C9610	Motor Assy, Power Lift
C9615	Cover, Power Lift Motor, NO.1
C9616	Cover, Power Lift Motor, NO.2
C9621	Base, Power Lift Motor
C9654	Collar, Power Lift Cylinder
C9654A	Collar, Power Lift Cylinder
C9658	Plate, Power Lift Cylinder Rod
C9691	Cover, Power Lift Motor
C9721	Bearing, NO.2 Winch
C9790	Belt Assy, Winch
C9924	Pin
C9938	Bush
C9938A	Collar
C9938C	Bush

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
