Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

20 part groups · 2 illustrations

Illustrations

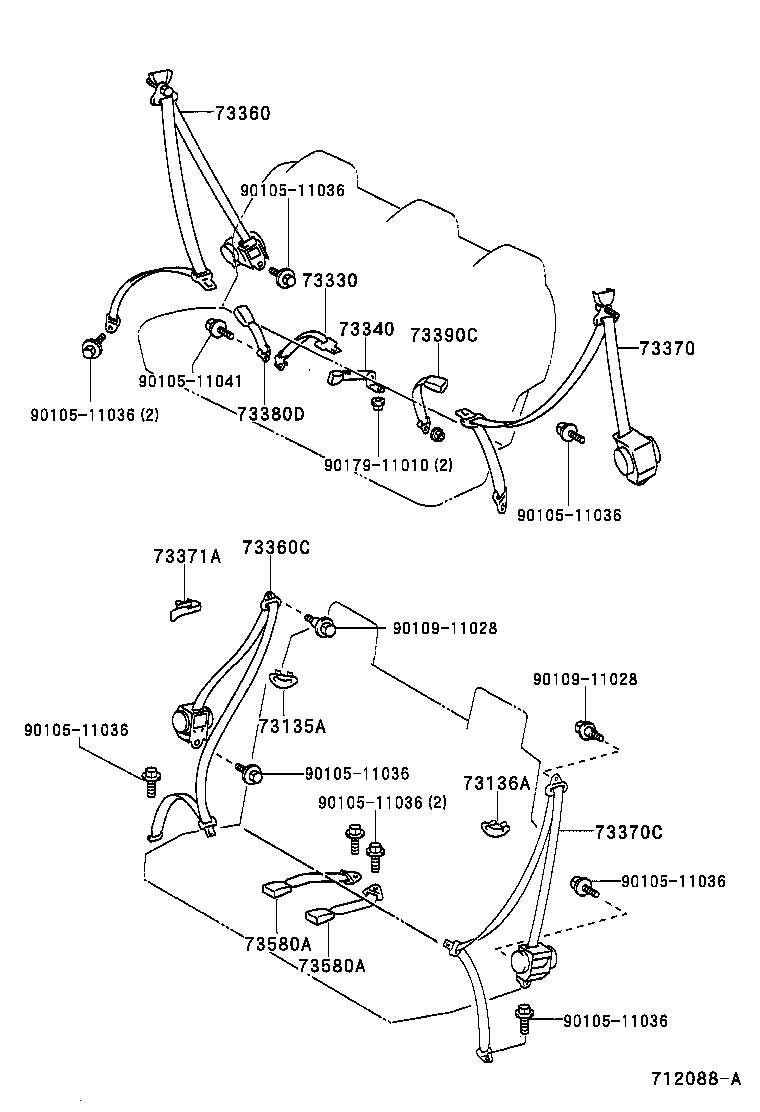

Figure 712087D 712087D 2001-05 → — Figure 712088A 712088A 2001-05 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380D Belt Assy, Rear Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
