Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 2 illustrations

Illustrations

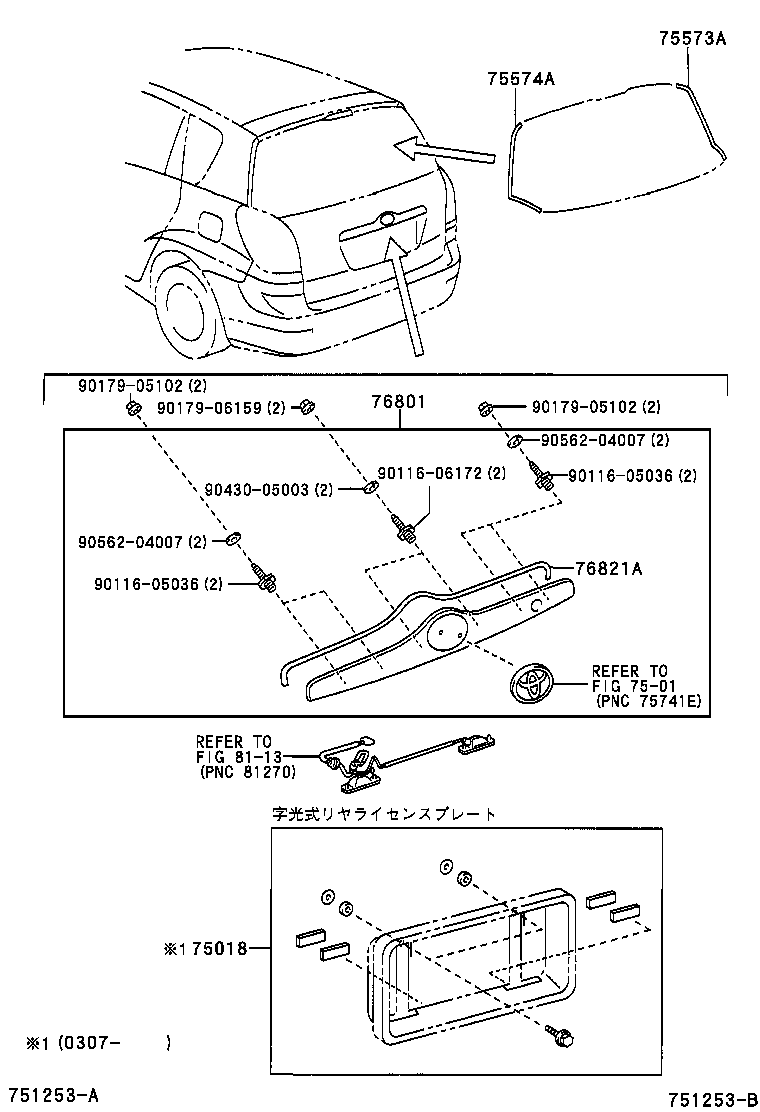

Figure 750910D 750910D 2001-05 → 2003-04 Figure 751253B 751253B 2003-04 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
76801 Garnish Sub-assy, Back Door, Outside
76821A Protector, Luggage Compartment Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
