Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure 811789B

811789B 2001-05 → 2003-04

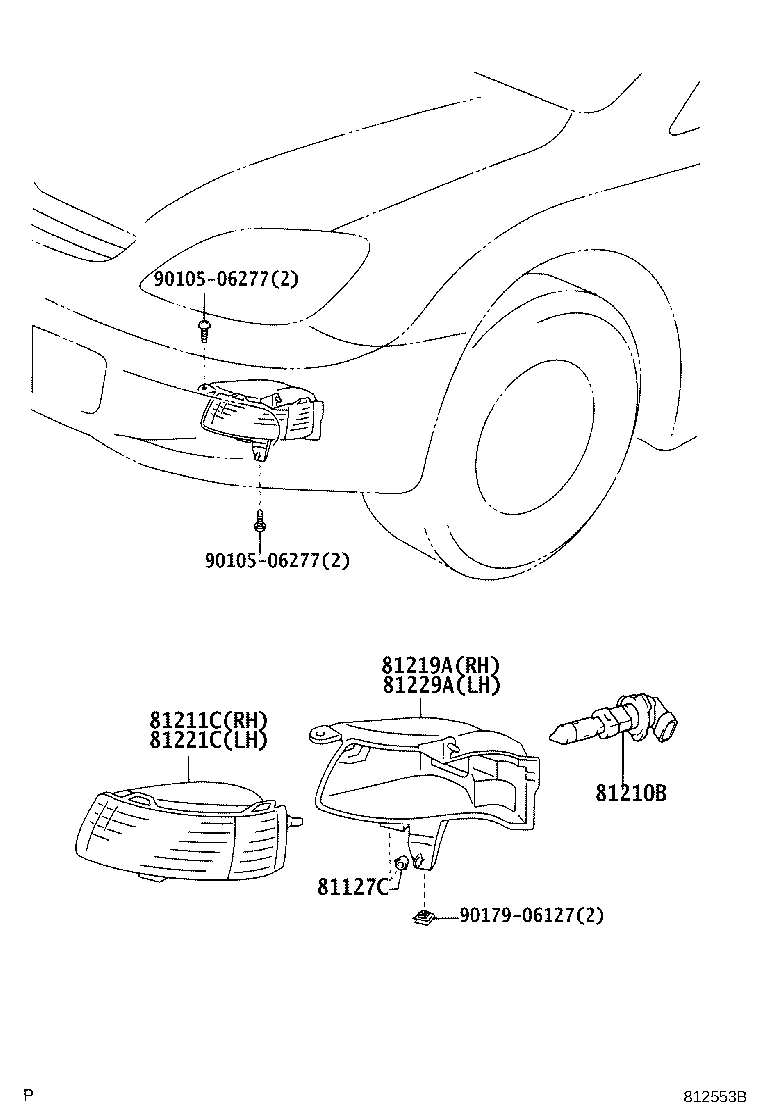

Figure 812553B

812553B 2003-04 → —

Part groups

PNC	Description
81127C	Bearing Fog Lamp
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH
81485	Insert, Fog Lamp Protector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
