Toyota Corolla Spacio
2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan
Discontinued model
Data version 2008-01

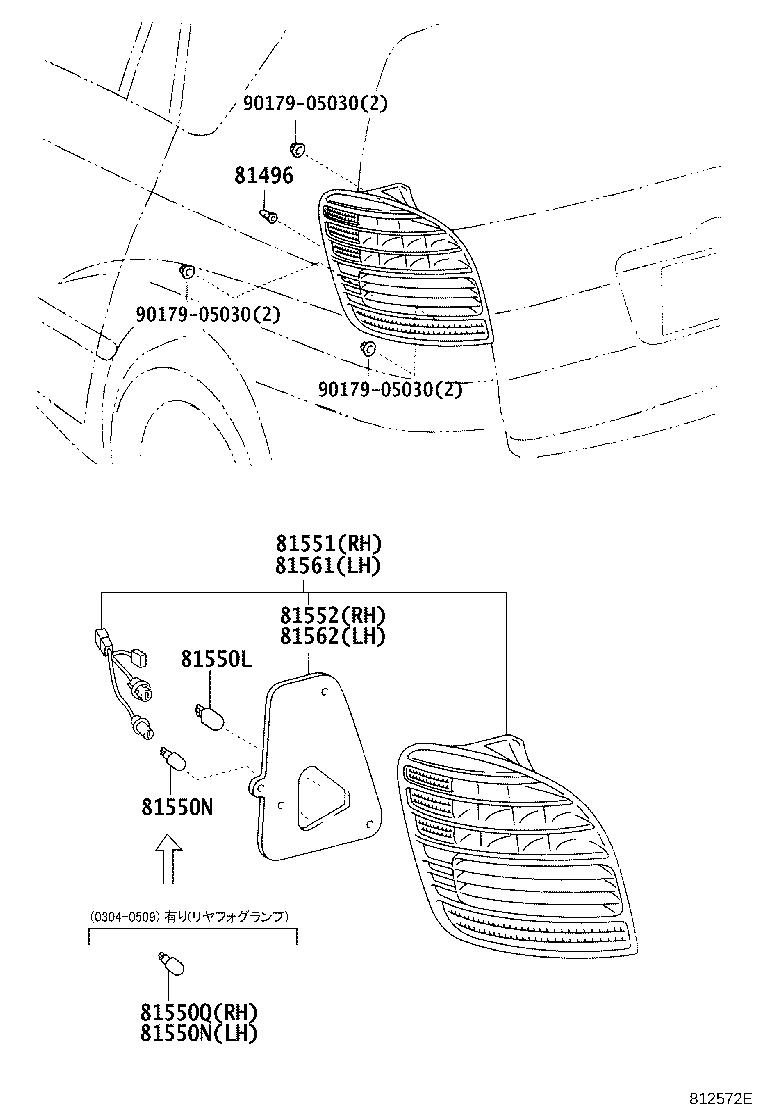

Rear Combination Lamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550F | Bulb, Taillamp |
| 81550G | Socket, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550J | Socket, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81550R | Socket, Rear Fog Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81554A | Gasket, Rear Combination Lamp Body, NO.1 RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81564A | Gasket, Rear Combination Lamp Body, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
