Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

43 part groups · 11 illustrations

Illustrations

Figure 822607B

822607B 2001-05 → —

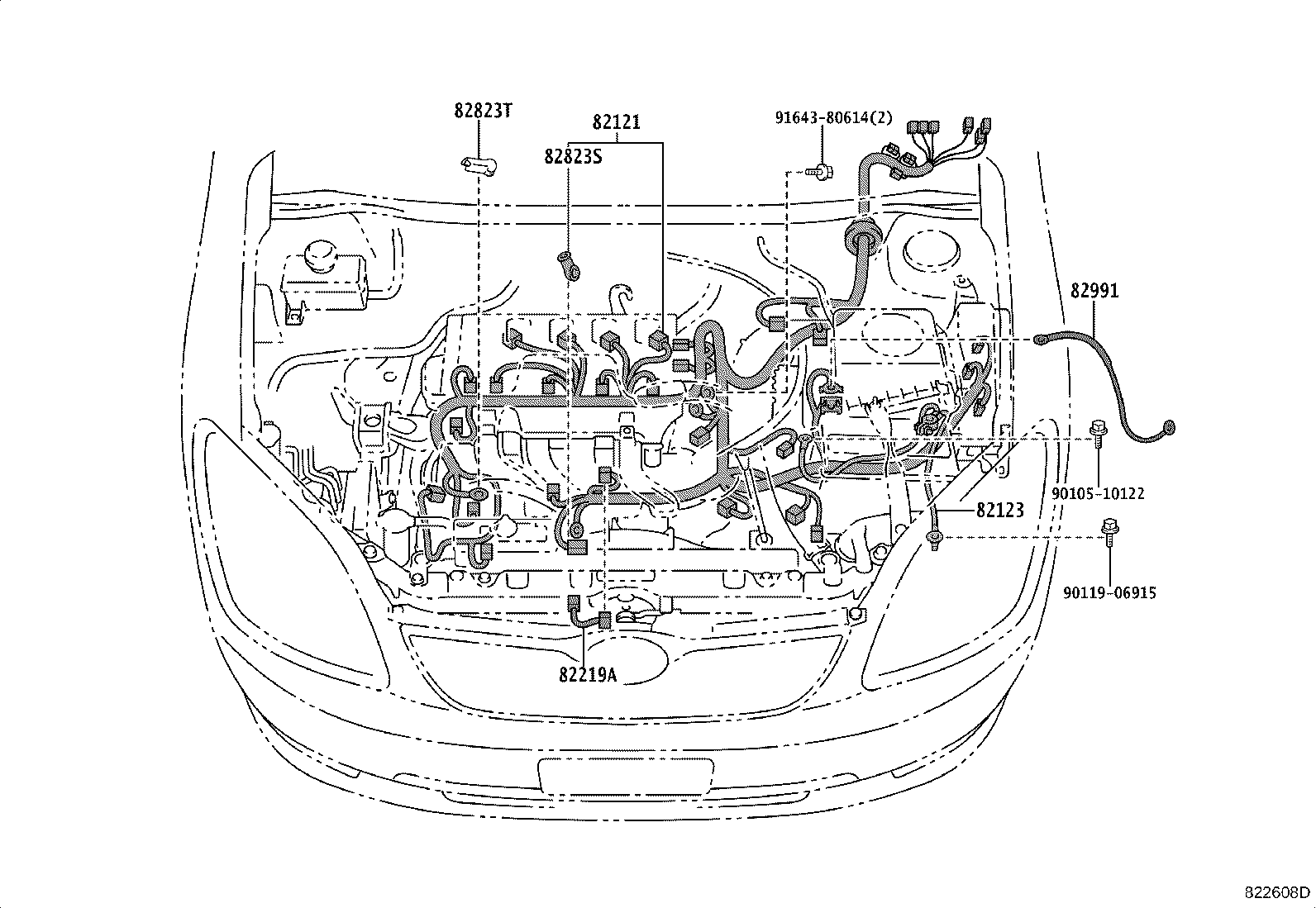

Figure 822608D

822608D 2001-05 → —

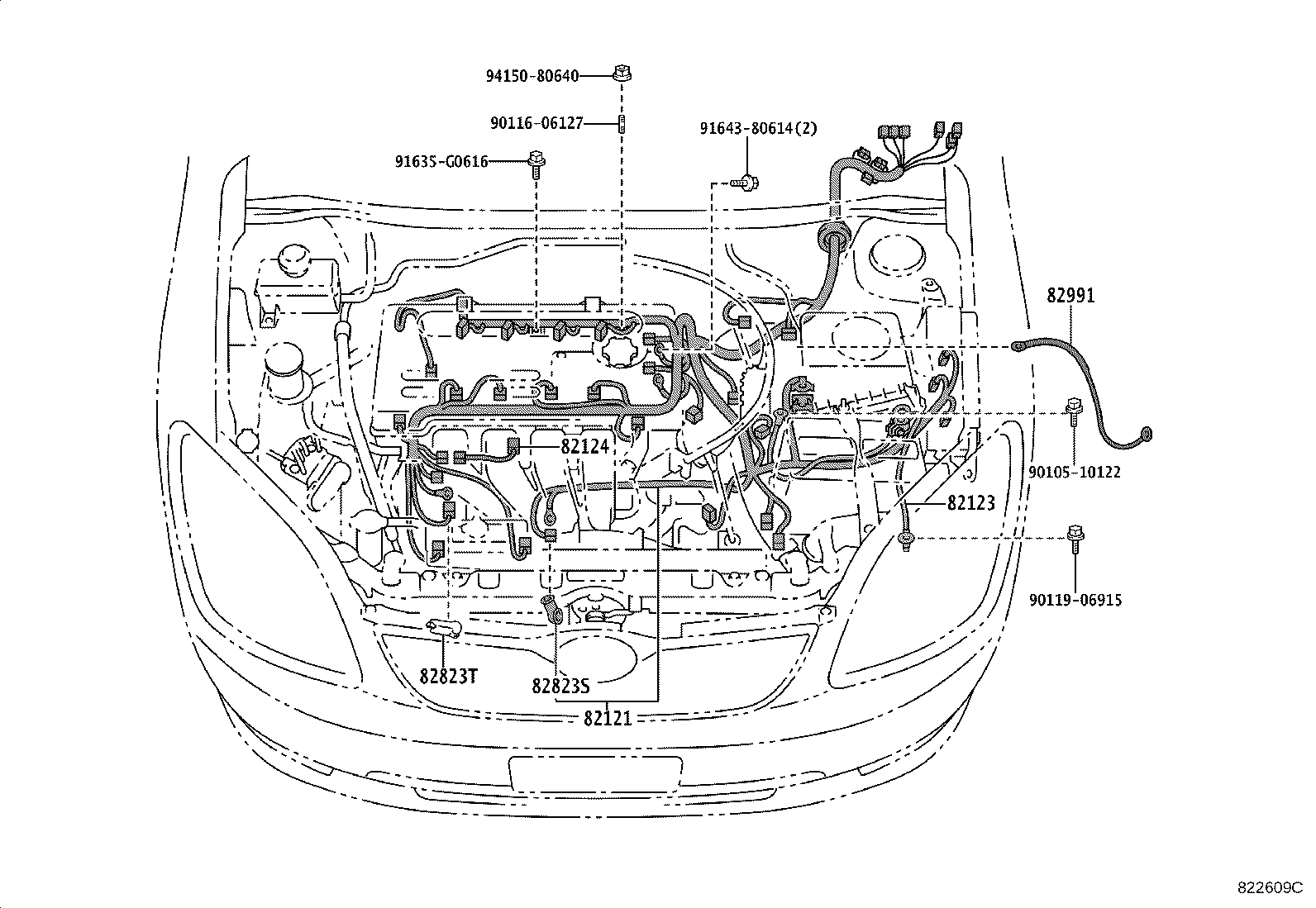

Figure 822609C

822609C 2001-05 → —

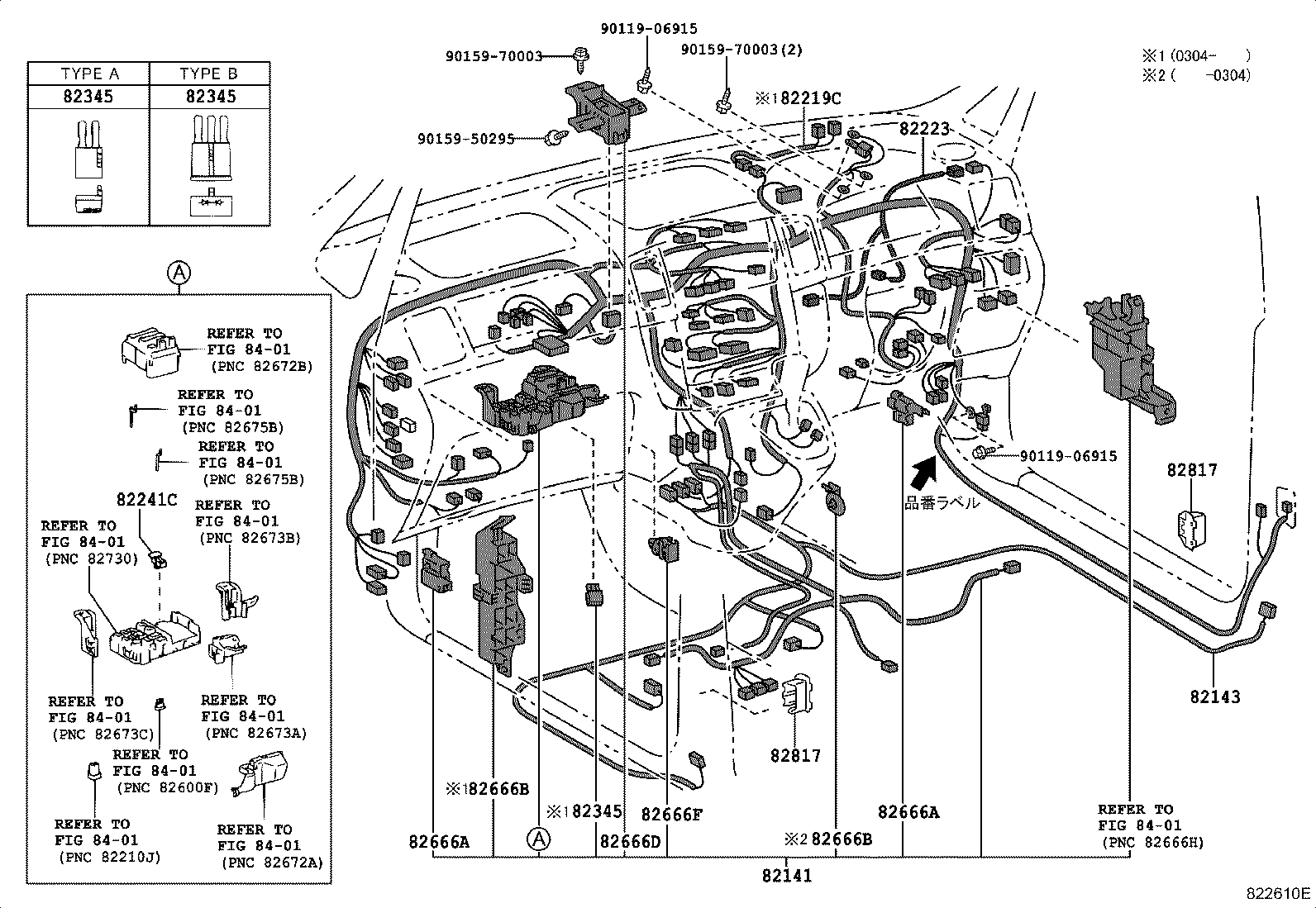

Figure 822610E

822610E 2001-05 → —

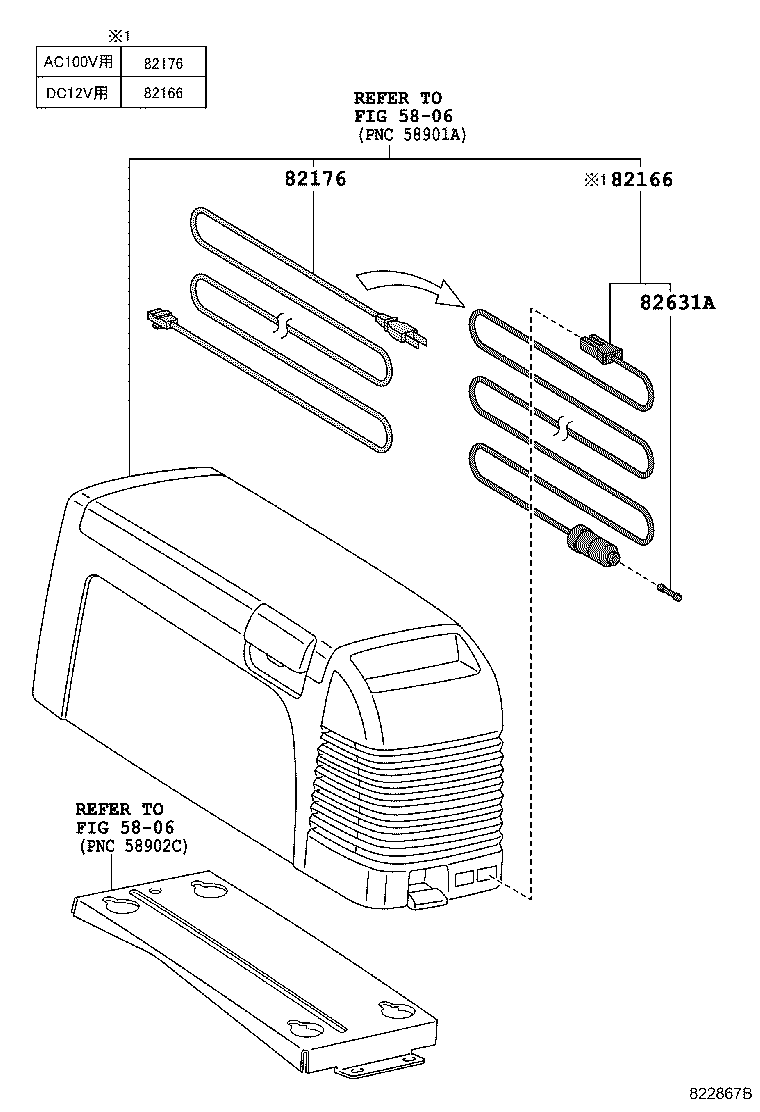

Figure 822867B

822867B 2001-05 → —

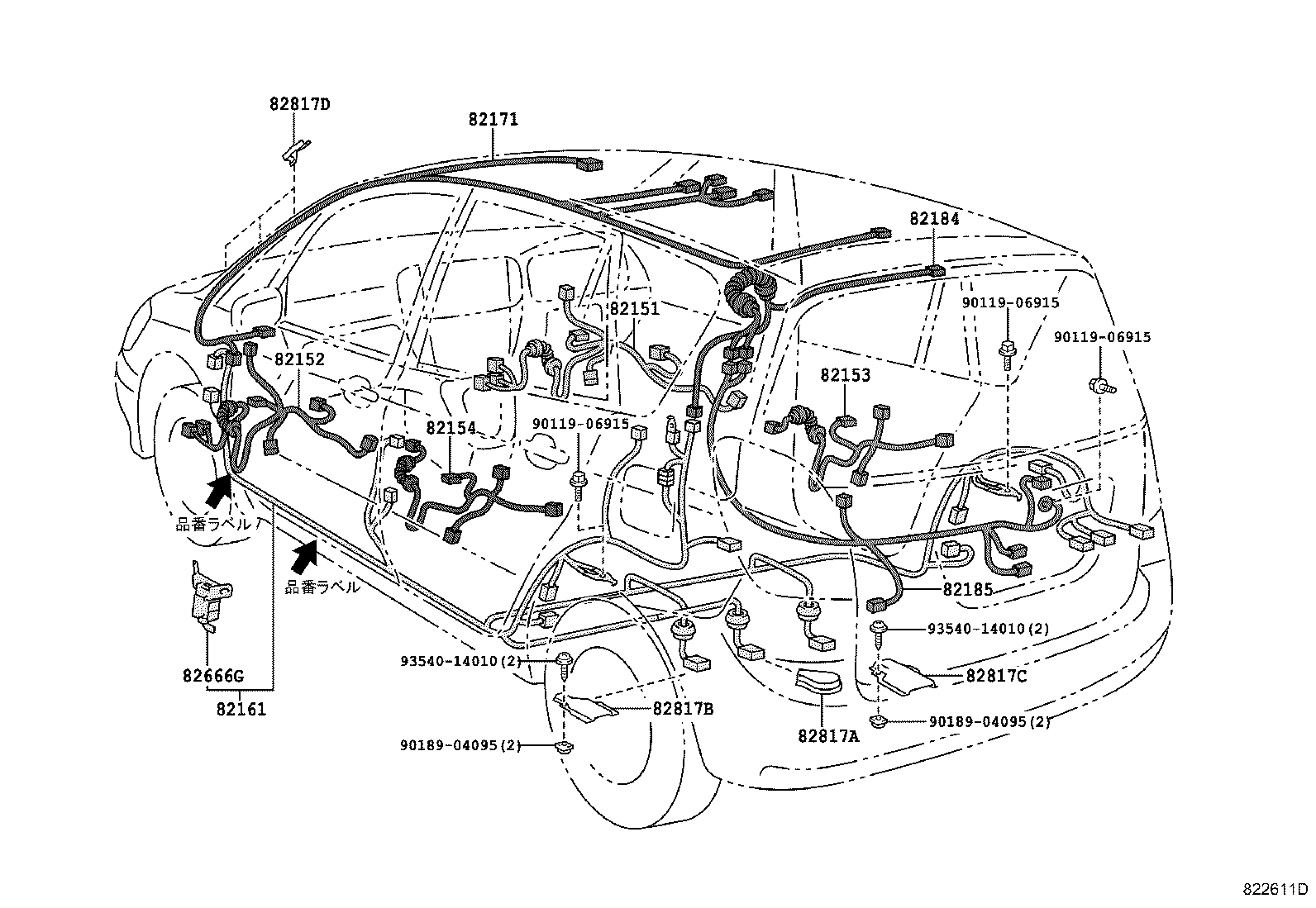

Figure 822611D

822611D 2001-05 → —

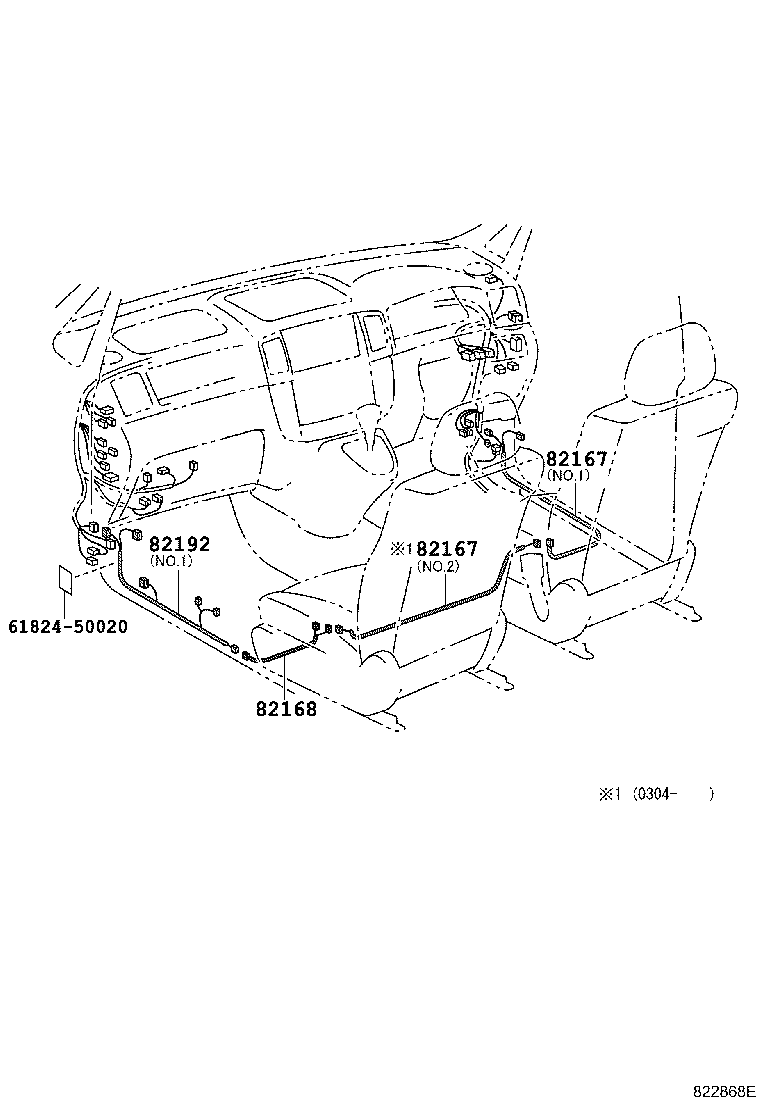

Figure 822868E

822868E 2001-05 → —

Figure 825303A

825303A 2006-10 → —

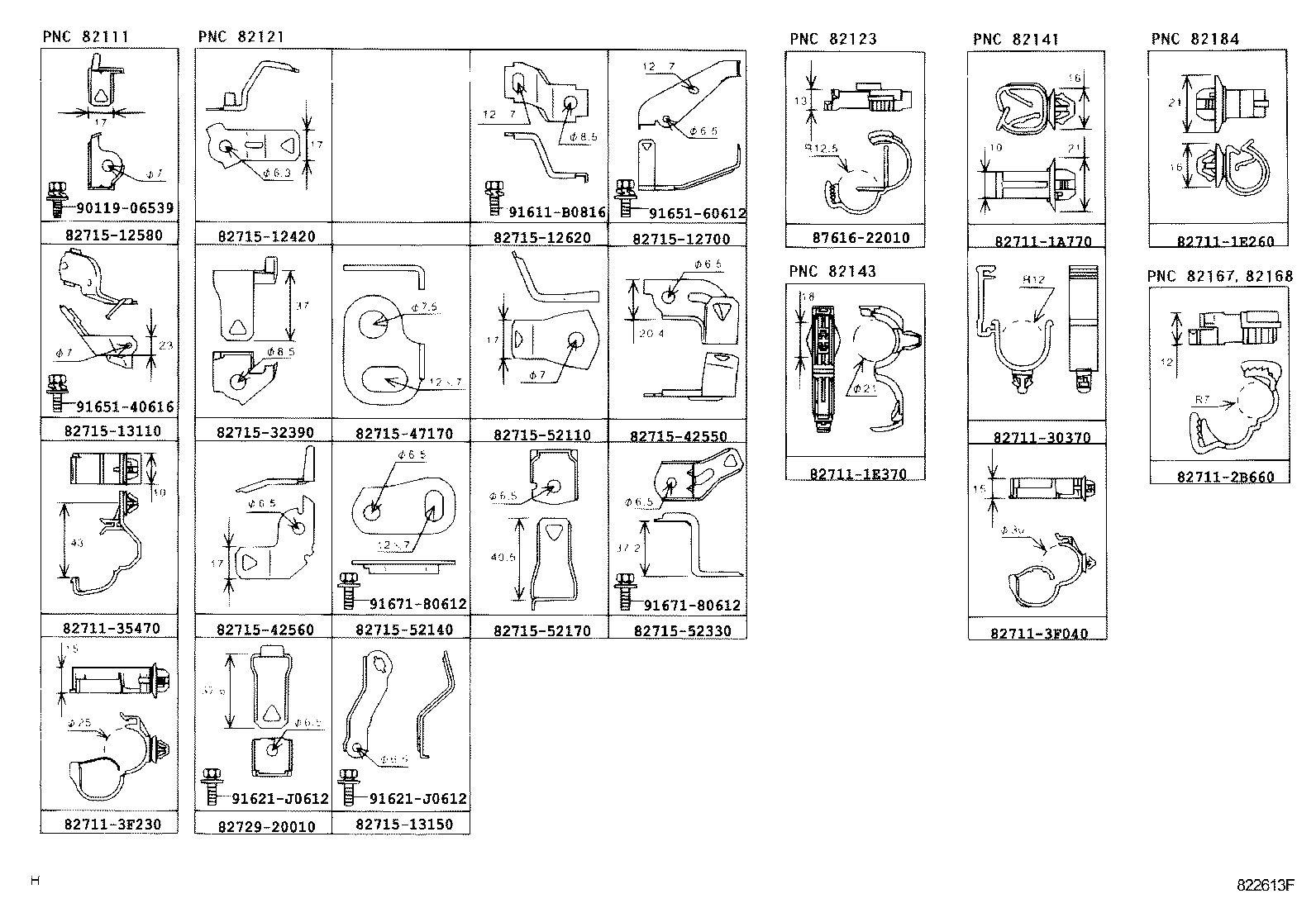

Figure 822613F

822613F 2001-05 → —

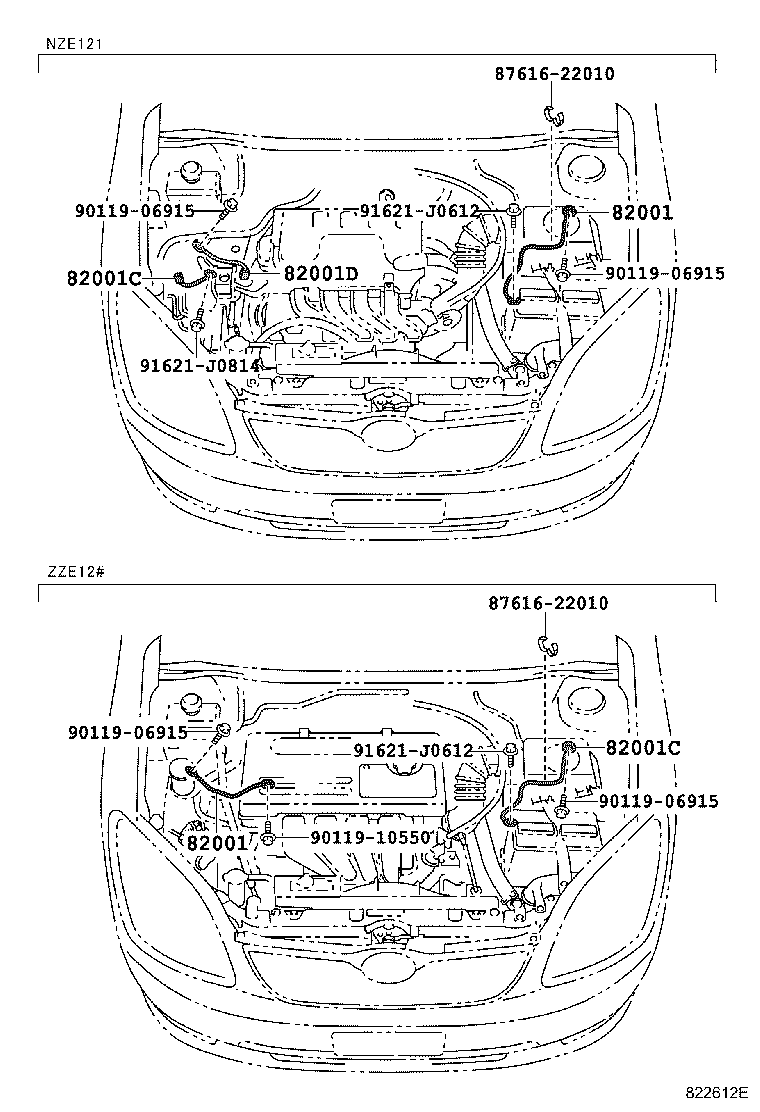

Figure 822612E

822612E 2001-05 → —

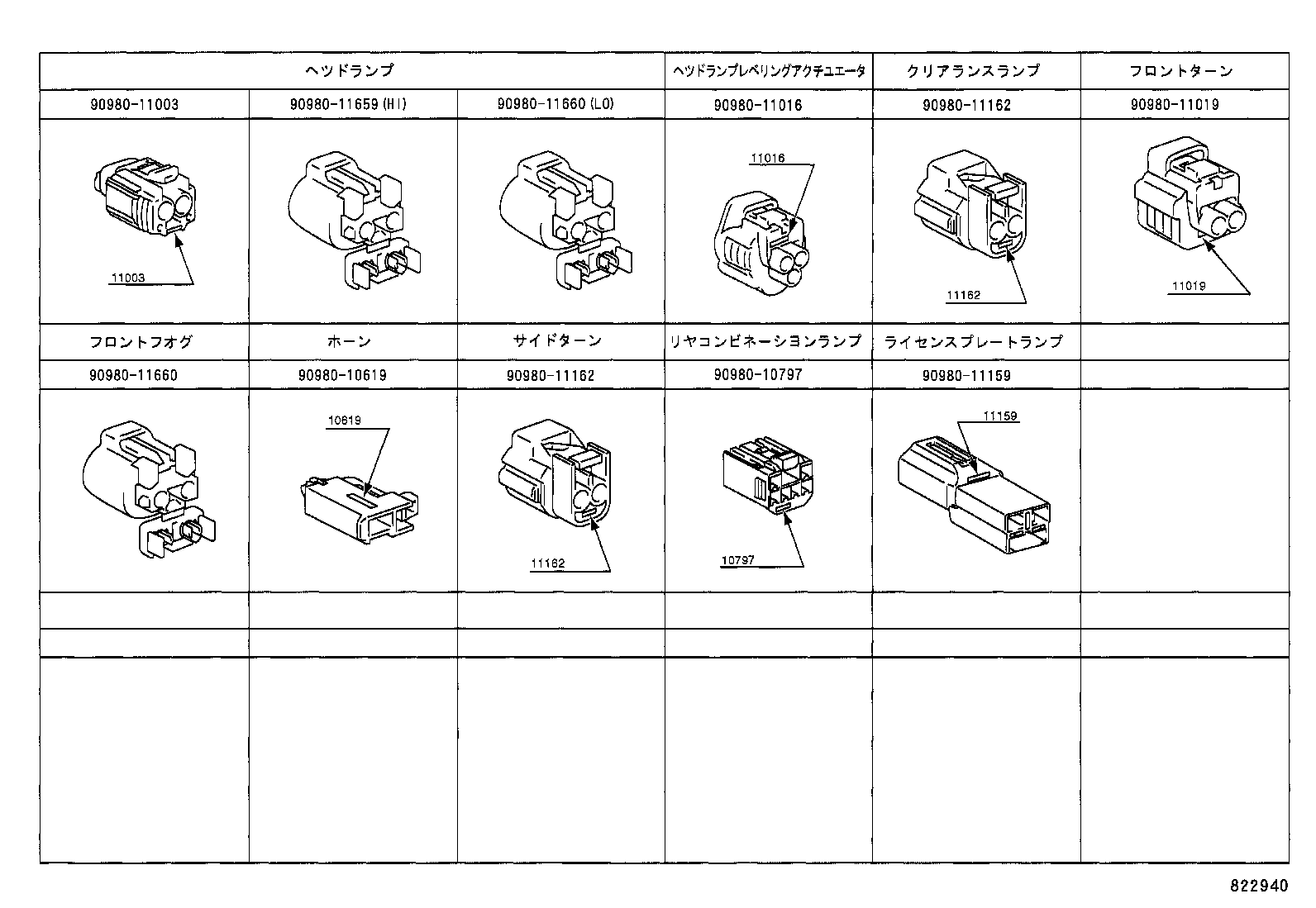

822940 2001-05 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001C	Cable, Bond, NO.2
82001D	Cable, Bond, NO.3
82111	Wire, Engine Room Main
82121	Wire, Engine
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82141	Wire, Instrument Panel
82143	Wire, Instrument Panel, NO.3
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82166	Wire, Console Box
82167	Wire, Seat, NO.1
82168	Wire, Seat, NO.2
82171	Wire, Roof, NO.1
82176	Wire, Rear Console Box
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82192	Wire, Front Seat, LH
82219A	Wire, Sensor
82219C	Wire, Sensor
82219E	Wire, Sensor
82223	Wire, Switch
82241C	Wire, Relay
82345	Diode
82631A	Holder, Fuse
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666D	Holder, Connector NO.5
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82671	Block, Junction
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal
82991	Wire, Fusible Link Repair

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
