Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

97 part groups · 9 illustrations

Illustrations

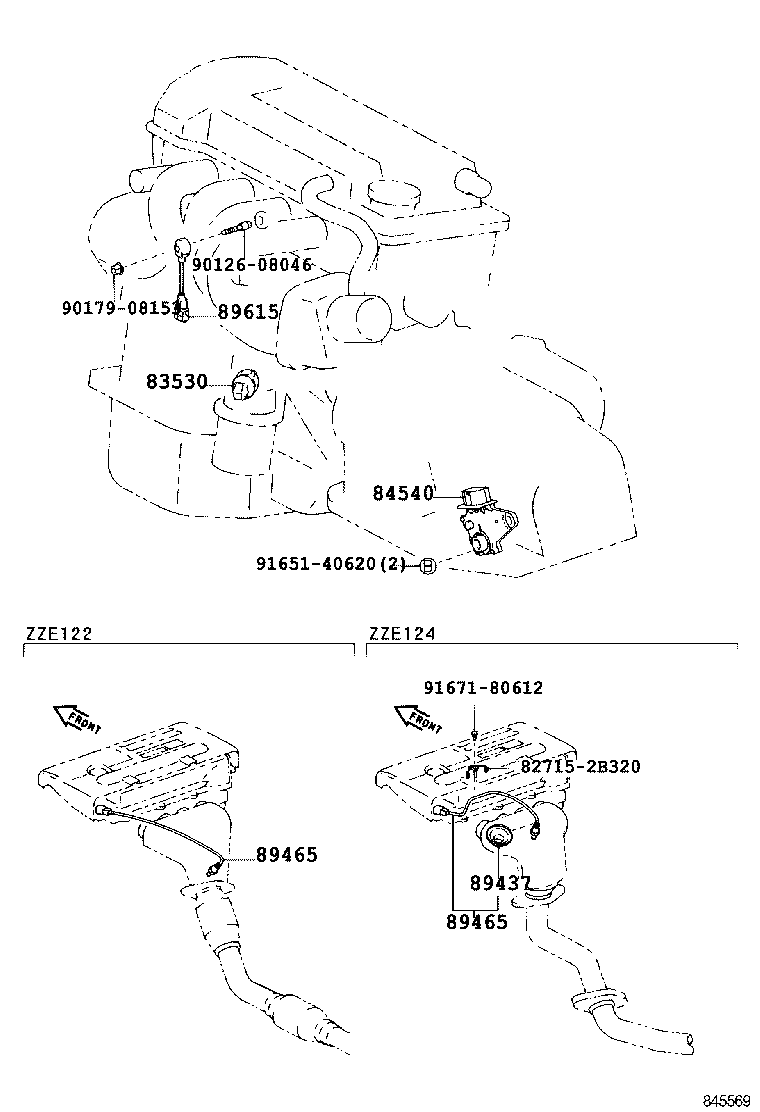

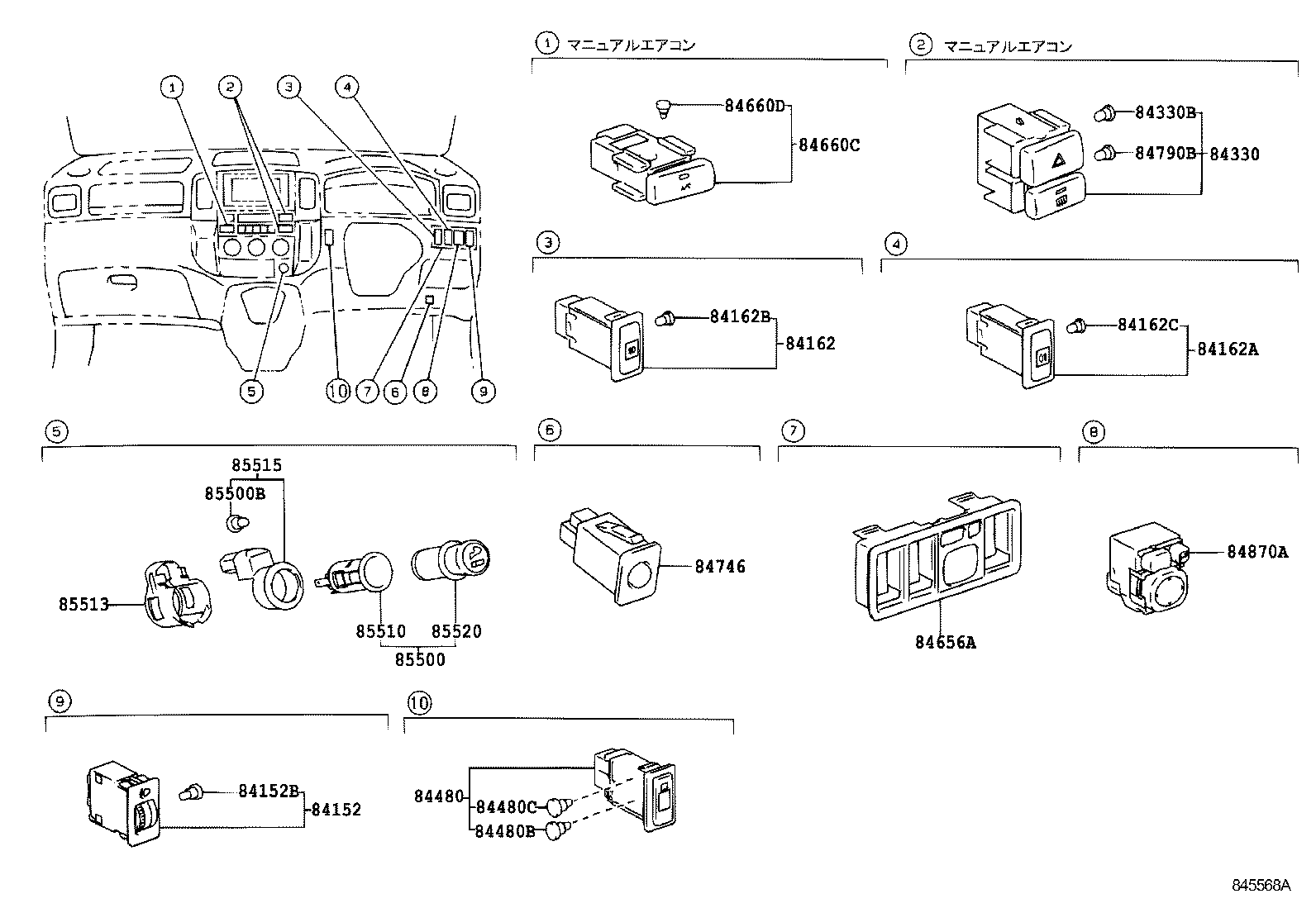

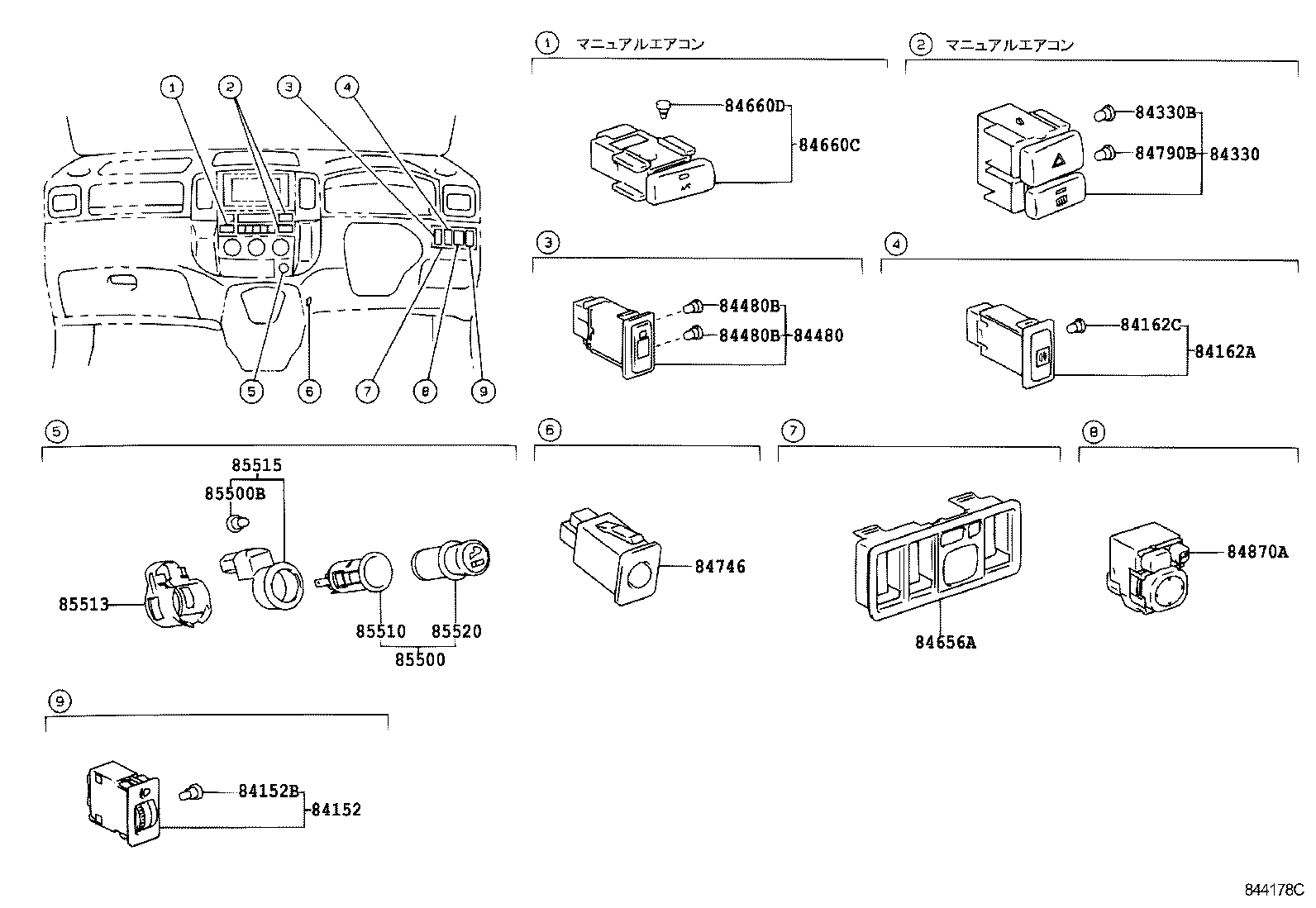

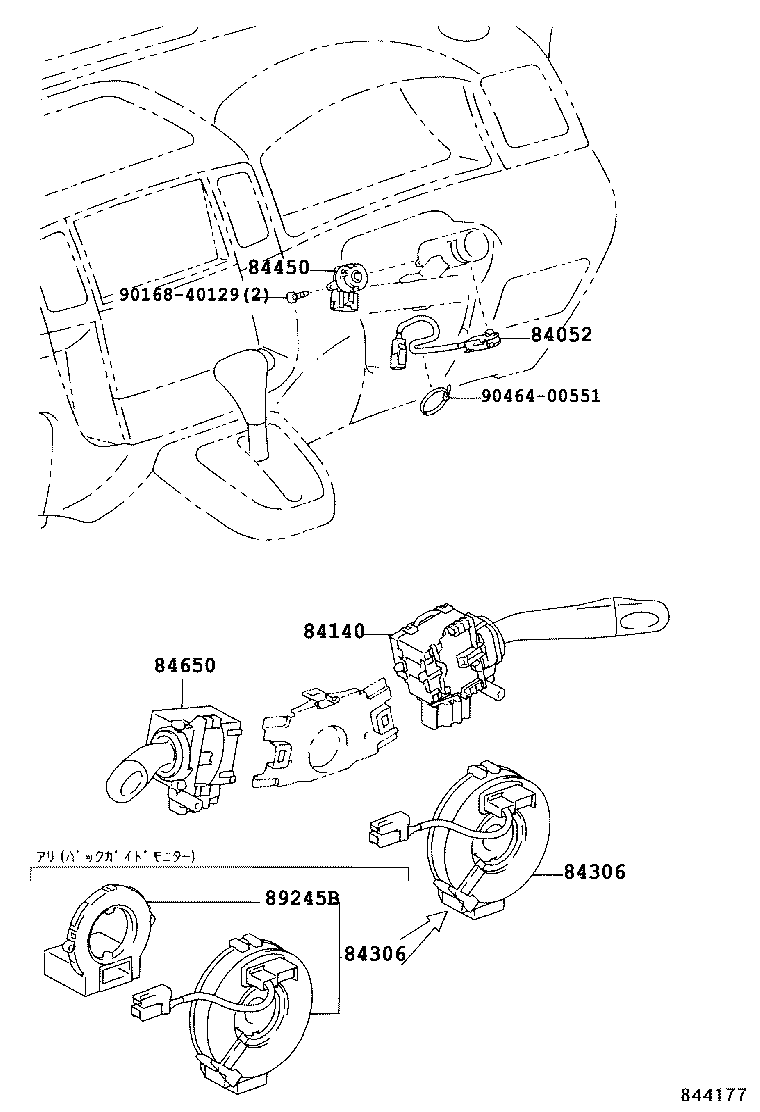

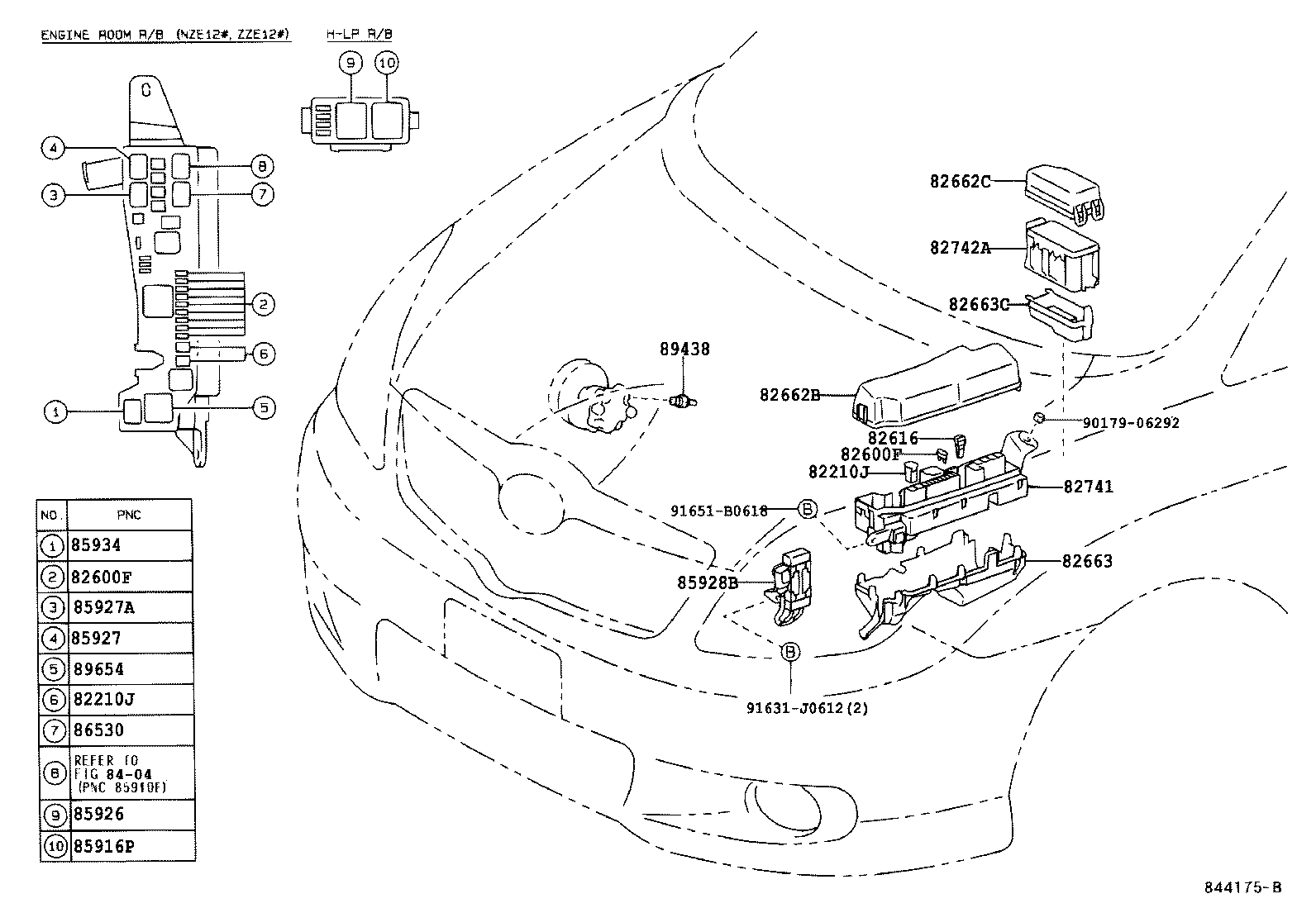

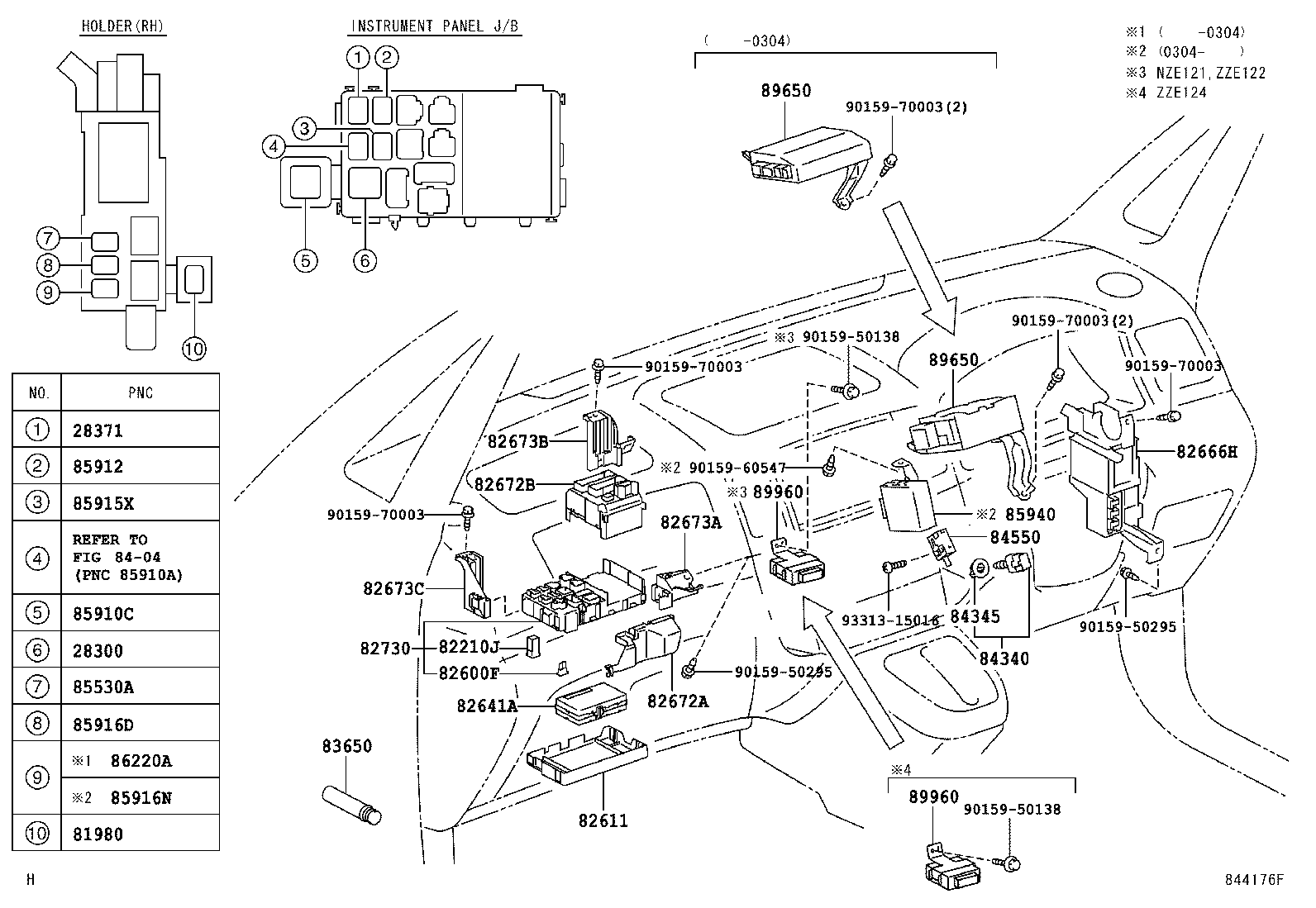

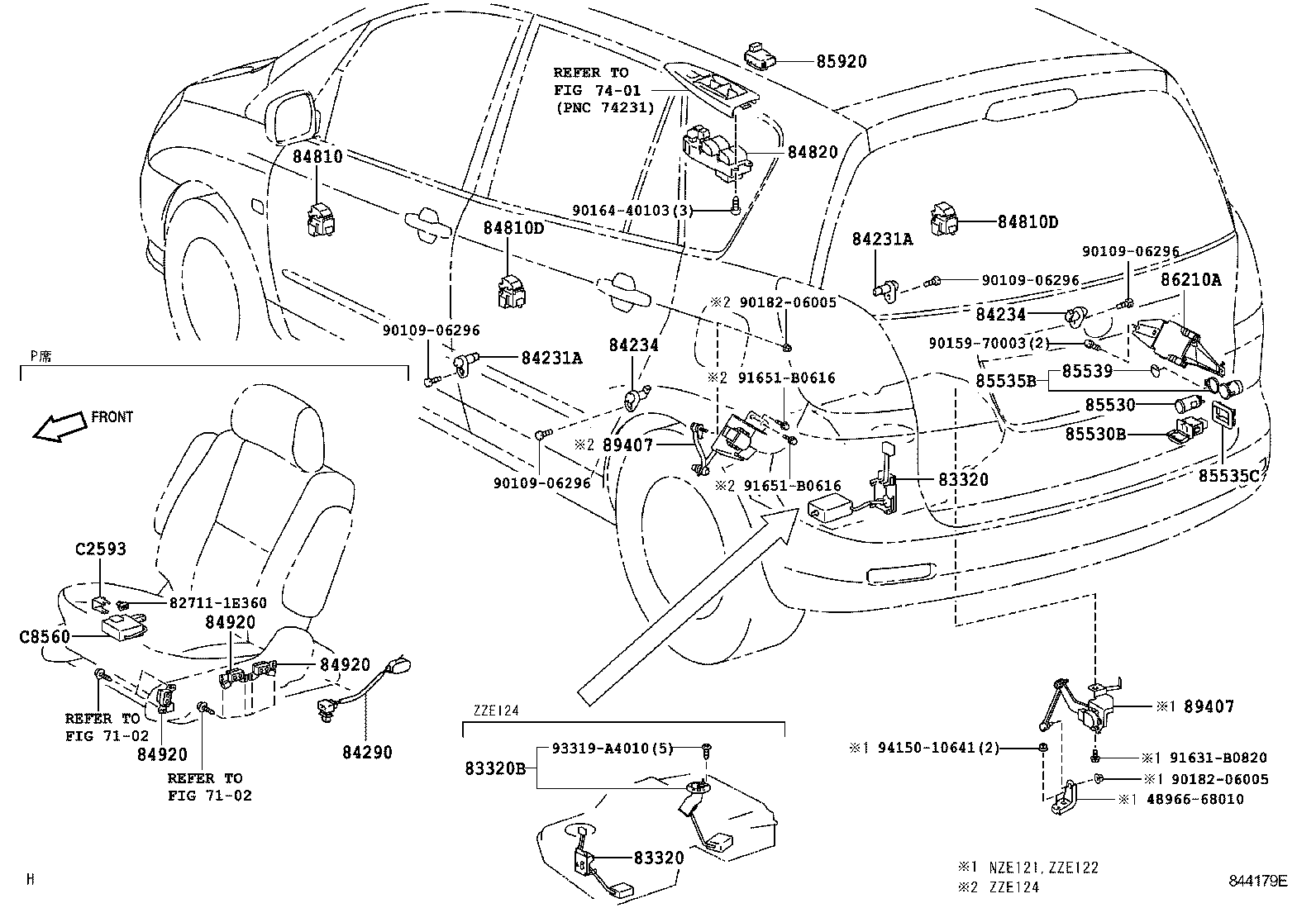

Figure 844181 844181 2001-05 → 2003-04 Figure 845569A 845569A 2003-04 → — Figure 844180A 844180A 2001-05 → — Figure 844175B 844175B 2001-05 → — Figure 844176F 844176F 2001-05 → — Figure 844177 844177 2001-05 → — Figure 844178C 844178C 2001-05 → 2003-04 Figure 845568A 845568A 2003-04 → — Figure 844179E 844179E 2001-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82611 Cover, Fuse Block
82616 Puller, Fuse
82641A Relay, Integration W/Door Control
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663C Cover, Relay Block Lower, NO.4
82666H Holder, Connector, NO.2
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742A Block, Engine Room Relay, NO.5
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84231A Switch, Courtesy Lamp
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84290 Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480B Bulb, Main Switch Assy
84480C Cap Bulb, Main Switch Assy
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84746 Switch, Tire Pressure Warning
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539 Label, Power Outlet Notice
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85915X Relay, Power Control
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85920 Relay & Switch Assy, Sliding Roof
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
89245B Sensor, Steering
89407 Sensor Sub-assy, Height Control, Rear RH
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89960 Computer Assy, Headlamp Leveling
C2593 Bracket, Wireless Box, FR
C8560 Relay Assy, Lifter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
