Toyota Corolla Spacio

2001-05 → 2007-06 · chassis NZE121,ZZE12# · catalogue 154150 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 2 illustrations

Illustrations

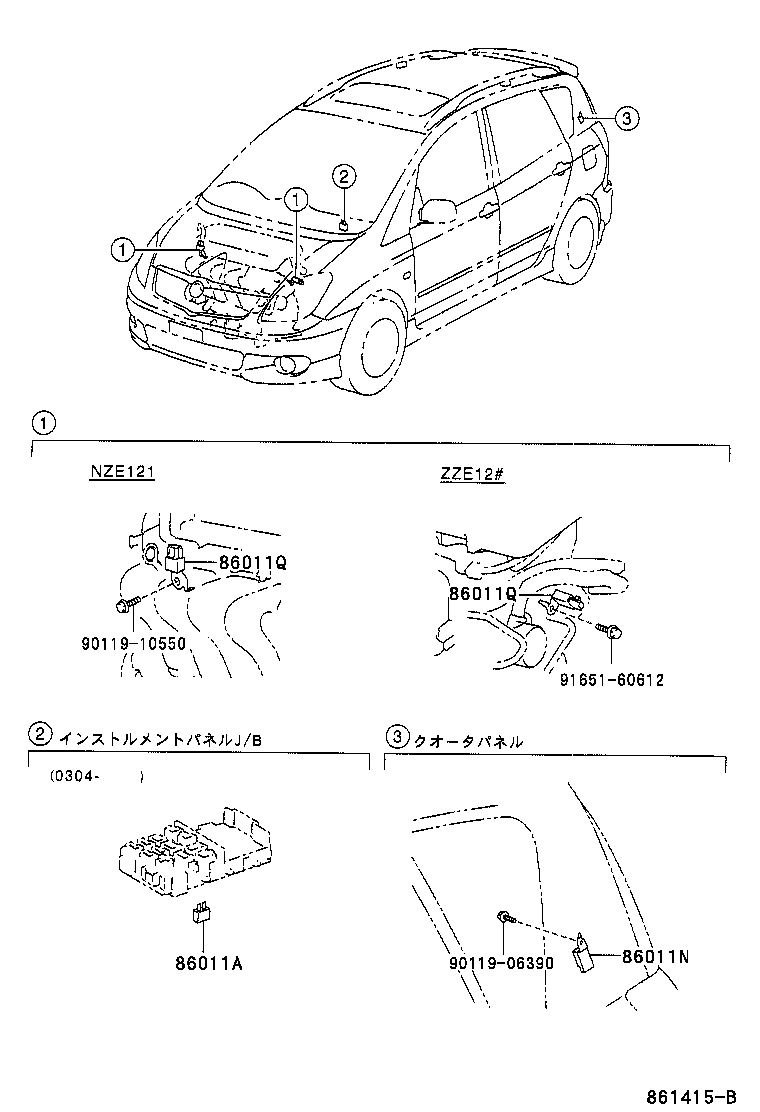

Figure 861414 861414 2001-05 → — Figure 861415B 861415B 2001-05 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011N Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
