Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

16 part groups · 4 illustrations

Illustrations

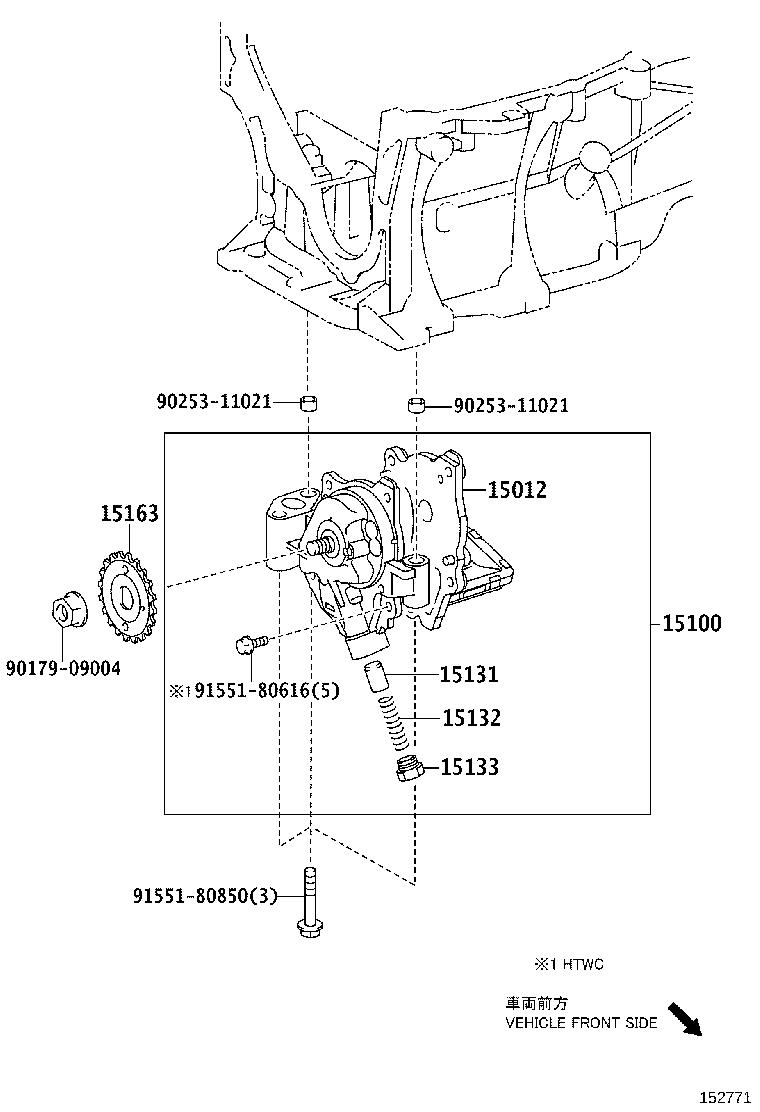

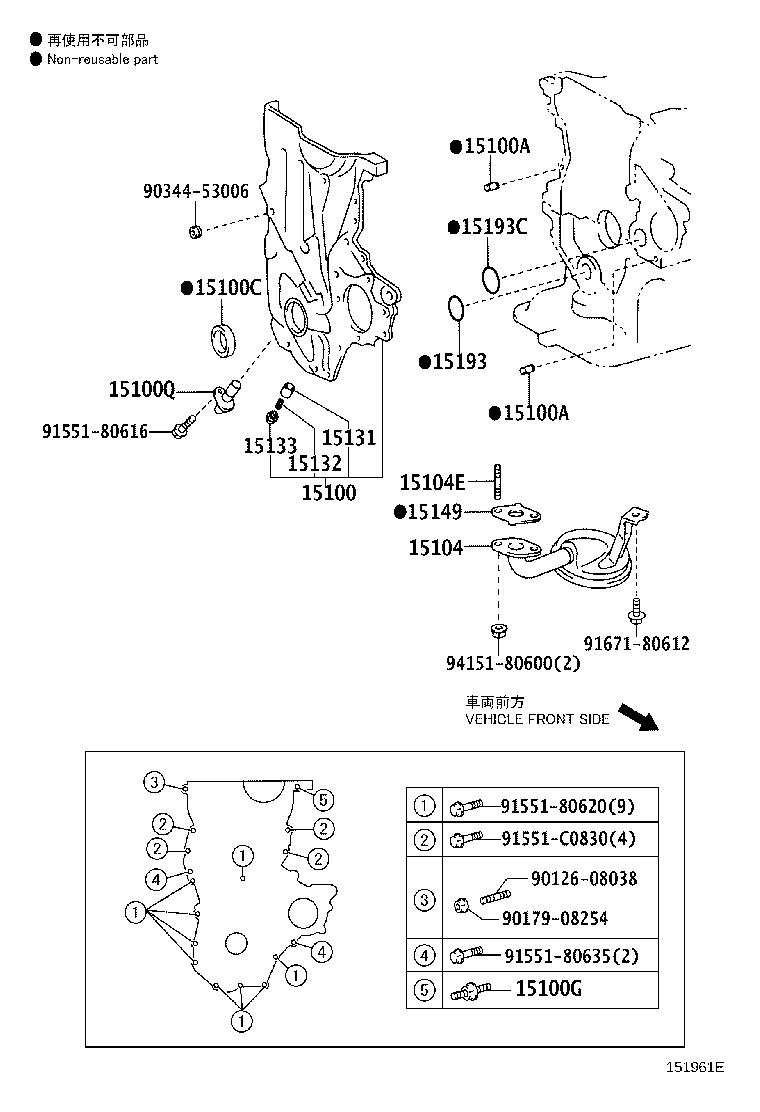

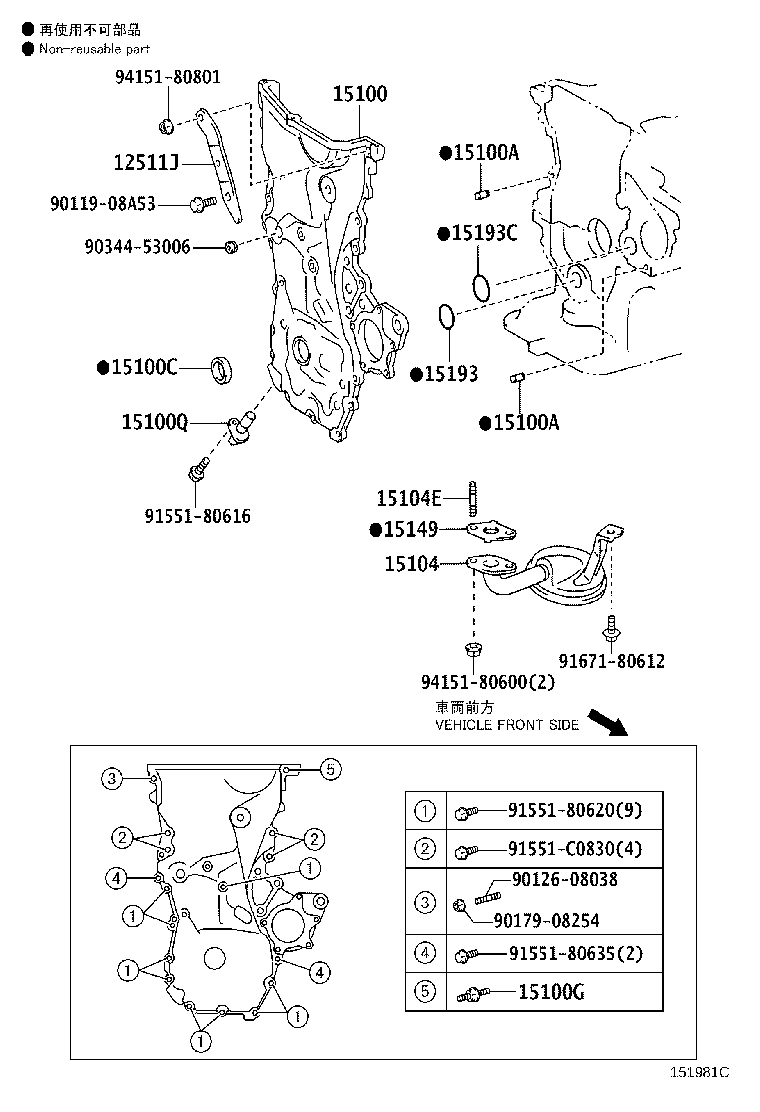

Figure 151401E 151401E 2007-10 → 2012-04 Figure 151961E 151961E 2012-04 → 2013-01 Figure 151981C 151981C 2013-01 → — Figure 152771 152771 2007-10 → —

Part groups

PNCDescription
12511J Bracket, Alternator
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100C Seal(FOR OIL PUMP)
15100G Bolt,Stud(FOR OIL PUMP)
15100Q Sensor, Crank Position
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
15193C Gasket, Oil Pump NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
