Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 9 illustrations

Illustrations

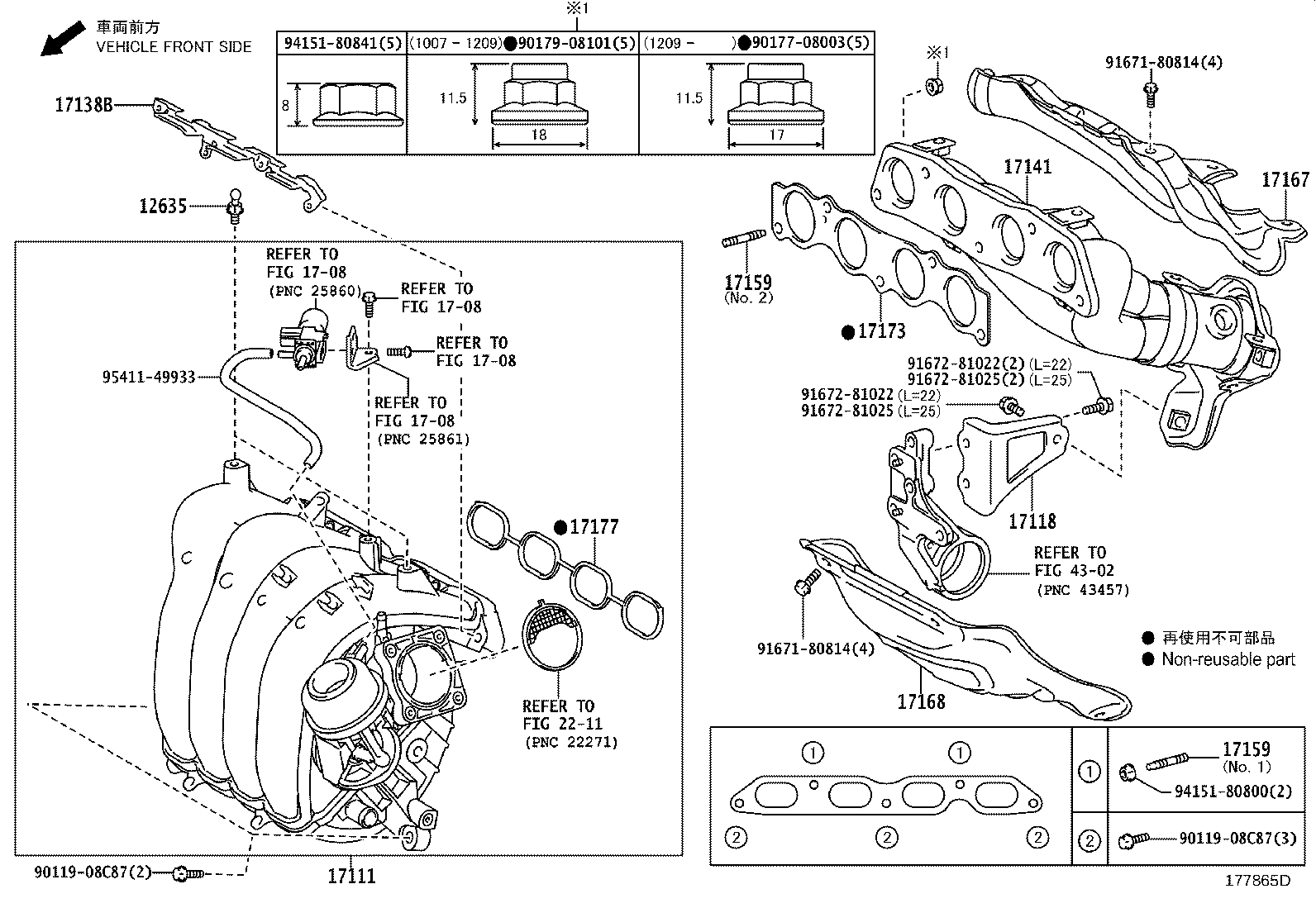

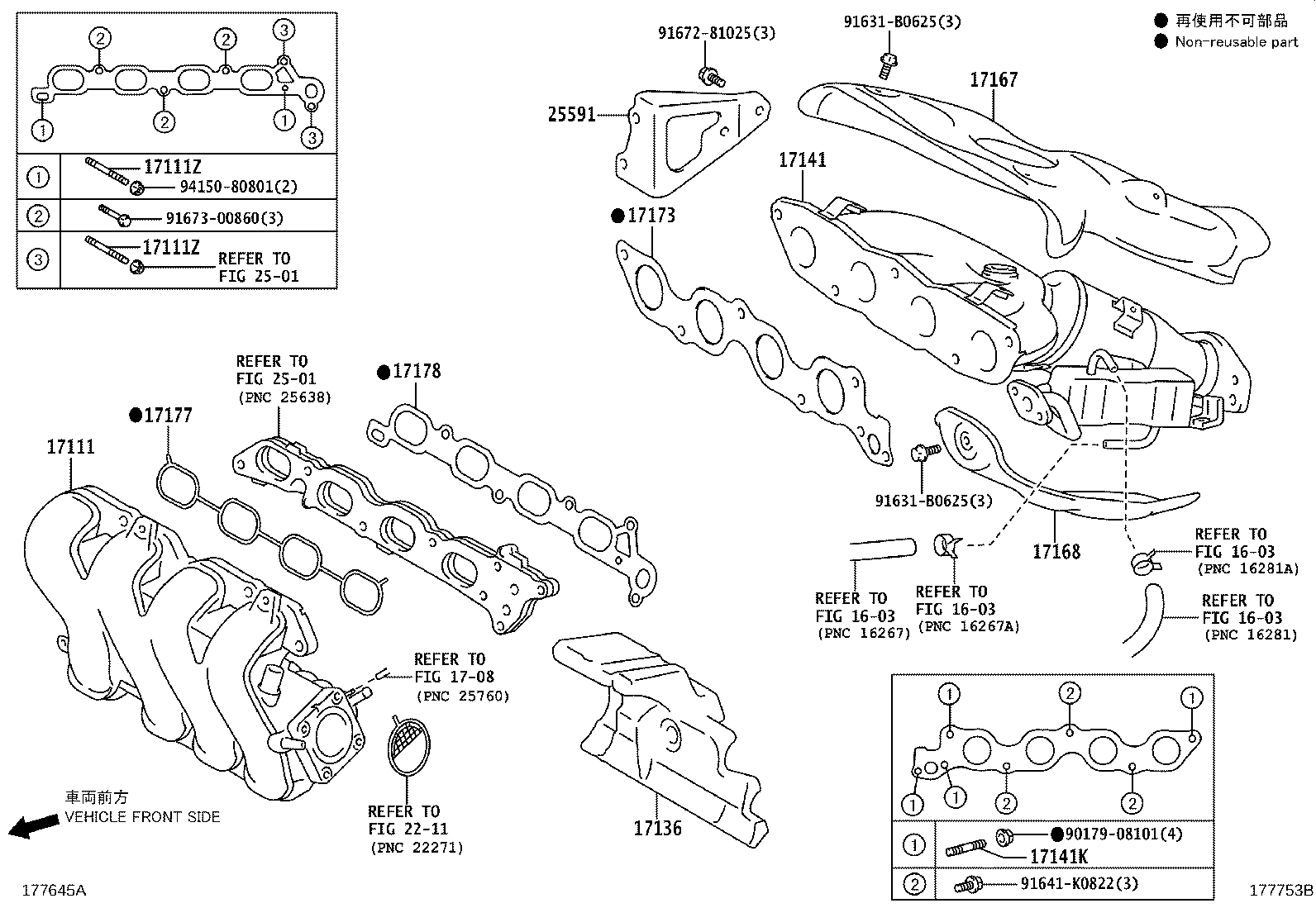

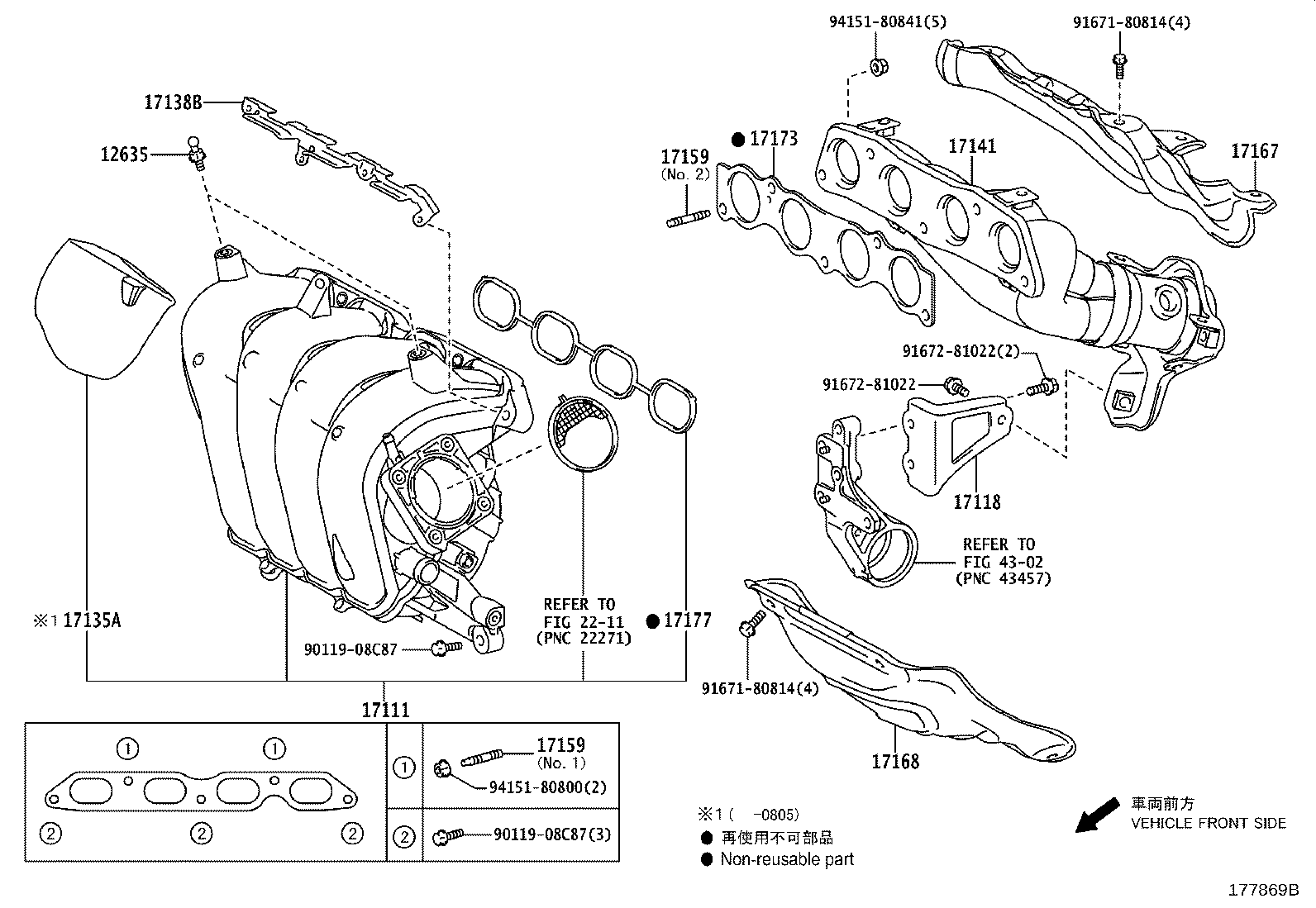

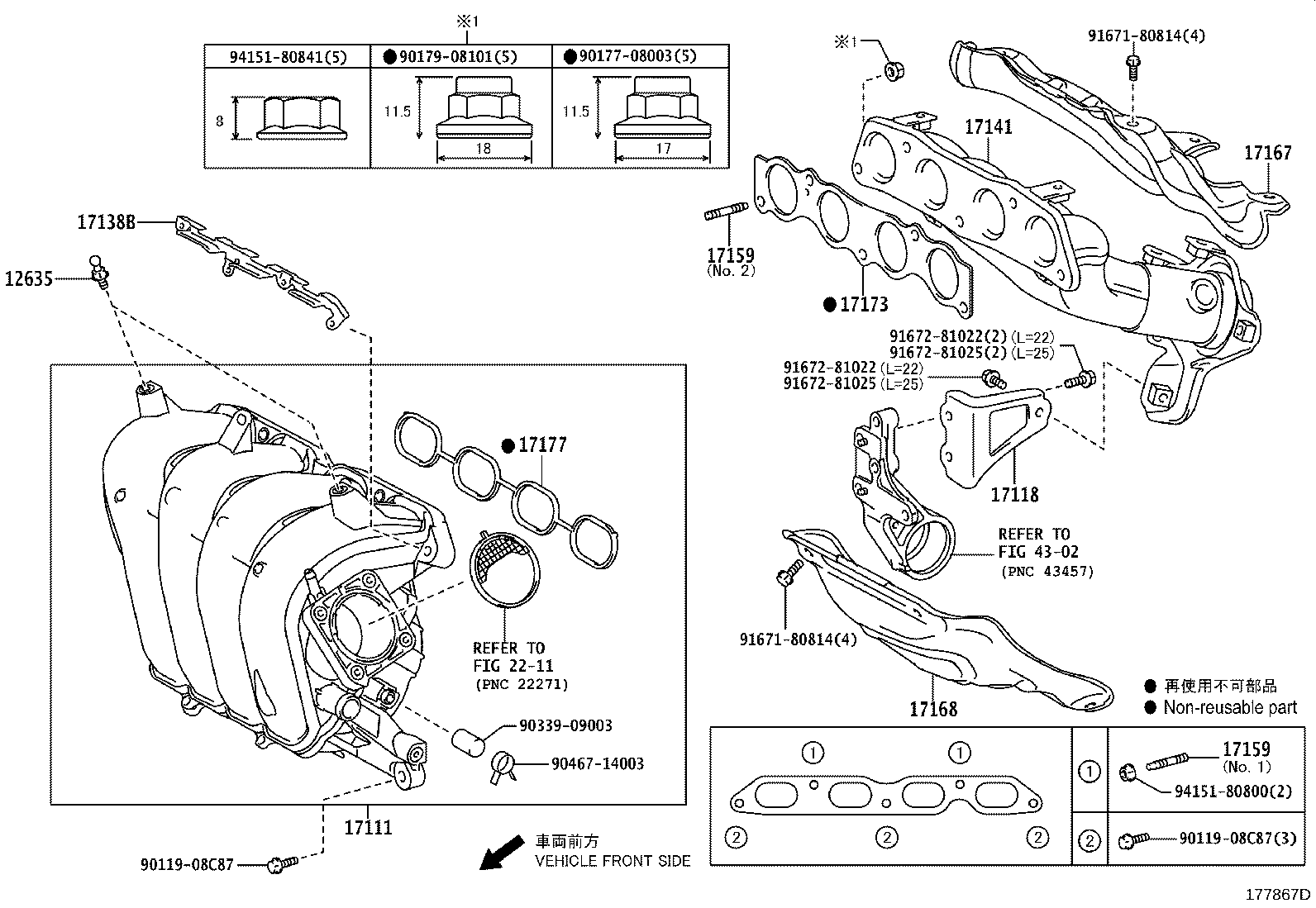

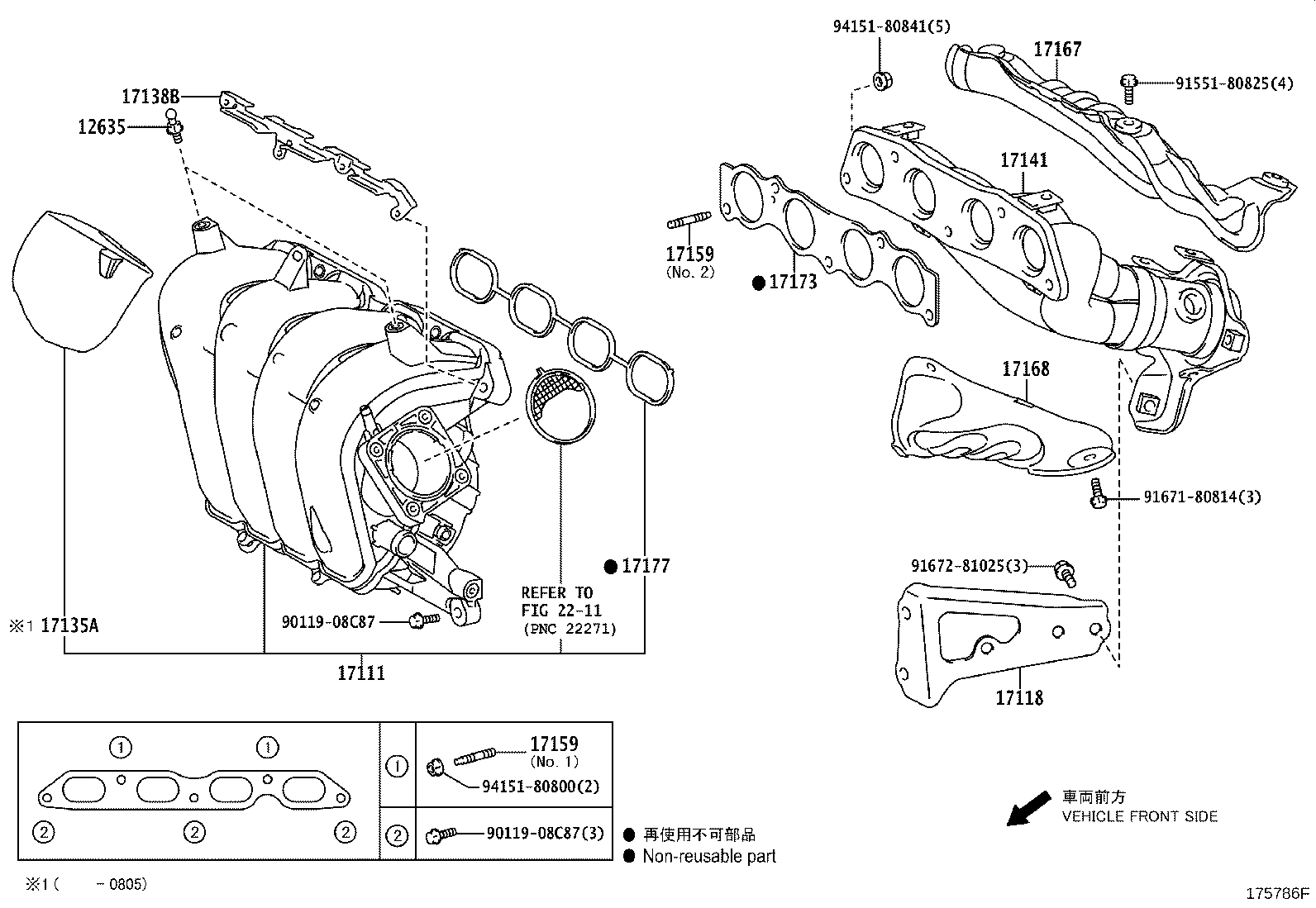

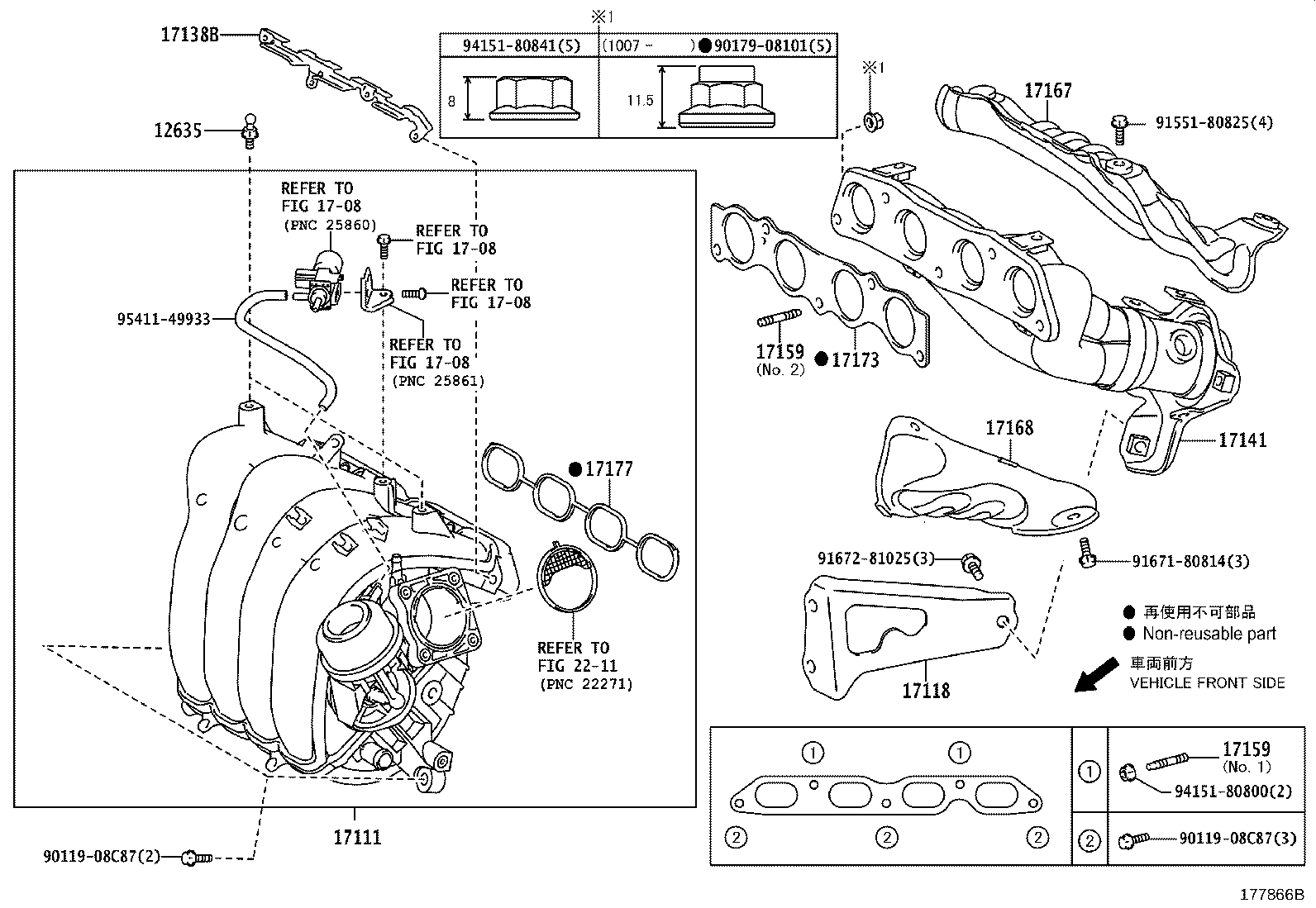

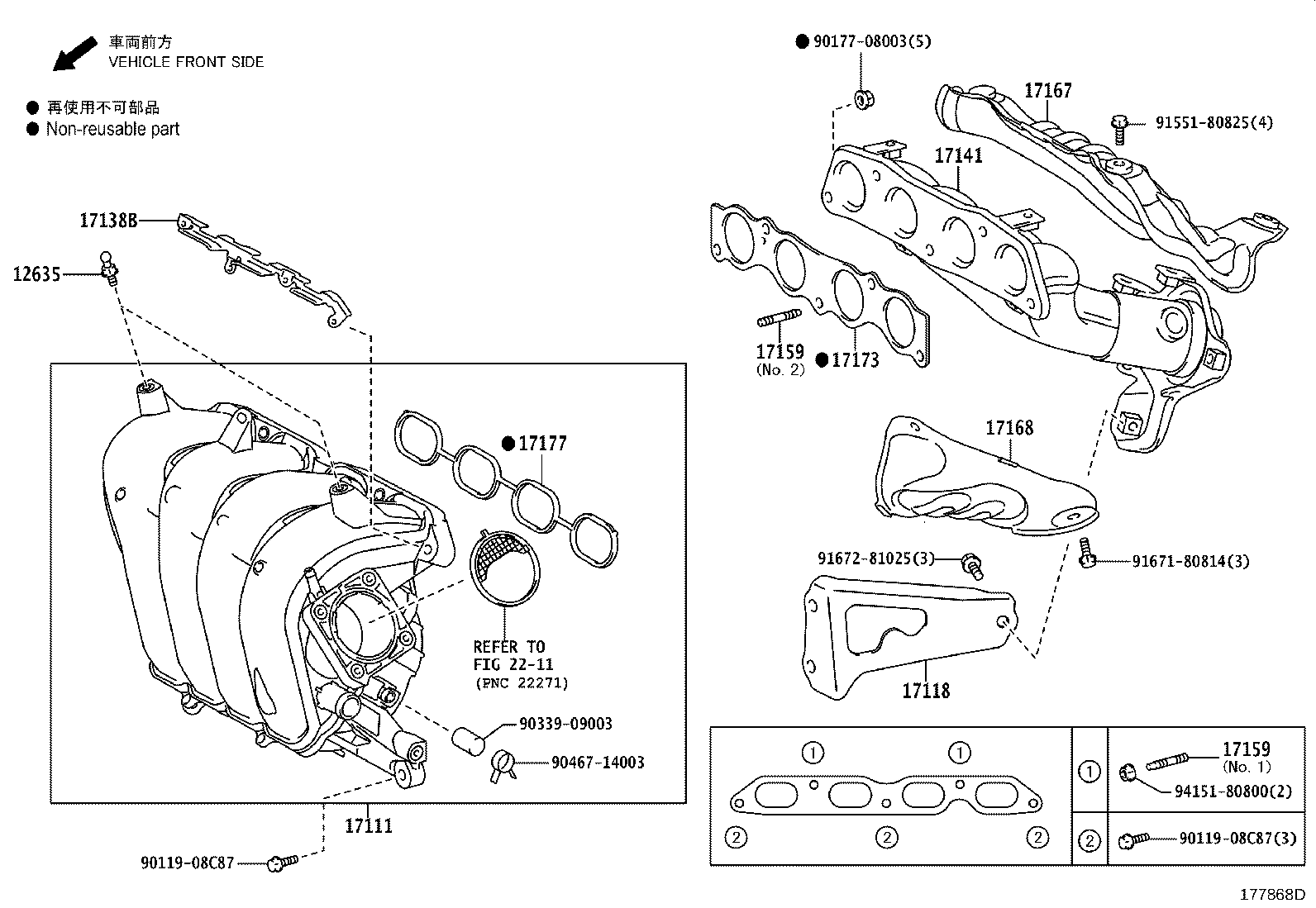

Figure 177752B 177752B 2007-10 → 2013-01 Figure 177753B 177753B 2013-01 → — Figure 175786F 175786F 2007-10 → 2009-12 Figure 177869B 177869B 2007-10 → 2009-12 Figure 177866B 177866B 2009-12 → 2012-12 Figure 177865D 177865D 2009-12 → 2012-12 Figure 177865D 177865D 2009-12 → 2013-01 Figure 177868D 177868D 2012-12 → — Figure 177867D 177867D 2012-12 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
