Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

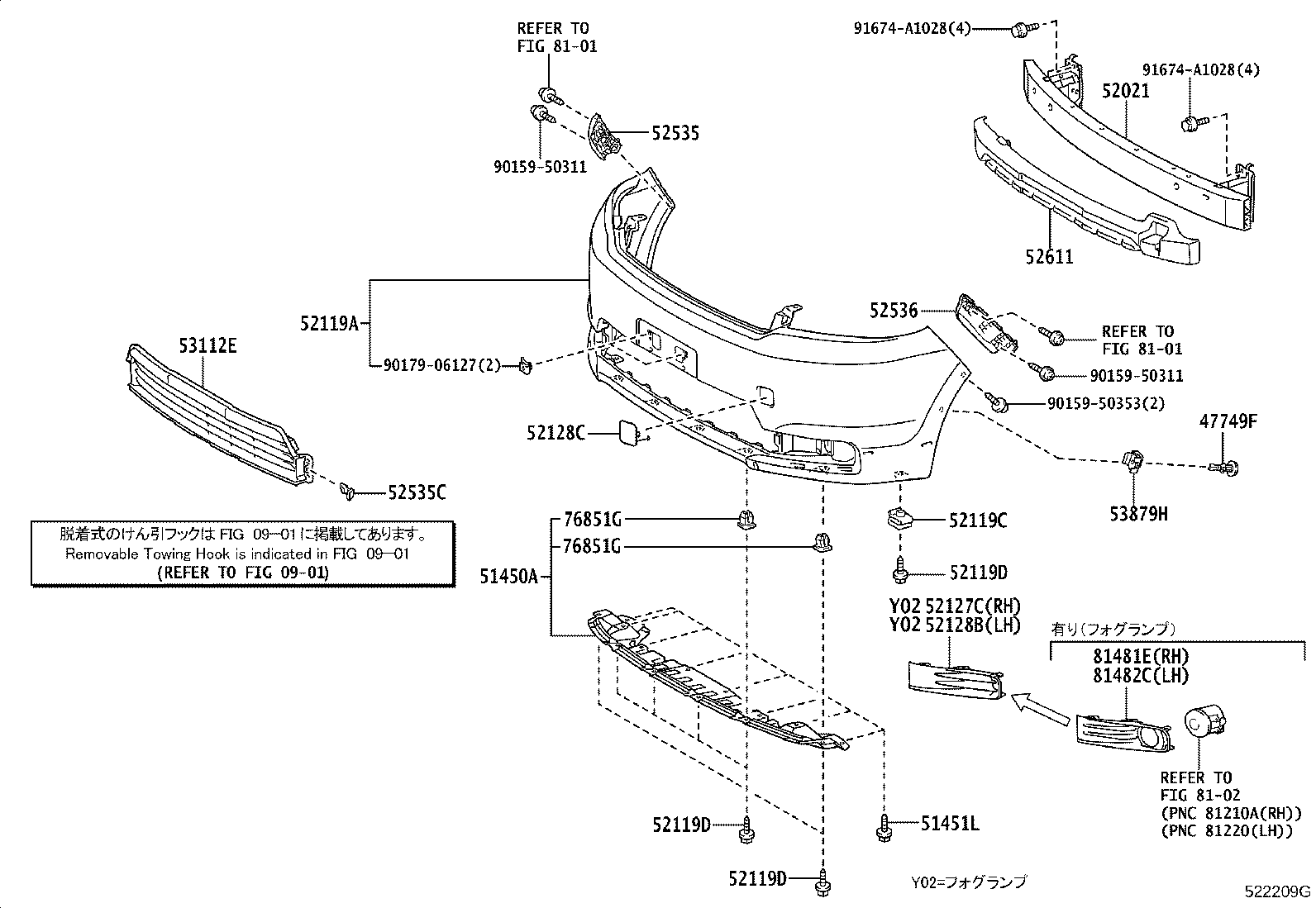

Figure 521845H 521845H 2007-10 → 2009-12 Figure 522209G 522209G 2009-12 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51450A Cover Assy, Transmission Under, Center
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
